30T Horizontal Hydraulic Baler Machine | For Waste Paper, Plastic & Oil Drum Recycling

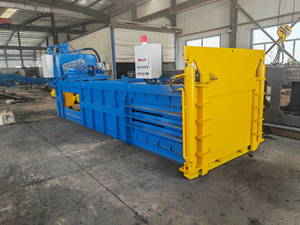

30T Horizontal Hydraulic Baler – Multi-Purpose Compactor for Oil Drums & Waste Recycling

This 30-ton horizontal hydraulic baler is our best-selling and most versatile model, specially engineered to handle both soft recyclables and empty oil drums. With a powerful double-cylinder system, it delivers consistent 30-ton compression force to turn bulky materials into dense, manageable bales, drastically reducing storage and transportation costs.

Ideal for recycling centers, manufacturing plants, logistics facilities and waste management companies, this machine balances high performance, low maintenance and affordable cost, making it the perfect choice for your daily waste handling needs.

✅ 30T Strong Compression Force

Equipped with twin hydraulic cylinders, the machine provides stable 30-ton pressure, capable of compressing empty oil drums (200L/55gal) into flat, compact bales, while also handling waste paper, cardboard, plastic film and other soft materials efficiently.

✅ Heavy-Duty Structure for Durability

Built with a reinforced frame and high-strength steel plates, this baler is designed to withstand long-term use with oil drums and heavy materials. UK-brand sealing parts extend the service life of the cylinders, minimizing leakage and maintenance.

✅ Safe & Simple Operation

Manual valve control with clear operation steps, easy to learn for any operator. Separate feeding opening design ensures hands stay away from the compression zone, greatly improving workplace safety.

✅ Wide Range of Applications

Not limited to paper and plastic – it’s also widely used for compressing empty steel oil drums, paint buckets, aluminum cans and light scrap metal, meeting multiple recycling needs with one machine.

✅ Low Maintenance & Long Service Life

Conical, gasket-free oil pipe joints eliminate leakage. Taiwanese-brand stackable valve group ensures stable hydraulic performance. Direct motor-pump connection guarantees full concentricity, extending pump life.

✅ Cost-Effective & Compact Design

With a compact footprint of 1100×1200×2800mm, it fits well in most standard industrial spaces. High cost-performance ratio makes it the preferred choice for small-to-medium-sized recycling operations.

✅ Full After-Sales Support

12-month factory warranty included. Overseas customers receive video guidance for installation and operation, with 24-hour technical support available.

Applications & Suitable Materials

✅ Suitable Materials:

• Metal: Empty steel oil drums (200L), paint buckets, aluminum cans, light scrap metal

• Soft Recyclables: Waste paper, cardboard, cartons, plastic film, woven bags, PET bottles, textiles

✅ Typical Users:

• Oil refineries and chemical plants (oil drum disposal)

• Waste recycling centers and scrap yards

• Manufacturing factories with packaging waste

• Printing houses, supermarkets, logistics companies

Technical Specifications (30T Model)

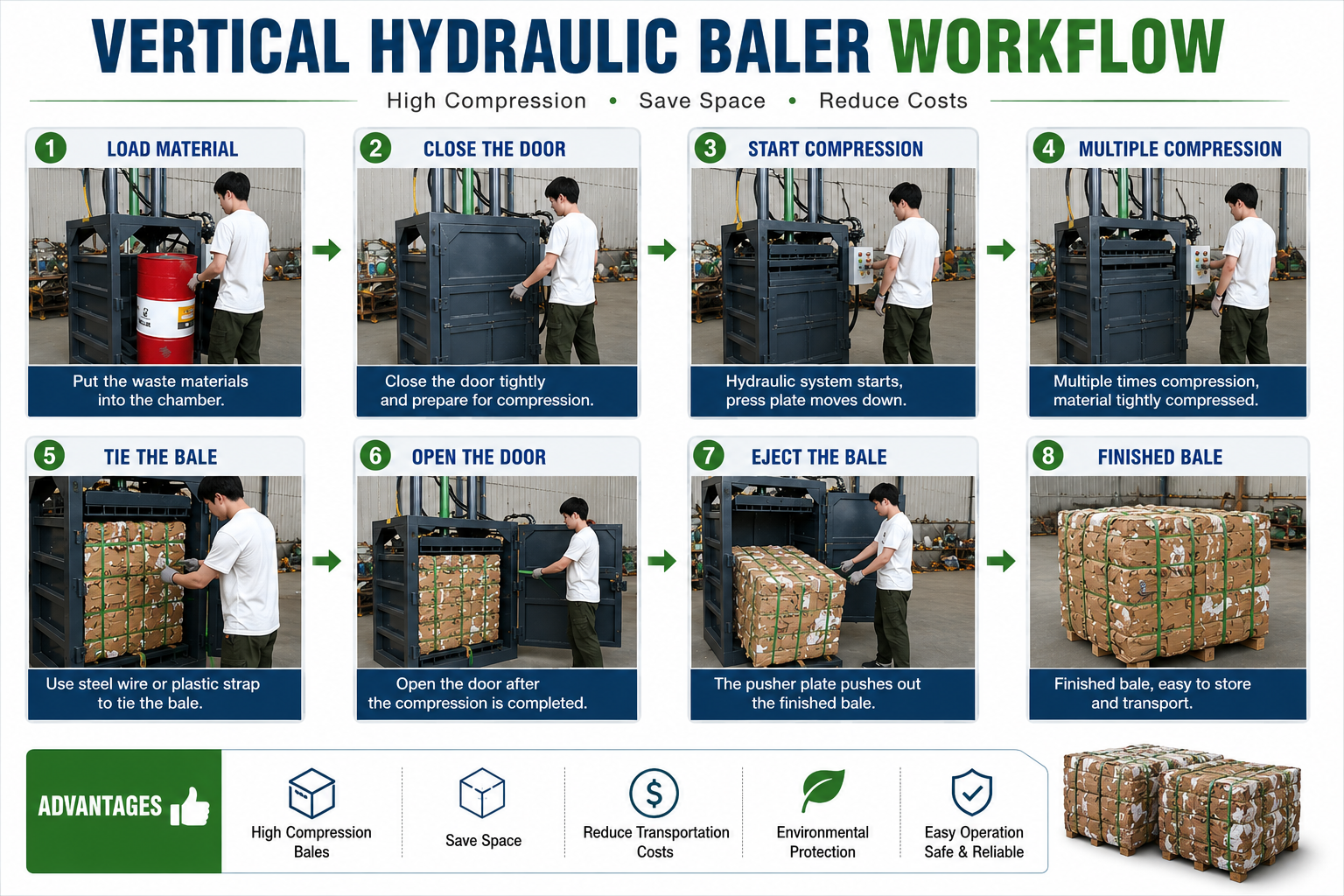

Working Process

High Compression • Save Space • Reduce Costs

1. LOAD MATERIAL

   Put waste materials (oil drums, waste paper, plastic, etc.) into the feeding opening manually or via conveyor.

2. START COMPRESSION

   The hydraulic system starts, the cylinder pushes the platen forward to compress the material step by step.

3. MULTIPLE COMPRESSION

   Multiple times compression, material is tightly pressed into a dense bale of standard size.

4. TIE THE BALE

   Thread steel wire or plastic strap through the reserved holes to bind the bale tightly.

5. OPEN THE DISCHARGE DOOR

   Open the discharge door after compression and strapping are completed.

6. EJECT THE BALE

   The pusher plate pushes out the finished bale.

7. FINISHED BALE

   Compact finished bales, easy to store and transport.

Optional Configurations & Customization

• Higher pressure models available: 40T / 50T / 160T

• Automatic PLC control and auto-tie system upgrade

• Custom voltage/frequency for different regions (415V / 440V, etc.)

• Matching conveyor and feeding system for continuous operation

• Custom bale size to meet your specific requirements

Why Choose Us?

• Professional baler manufacturer with over 10 years of experience

• All machines are strictly tested before delivery for quality assurance

• We provide tailored solutions based on your material and output needs

• Factory direct price, no middleman markup

• Fast response to inquiries and reliable after-sales service

Contact Us

If you need more details, a quotation or a customized solution for your oil drum or waste recycling project, feel free to contact us anytime.
