60T Semi-automatic Horizontal Hydraulic Baler with Lift-up Gate

The baler is suitable for packaging waste paper , cotton, straw, pasture, clothing, plastic, wool and other recyclable garbage.It can also be used for cotton, wool ,waste paper boxes, waste cardboard, yarn, tobacco, plastic,cloth,Woven bags, knitted velvet,hemp, sack,wool tops, hair balls,cocoons,silk,hops, waste plastic bags and other soft materials, it reduces the volume and facilitates packaging, improves labor efficiency,reduces labor intensity, saves manpower, transportation, and reduces storage. Put space. It is an ideal equipment for materials packaging, waste recycling and other industries.

Quantity:
Availability:





Inquire Add to Basket

Model:
SX-60T
Brand:
Sxbaler

Product Description

60T Semi‑automatic Horizontal Hydraulic Baler, Lift‑up Gate

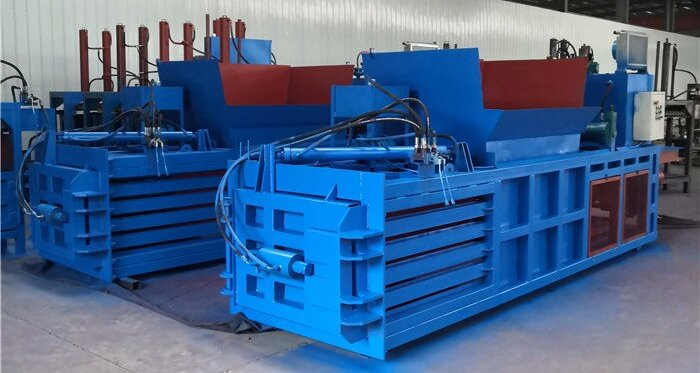

Horizontal-Automatic-Waste-Paper-Cardboard-Baler-for-Paper-Mill

Many small‑size recycling stations are troubled by bulky loose waste paper and woven‑bag scraps: loose scraps occupy large warehouse space and lead to high logistics cost. Our 60T semi‑automatic horizontal hydraulic baler with lift‑up gate is an economical entry‑level solution specially designed for small‑and‑medium recyclers. It compresses loose soft waste into dense bales, effectively cuts storage space and raises the selling value of recycled materials. This model adopts lift‑up gate structure with manual rope threading, equipped with PLC system and wireless remote controller for easy daily operation.

Core Advantages

General Strengths

Great cost‑performance: Lower investment threshold for newly‑built small recycling projects, fast return‑on‑investment.
Convenient bale discharge: Lift‑up gate design makes finished bale pushing‑out simple and safe.
Human‑friendly operation: PLC touch screen plus wireless remote control; workers can finish operation away from the machine.
Stable hydraulic performance: High‑quality cartridge valve matched with water‑cooling system, supports long‑time continuous working without overheating.
Heavy welded frame: Anti‑fatigue steel structure, resists frequent hydraulic impact and extends machine service life.

Model‑Exclusive Advantages for 60T Semi‑auto

Compact overall dimension, suitable for factory workshops with limited site space.
Matched belt feeding conveyor with frequency converter, feeding speed adjustable according to raw material condition.
Simple maintenance, few wearing parts, low daily operating cost.

Technical Parameters

Item	Specification
Model	60T Semi‑auto Lift‑up Gate
Bale Size	1000×800×(800‑1500)mm adjustable
Bale Weight	400‑450kg
Throughput	5 bales/hour (actual output depends on raw material & feeding)
Main Motor	18.5kW
Cylinder	Bore 180mm, outer 220mm, stroke 3.5m
Feeding Opening	1120×1500mm
Conveyor	Belt conveyor 1.5m×6m, H‑steel frame, inverter equipped
Machine Weight	7.5t

Application Scenarios

Small‑scale waste paper recycling stations
Packaging factory waste woven‑bag disposal
Supermarket carton waste treatment
Minor sorting center for soft recyclable waste

Processable waste

Processable Waste Materials

Suitable for horizontal hydraulic baler deployed in recycling stations, paper mills, packaging factories and plastic recycling plants.

It processes waste paper, carton scraps, PP woven bags, plastic sacks and other soft non-metallic recyclables.

Business benefit

After baling, material volume can be reduced by 60%‑70%, greatly lowering truck transportation expense and improving scrap resale income.

FAQ

Q: What materials can this 60T semi‑auto baler handle?A: Waste paper, carton scraps, woven bags and other soft waste materials. Not suitable for hard metal, thick solid plastic.

Q: Is rope threading manual work?A: Yes. The lift‑gate semi‑automatic version requires manual rope threading. It is a cost‑saving choice for low‑to‑medium output demand.

Q: Can we customize voltage for our local power grid?A: Yes, we support custom voltage & frequency to fit different‑country industrial power standards.
