Product Overview

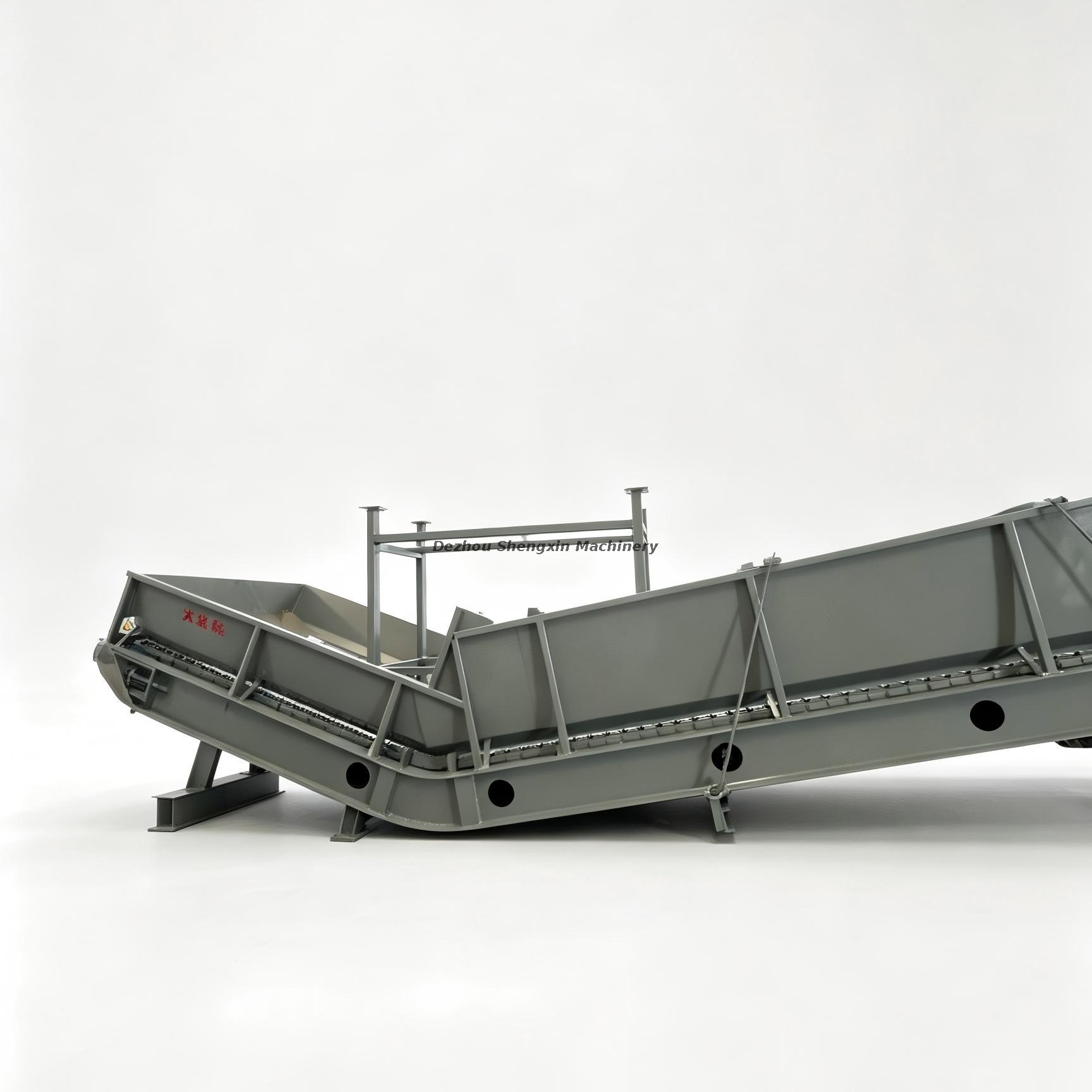

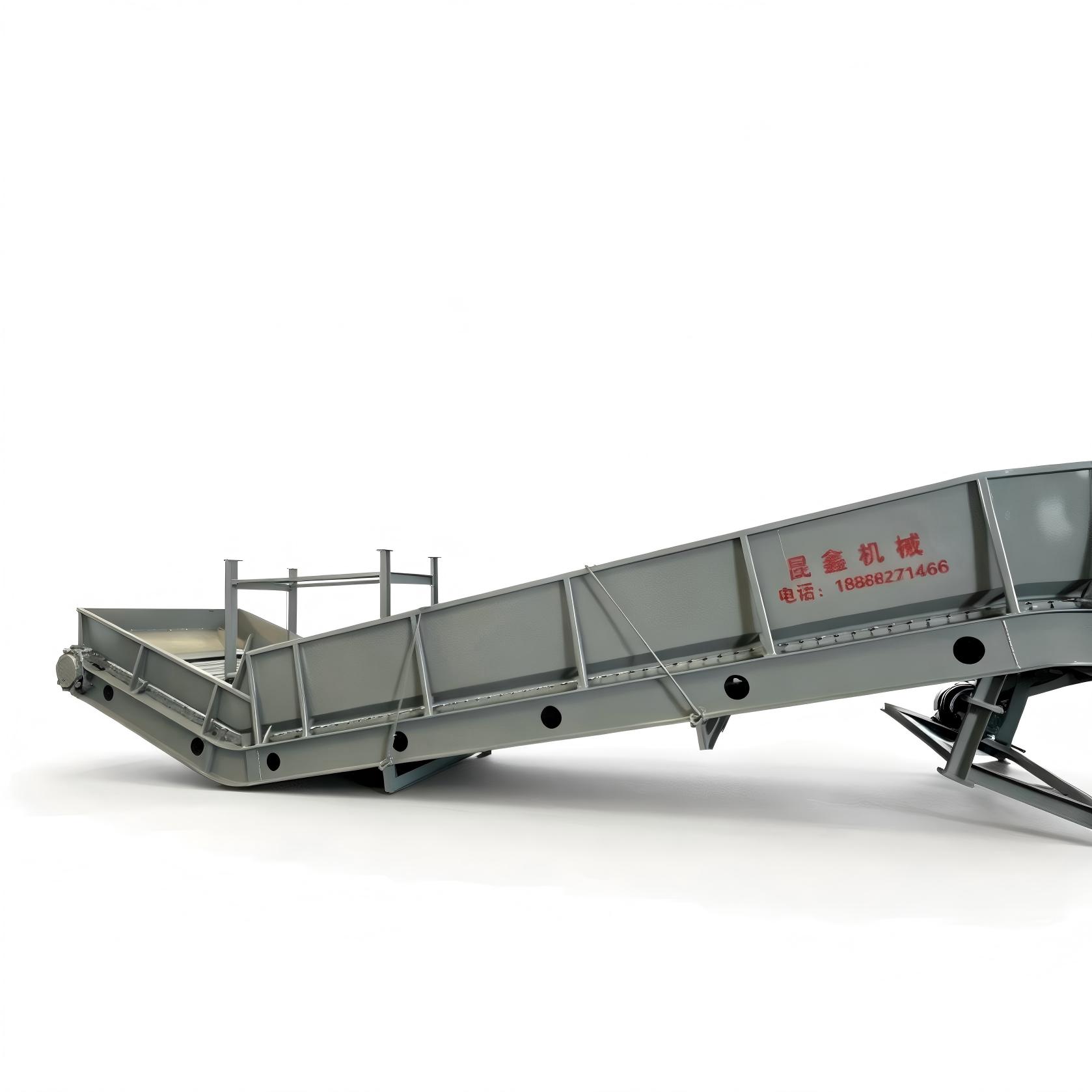

SX‑CPC950 Heavy‑Duty Chain Plate Apron Conveyor is our mature industrial‑grade conveying equipment, specially developed for heavy‑load bulk‑material transportation. It is widely applied for scrap metal, biomass materials, straw residues, construction waste, wood chips and other high‑specific‑gravity raw‑materials.
The standard overall dimension of this apron conveyor is 9500mm × 2000mm. The overall length, width, inclined lifting height and installation angle are fully customizable according to customers’ actual site layout, ground space and feeding‑discharge height requirements.
Different from common belt conveyors, our chain‑plate conveyor adopts solid thickened carbon‑steel apron plates and high‑strength industrial conveyor chains. It can bear heavy‑weight materials without deformation, breakage or material leakage even under long‑time continuous‑running conditions. This equipment is your ideal choice for heavy‑duty material feeding and transportation projects.
Our Core Advantages
1. Stable and Reliable Driving System

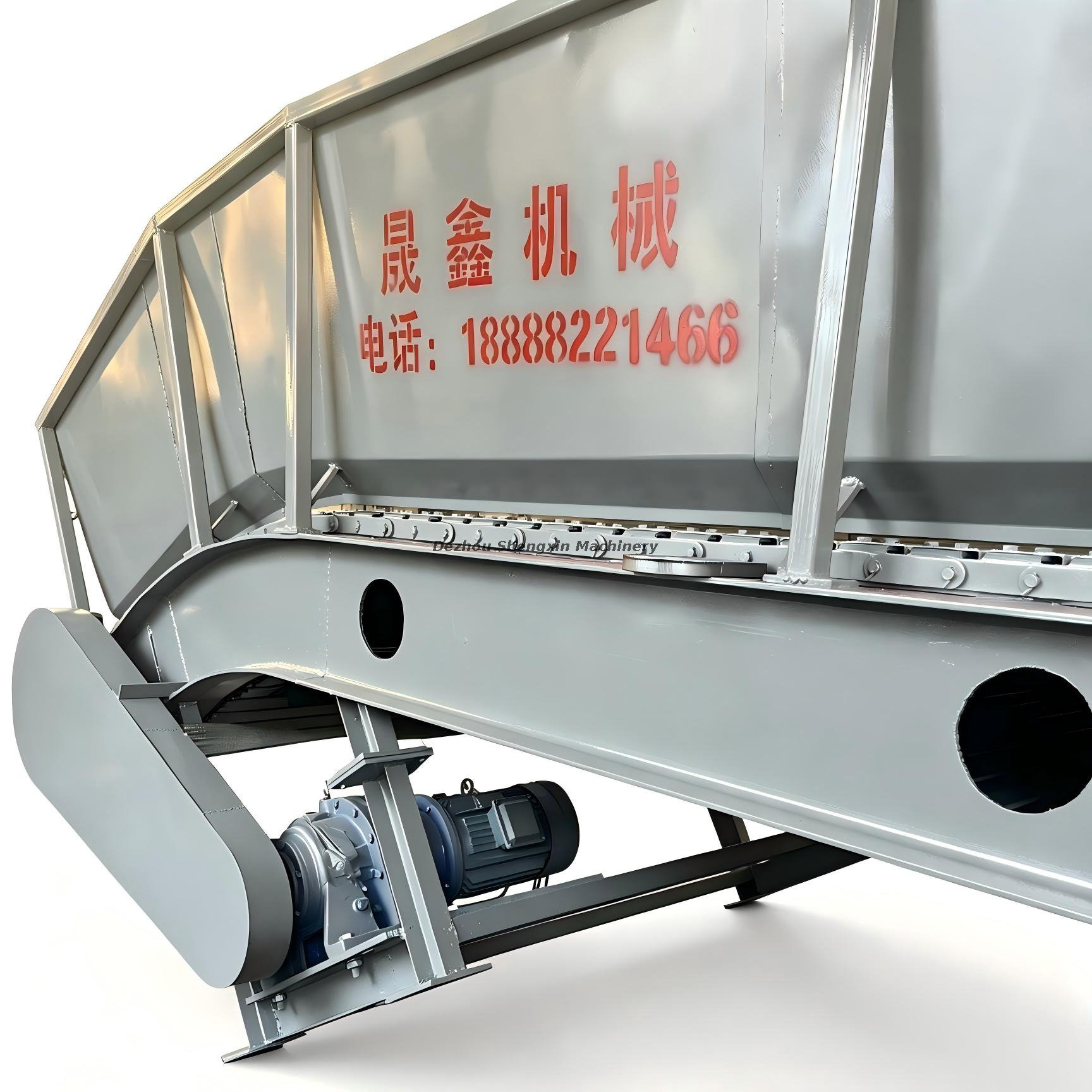

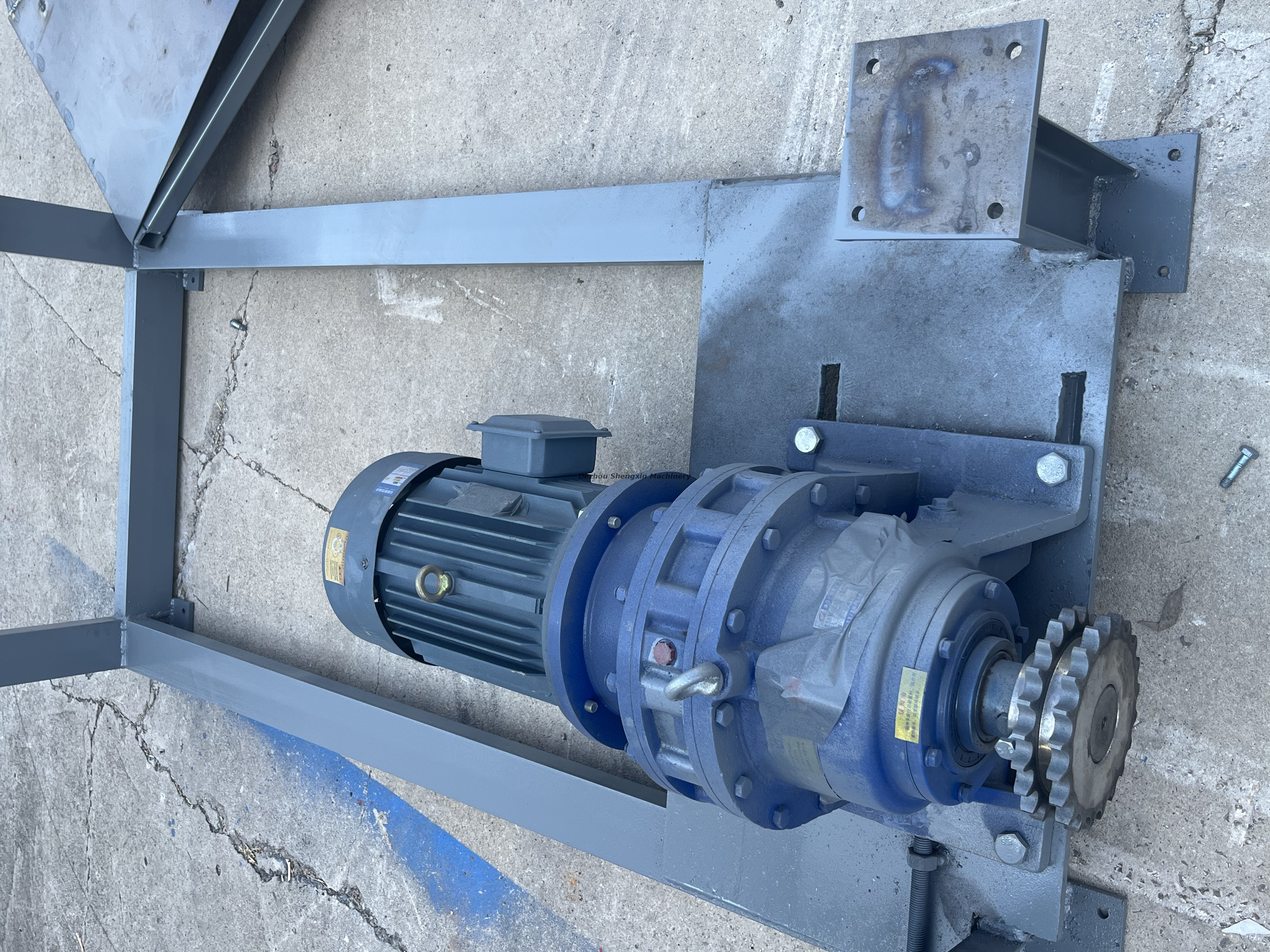

Our chain‑plate apron conveyor is equipped with well‑known brand gear reducer and matching driving motor. The whole drive unit is fixed on reinforced steel base.
Low‑vibration and low‑noise operation;
Strong torque output to handle heavy‑load materials;
Effectively reduce breakdown probability and extend service life;
Optional frequency converter to adjust running speed freely according to your production capacity.
2. Custom‑Designed Structure
We provide full‑range customized service for this chain plate conveyor:
Overall size: Length ranges from 3m‑15m, width adjustable from 800‑2000mm;
Inclined angle: Horizontal type or inclined lifting type can be designed;
Chain‑plate thickness and chain model can be upgraded for heavier‑duty working conditions;
We design independent side‑support frames and reinforced bottom beams to improve overall stability.
3. High‑Quality Thickened Carbon‑Steel Raw Material
The whole frame, apron plates, side guard plates and connecting brackets are made of thickened carbon‑steel plate.
Heat‑resistant and wear‑resistant performance;
Anti‑deformation after long‑term heavy‑load operation;
Suitable for dusty, harsh factory working environment;
All welding joints are processed by full‑penetration welding to guarantee structural firmness.
4. Human‑Oriented Maintenance Design
The side maintenance access door is fixed with surrounding bolts with front lifting hooks. You can open the door and replace chains, sprockets and other wearing‑parts quickly without special tools;
The tension adjusting device is reserved at the tail part, which helps you adjust chain tightness conveniently;
Each wearing‑part is standardized, so spare‑parts replacement becomes simple and time‑saving.
Detailed Technical Parameters
| Item | Specific Parameters |
| Product Model | SX‑CPC950 Heavy‑Duty Chain Plate Apron Conveyor |
| Standard Overall Size | 9500mm × 2000mm (Customized Size Available) |
| Main Material | Thickened Carbon‑Steel Plate |
| Driving Mode | Gear Reducer + Electric Motor |
| Running Speed | Adjustable by Frequency Inverter |
| Applicable Materials | Scrap Metal, Biomass, Straw, Construction Waste, Wood Residues |
| Installation Form | Horizontal / Inclined Optional |

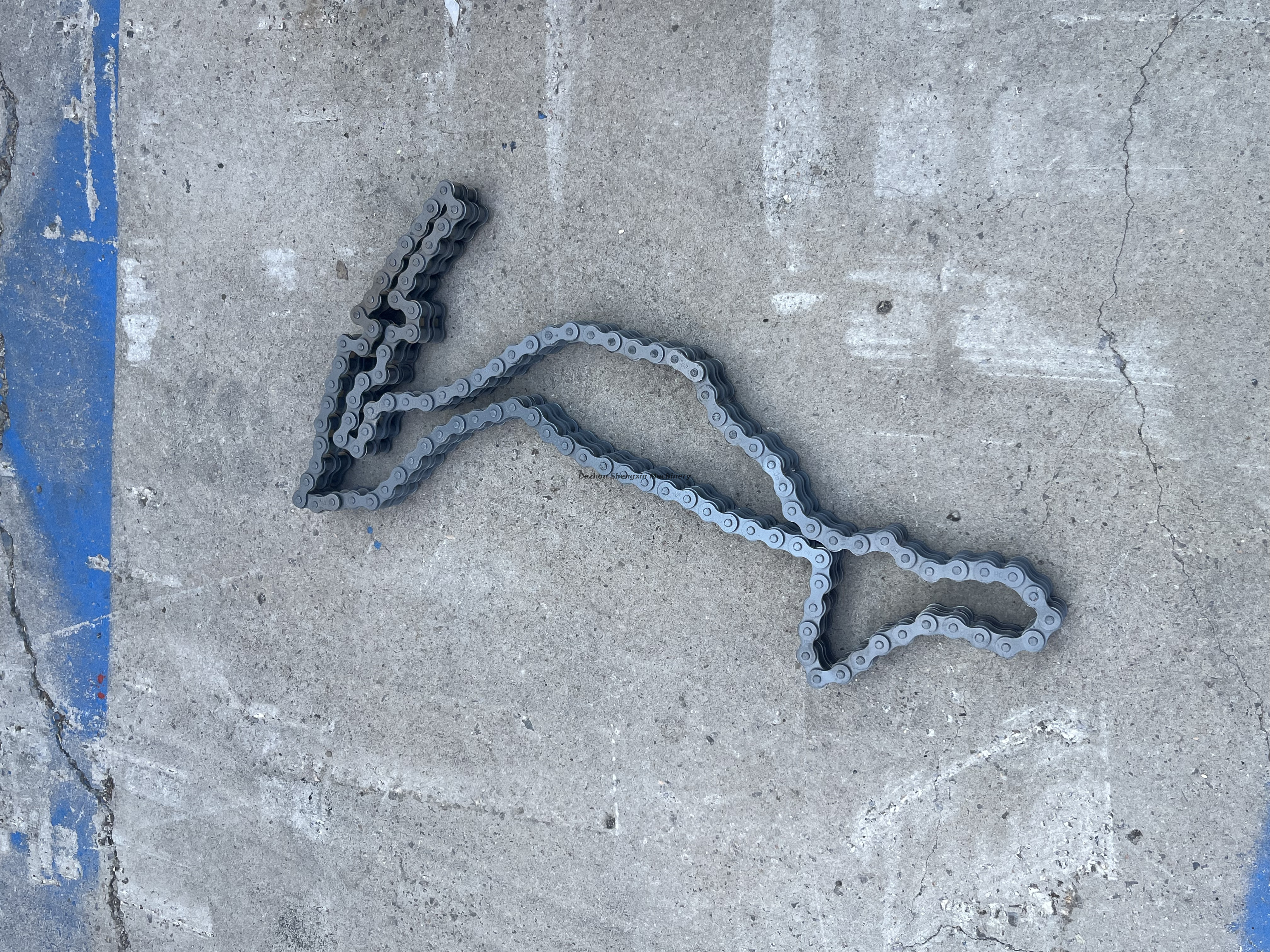

| Chain Type | Heavy‑Duty Industrial Conveyor Chain |
| Overall Weight | About 4800kg |
| Control Cabinet | Centralized integrated control cabinet (optional) |
Product Structure Composition

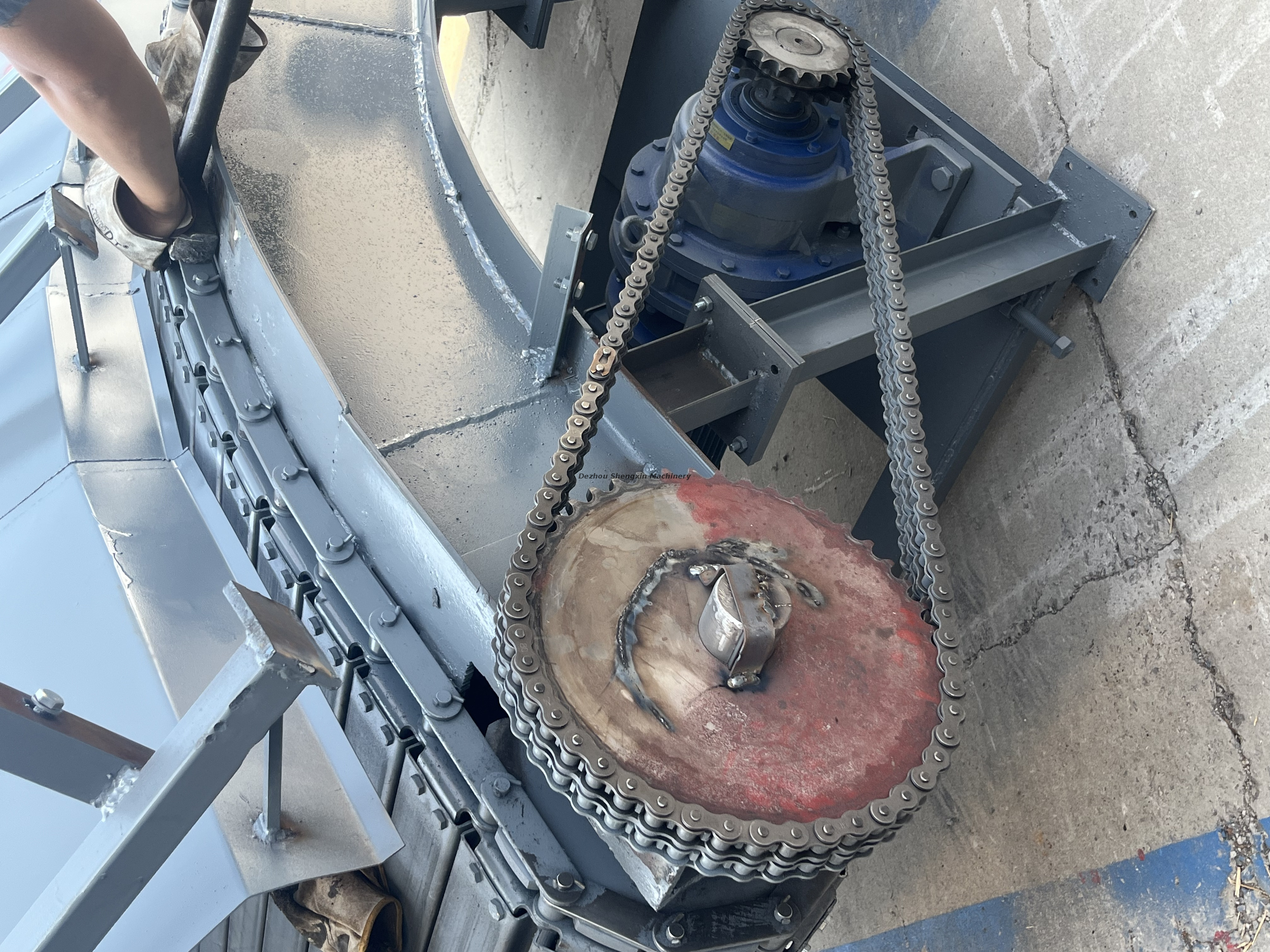

Driving Part: Composed of motor, reducer and driving sprocket, provides stable power for whole‑machine operation;
Chain‑Plate Transport Part: Heavy‑duty chains and solid steel apron plates, the main carrying component for bulk materials;
Supporting Frame: Reinforced‑steel frame and supporting legs, bear the weight of conveyor and raw‑materials;

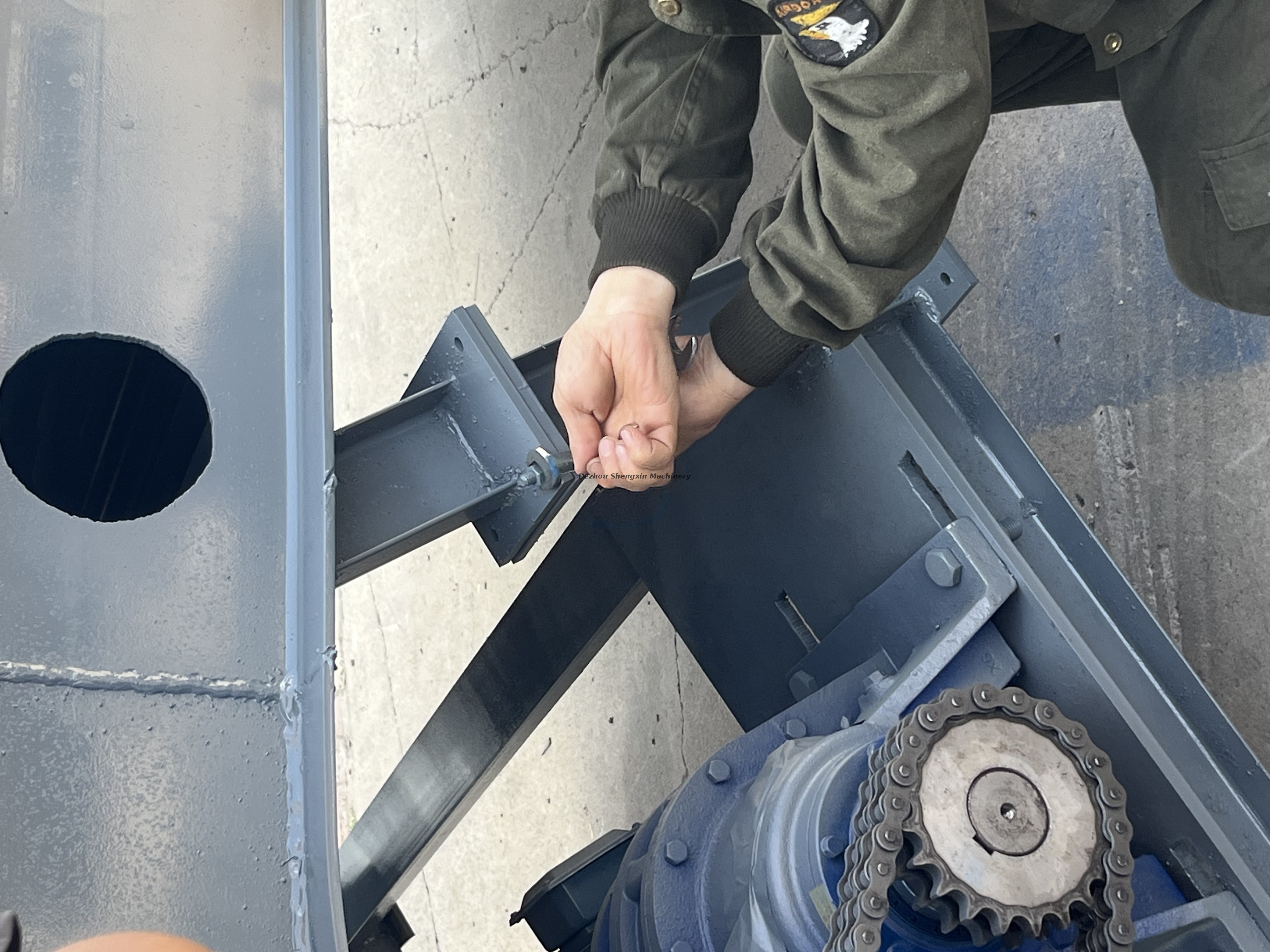

Tail Tension Part: Adjust the tightness of chain to prevent chain‑slipping;
Side Guard Plate: Avoid material splashing out during transportation;
Control System: Central control cabinet to realize start‑stop and speed adjustment.
Application Scope
Our chain plate apron conveyor is popular among global clients and widely used in the below‑listed industries:
Scrap metal recycling industry;
Biomass processing and straw treatment plant;
Wood‑processing factory;
Construction waste disposal project;
Solid‑waste recycling production line.
Whether you need a single independent conveyor or matched equipment for your whole production line, we can provide targeted design for you.
After‑Sales Commitment (Consistent with your FAQ content)
We will provide formal English‑version operation manual and detailed installation drawings for your reference;
Our technical team offers online video‑guidance for machine installation, commissioning and daily maintenance;
1‑year warranty period for the whole machine from the date of shipment;
Lifelong spare‑parts supply at factory cost price after warranty expires;
Overseas on‑site installation training can be arranged if you require.
Company Introduction
Dezhou Shengxin Machinery Equipment Co., Ltd is a professional manufacturer of shredders, balers and heavy‑duty conveyors in China. We focus on designing and producing solid‑waste processing equipment for over 10 years.
We own mature production workshops, advanced processing equipment and experienced technical teams. Besides standard models, we devote ourselves to customized equipment according to different clients’ requirements. Our machines have been exported to Lithuania, Kenya, Nigeria, Argentina and many other overseas countries, winning consistent high‑praise from customers.
If you have any questions about parameter selection, size customization and project matching, please feel free to contact us anytime.
