Product Description
Crocodile Cutter Hydraulic Alligator Scrap Shear Scrap Metal Recycle Equipment Shearing Machine
Introduction
1. The feeding table is a platform used to place materials to be cut into metal sheets. In an automatic feeding system, the feeding table may be equipped with feeding rollers or conveyor belts to realize automatic feeding of sheet metal.
2. Crocodile shear, which is the core component of the shear. It consists of a pair of scissors and looks like a crocodile's mouth.
3. The drive system is responsible for providing force to enable the scissors to close and open. It may include hydraulic cylinders, motors, gearboxes and other transmission components.
4. Modern alligator shears are usually equipped with a control system for precise control of the shearing process. This may include various sensors, control panels, program machineable controllers, etc.
5. The base and frame are the support structures of the alligator shear machine. They are responsible for the stability and load-bearing of the entire machine.

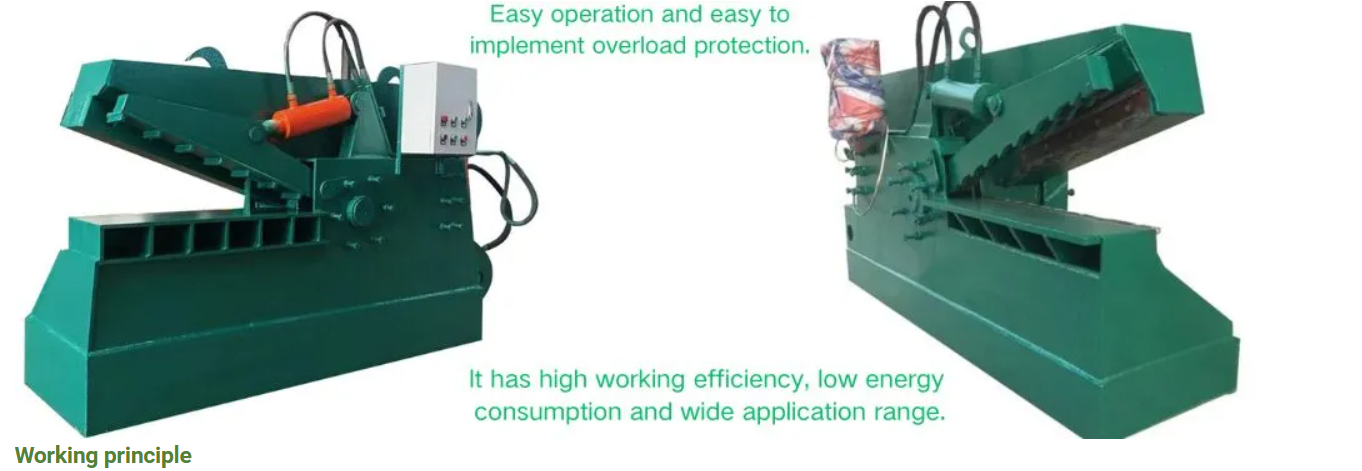

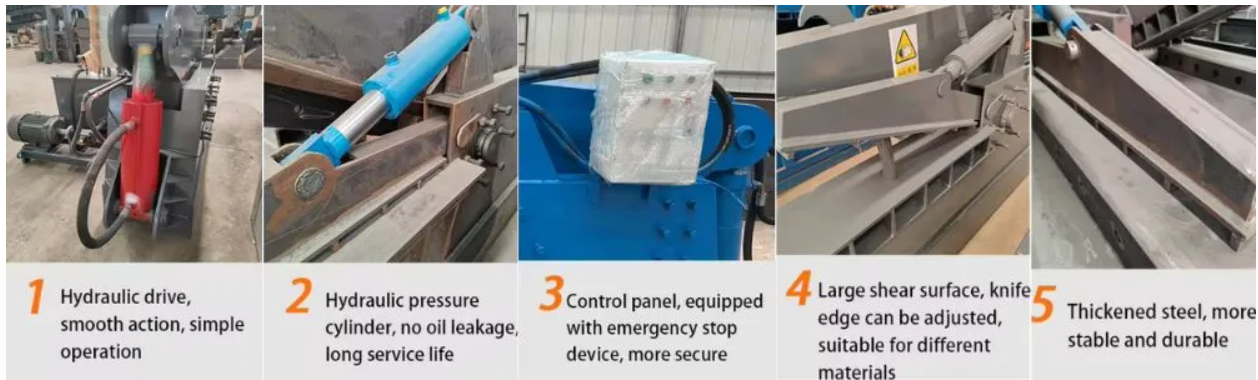

Detail Images
Cut Materials
Applicable materials
| Model | Stress(T) | Knife Edge Size(mm) | Master Cylinder Diameter(mm) | Power(Kw) | Cut times/Per Minute | External Dimension (mm) | HydraulicTank Volume(L) | Voltage(V) | Equipment Weight (T) |
| MC-E-800 | 200 | 800 | 230 | 20 | 8 | 2200*900*1400 | 300 | 380V | 2.5 |
| MC-E-1000 | 200 | 1000 | 230 | 20 | 8 | 2500*1000*1500 | 300 | 380V | 2.8 |
| MC-E-1200 | 200 | 1200 | 245 | 20 | 8 | 2800*1100*1600 | 300 | 380V | 2.8 |
| MC-E-1350 | 300 | 1350 | 290 | 30 | 11 | 2800*1100*1600 | 540 | 380V | 3.8 |
Company Profile
Dezhou Shengxin Machinery Equipment Co., Ltd. is a specialized manufacturer and supplier of waste paper balers, straw balers, metal balers, plastic balers, and straw crushers. With a strong technical foundation, we have a dedicated team of R&D professionals and maintain close information exchange and technical collaboration with relevant research institutes. This enables us to provide customers with high-value products and comprehensive services.
FAQ
1,How do I get the right device for my needs?
Tell me what are your raw materials? Metal, iron sheet, cast iron, thin iron, thin iron sheet, light and thin materials, steel,etc. and more?
What is the approximate size of the raw material in millimeters? Describe the shape of the raw material.
How many kilograms of raw materials are processed per hour? Capacity 500-600kg or 800-1000kg?
What is the final product? Metal materials can be processed into specific sizes.
2,Why choose us?
We are a supplier with 15 years of production experience, can support customized equipment according to your requirements, no intermediate traders to earn the difference, equipment support pre-shipment testing services, complete delivery services and installation operation guidance, one-year shelf life, support factory training guidance services, etc.
