Multi-Purpose Automatic Vertical Hydraulic Baler Machine for Waste Paper Cardboard Clothing Recycling

Easy operation and provide five levels of hydraulic power. wide range of application , Usually used for recycling a variety of conventional materials, high cost-efficiency,and be applied for small and medium sized company and waste recycling industries.

Quantity:
Mini seriers:	5 Ton 10 Ton 15 Ton 20 Ton 30 Ton
Availability:





Inquire Add to Basket

Model:
mini size
Brand:
shengxin

Product Description

Product Description

Scope:

Easy operation and provide five levels of hydraulic power. wide range of application , Usually used for recycling a variety of conventional materials, high cost-efficiency,and be applied for small and medium sized company and waste recycling industries.

Features:

* Suit for compress scrap paper, plastic etc.
* The machine use the hydraulic drive with independent plate balance device.
* Controlled by manual valve, easy to operate.
* Separate feed opening and automatic bale out device, safety and reliable.
* Good quality with best price, economical machine.
* Adopt England brand sealing parts; improve the life time of oil cylinder.
* Oil pipe joint adopts conical without gasket form, no oil leakage phenomenon.
* Adopt Taiwan brand superposition type valve group.
* Adopt connect motor with pump directly, to ensure 100% concentricity, and extend use life of pump.

Data Sheet:

Model	Hydraulic Pressure (Ton)	Bale Size (LWH) mm	Feed Opening (L*H) mm	Output (Bales/hr)	Bale Weight (KG)	Voltage (Customizable) (V/Hz)	Power (KW/HP)	Machine Size (LWH) mm	Machine Weight (KG)
JP604DT01A	10	600400(350 - 600)	540*450	6 - 8	50 - 80	380/50	2.2/3	9507802150	600
JP604DT01B	10	600400(350 - 600)	540*450	6 - 8	50 - 80	380/50	2.2/3	9507802150	600
JP8060T15	15	800600(400 - 800)	800*450	4 - 7	50 - 120	380/50	3/4	12809002870	850
JP8060T20	20	800600(400 - 800)	800*450	4 - 7	80 - 120	380/50	4/5.5	12809003020	1050
JP8060T30	30	800600(400 - 800)	800*450	4 - 7	100 - 150	380/50	5.5/7.5	12809003050	1200

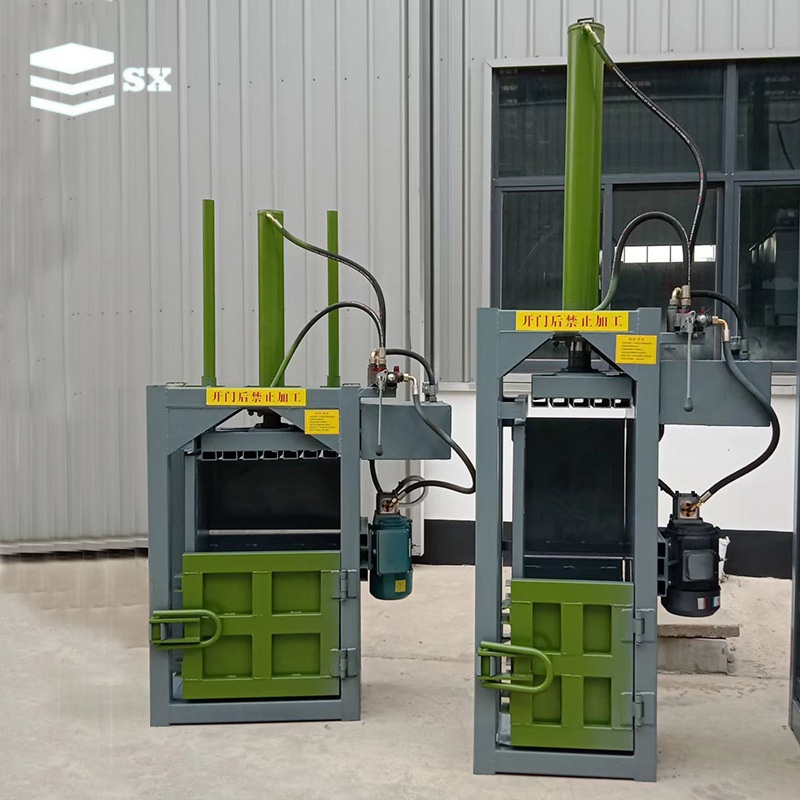

Product Pictures

Packing and Delivery:

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided. Different Packing materials would be used for different products and models.

After Sale Service:

*7X24hours after-sales service
*Service phone line keep 24 hours unblocked
*All emails will get response within 10 hours
*Any needed machine parts can be supplied with professional guiding and ordinary.
*Collect after-sale-service feedback from customer, keep improving.
*we have rich experience after sale staff who have the ability of handling emergency situation, that can ensure machine normal working and customer's production go smoothly.
