Factory Price Vertical Hydraulic Press Machine Scrap Tire Baler Baling Machine

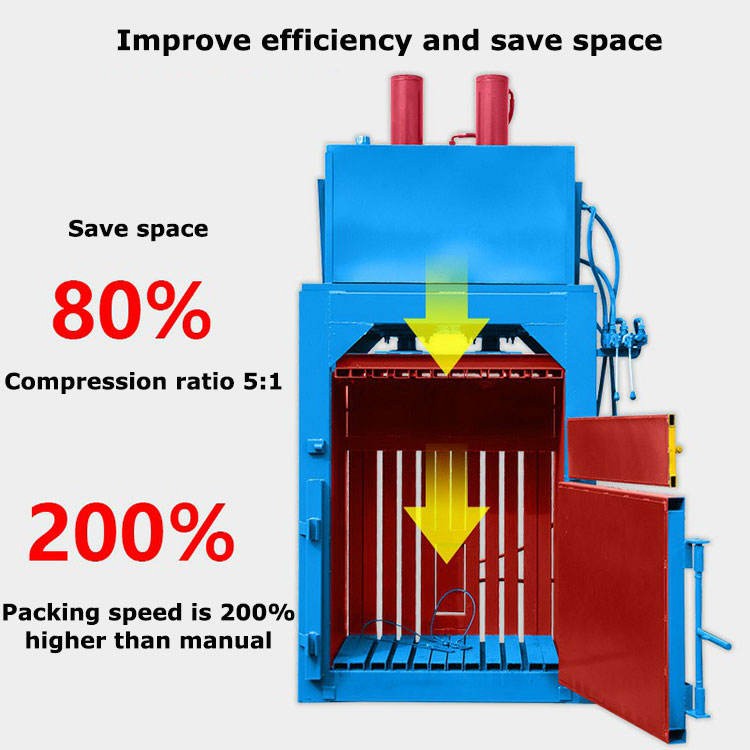

Vertical Hydraulic Baler Vertical Waste Plastic Straw Packing Machine

Our vertical hydraulic baler is cost-effective compression equipment independently manufactured in our factory, specially designed for agricultural straw, waste cardboard, plastic film, woven bags and used textiles. Available from 5Ton to 100Ton compression force models to meet different production demands of farms, recycling stations and packaging factories.

✅ Powerful & Stable Hydraulic System
Equipped with heavy-duty oil cylinders and reliable hydraulic pump, it delivers strong compression force to make tight and regular bales, greatly cutting storage and transportation costs. Models above 60Ton can also handle hard plastic bottles and cans.

✅ Safe & Easy Manual Operation
Adopts fully closed safety door interlock design, the machine automatically stops once the door is opened to prevent accidental injury. Simple button control, workers can master operation within 10 minutes without complex training.

✅ Durable Heavy Steel Frame
The whole body is welded with thick Q235 carbon steel plate, anti-deformation under long-time high pressure, with a service life up to 8-10 years and low daily maintenance expense.

✅ Flexible Customization Support
Optional automatic pusher cylinder for fast bale discharging
Customizable bale size, machine color and 400V 3-phase 50Hz EU standard voltage
Can be matched with feeding conveyor to form a full automatic baling production line

✅ Complete After-sale & Document Service
12-month factory warranty against manufacturing defects. We can provide full set of EU CE compliance documents including Declaration of Conformity, EN ISO 12100 risk assessment, electrical schematics and English operation manual after receiving your deposit, supporting smooth customs clearance for European countries.

Compact footprint, low power consumption and wide material compatibility make this vertical baler your ideal waste recycling and agricultural processing partner. Contact us to get tailored quotation and technical parameters right now!

Quantity:
Availability:





Inquire Add to Basket

Product Description

Product Description

Vertical Hydraulic Baler Vertical Waste Plastic Straw Packing Machine

▕ Product Overview

This vertical hydraulic baler is a manual small compression equipment independently developed by our factory, widely used for baling crop straw, hay, waste carton, plastic film, woven bags, used clothes and other light soft materials.

Equipped with integrated hydraulic system and double hydraulic cylinders, it features stable compression, simple operation, small floor space and low failure rate. The machine supports customizable bale size, and optional automatic pusher cylinder for easy material output, greatly saving labor and transportation cost. It is the ideal recycling equipment for farms, waste recycling stations, textile factories and packaging factories.

▕ Working Principle & Operation Flow

Load Material: Open the feeding door, put straw, carton or waste plastics into the compression chamber evenly.
Close Door: Lock the safety door tightly to avoid material splashing during compression.
Start Compression: Turn on the hydraulic power, the pressing plate moves down to squeeze materials tightly.
Multiple Compression: Repeat feeding and compression to reach standard bale weight.
Bind Bale: Stop the machine, bind the compressed bale with plastic strap or steel wire.
Open Door & Eject Bale: Open the side door; the optional pusher cylinder pushes finished bale out automatically.
Finished Bale: Compact square bales are convenient for stacking, storage and sea transportation.

Core Advantages

✅ High compression density, reduce transport volume and logistics expense

✅ Small footprint, suitable for small factory, farm and warehouse

✅ Simple manual control, easy training for workers

✅ Complete safety door protection to avoid operation risk

✅ Stable hydraulic system, long service life, low maintenance cost

✅ Multiple models from 5Ton–100Ton for different capacity demands

✅ Customizable voltage (380V/400V 3-phase 50Hz for EU countries)

▕ Complete Technical Parameter Table

Item	5T	10T	20T	30T	40T	50T	60T	100T
Compression Force	5 Ton	10 Ton	20 Ton	30 Ton	40 Ton	50 Ton	60 Ton	100 Ton
Main Motor Power	4kW	5.5kW	7.5kW	11kW	11kW	11kW	15kW	18.5kW
Cylinder Spec	80mm/830mm	100mm/800mm	140mm/900mm	100mm*2/900mm	125mm*2/900mm	140mm*2/900mm	160mm*2/1200mm	180mm*2/1300mm
Pusher Cylinder	/	/	/	/	/	/	100mm*2/850mm	100mm*2/850mm
Bale Size(L×W×H)	500×400×700mm	600×400×700mm	700×600×800mm	1100×700×900mm	1200×800×900mm	1200×800×900mm	1200×800×1000mm	1300×800×1000mm
Single Bale Weight	50kg	70kg	100kg	150kg	200kg	250kg	300–350kg	400–450kg
Machine Overall Size	900×700×2400mm	900×700×2600mm	1100×950×2500mm	1600×1200×2800mm	1800×1300×2800mm	1800×1300×2800mm	2000×1200×3200mm	2100×1200×3400mm
Machine Net Weight	400kg	600kg	700kg	1100kg	1500kg	1700kg	About 1.8Ton	About 3Ton
Control Type	Manual Button Control	Manual Button Control	Manual Button Control	Manual Button Control	Manual Button Control	Manual Button Control	Manual Button Control	Manual Button Control
Standard Power Supply	380V/3Phase/50Hz	380V/3Phase/50Hz	380V/3Phase/50Hz	380V/3Phase/50Hz	380V/3Phase/50Hz	380V/3Phase/50Hz	380V/3Phase/50Hz	380V/3Phase/50Hz
Processing Capacity	5–8 bales/hour	5–8 bales/hour	5–8 bales/hour	5–8 bales/hour	5–8 bales/hour	5–8 bales/hour	5–8 bales/hour	5–8 bales/hour
Warranty Period	12 Months	12 Months	12 Months	12 Months	12 Months	12 Months	12 Months	12 Months

▕ Product Advantages Detail

Heavy-duty Welded Frame

Whole machine welded by thick Q235 carbon steel plate, anti-deformation under long-term high pressure, durable for 8–10 years service life.
Stable Hydraulic System

Standard hydraulic pump and oil cylinder, slow down pressure backflow, uniform compression force, no oil leakage. Optional independent cooling system for long-hour continuous work.
Safety Protection Design

Full closed feeding door with safety lock; machine will stop automatically when door opens to avoid accidental injury.
Flexible Customization

Optional automatic pusher cylinder for fast bale discharging
Custom bale dimension, machine color, 400V EU standard voltage
Match feeding conveyor to form full automatic baling production line

Low Operation Cost

Low power consumption, wearing parts can be replaced separately with low cost; our factory provides spare parts supply all the time.

▕ Trade & After-sale Terms

Trade Term: EXW Dezhou Factory / FOB Qingdao Port optional
Payment Term: 30% T/T deposit, 70% balance before delivery
Production Lead Time: 10–15 working days after deposit received
Warranty: 12 months whole machine warranty against manufacturing defects; vulnerable spare parts excluded. We supply free technical guidance online all year round.
Documents Support: We can provide Commercial Invoice, Packing List, CE Declaration of Conformity, English operation manual, technical drawings and risk assessment file for EU customs clearance after deposit.
