High Capacity Disc Type Straw Shredder | Hay Forage Crushing Machine With Conveyor Belt
Why Choose Our Disc Type Straw Shredder?
Super High Production Capacity: Stable 6–8 tons per hour output, equipped with 72pcs wear-resistant alloy hammer blades, adjustable crushing length 40–60mm, perfectly process corn stalk, wheat straw, alfalfa and pasture for livestock silage feed.
Full Hydraulic Independent Drive System: Rotary drum and discharge conveyor adopt separate hydraulic motor driving, strong torque, anti-blocking, stable running under full-load continuous feeding, suitable for long-time non-stop farm operation.
Ultra Thickened Durable Structure: 4mm rotary drum steel plate + 6mm integral base plate, total machine weight 4810kg, anti-vibration and anti-deformation, support 24-hour continuous heavy duty work with long service life.
Space-Saving 6M Folding Conveyor Belt: Retractable discharge belt greatly saves container shipping space, adjustable discharge height, can directly connect with our round baler wrapper machine to build integrated silage processing line.
Wide Power Compatibility: Support diesel engine and electric motor dual power, fit for electrified fixed workshop and remote off-grid pastoral areas with no power supply.
Official Certification & Reliable Factory Guarantee: CE, ISO9001 approved to meet global customs clearance standard. 12-month free warranty for main body frame, 6-month warranty for hydraulic system, lifelong cost-price supply of vulnerable spare parts.
One-Stop Shipping & After-Sales Service: FOB Qingdao, FOB Tianjin and EXW Dezhou factory delivery available, complete customs documents supplied. 24/7 WhatsApp remote operation training and fault troubleshooting, bulk order supports overseas engineer on-site commissioning. We are 15-year professional agricultural machinery manufacturer with strict pre-delivery full load test, no middleman markup, customized power, conveyor length and painting color acceptable. Free set of spare hammer blades attached for each machine. WhatsApp: +86 13105348483 for detailed catalog and best factory quotation.
This heavy-duty disc type straw shredder is a professional agricultural crushing equipment independently developed for large farms, silage processing factories and straw recycling industries. It is widely used for crushing corn stalk, wheat straw, rice straw, alfalfa, pasture, cotton stalk and other crop straws. After crushing, the materials are uniform, soft and fine, fully meeting livestock feeding and silage production standards.
The whole machine adopts full hydraulic drive system, equipped with 6-meter folding conveyor belt, realizing automatic feeding and discharging. It features large output, stable operation, no blockage and strong durability, which can greatly save labor cost and improve farm processing efficiency.
2. Product Specifications
No.
Item
Unit
Specification
1
Overall Dimension(L×W×H)
mm
4200×2800×2700
2
Matched Power
HP
≥200HP
3
Total Machine Weight
Kg
4810Kg
4
Production Capacity
t/h
6–8 Ton Per Hour
5
Crushing & Rubbing Length
mm
40–60mm Adjustable
6
Hammer Blades Quantity
Pcs
72 Pcs Alloy Hammer Blades
7
Conveyor Belt Length
m
6 Meters Folding Type
8
Working Type
-
Continuous 24h Working
3. Product Display Pictures (Insert Here)
4. Core Advantages
1. High Efficiency Crushing System Equipped with 72 pieces of high wear-resistant alloy hammer blades, the crushing fineness is adjustable. The machine can continuously crush various tough crop straws with stable output of 6-8 tons per hour.
2. Full Hydraulic Drive Design Both rotary drum and discharge conveyor adopt independent hydraulic motor drive. The torque is large, the load capacity is strong, and the machine will not block even under full-load continuous feeding.
3. Thickened Heavy-Duty Body Structure 4mm thick drum steel plate and 6mm integral base plate ensure stable operation, anti-vibration and anti-deformation. The total weight reaches 4810kg, suitable for long-term 24-hour continuous heavy work.
4. Foldable Conveyor Belt 6-meter folding discharge belt saves container space for sea transportation. The conveying height is adjustable, which can perfectly connect with round baler and wrapper machine to form a complete silage processing production line.
5. Wide Adaptability Support diesel engine and electric motor dual power configuration, suitable for electrified workshops and remote powerless pastoral areas.
5. Application Scope
Large cattle and sheep farm feeding, silage pretreatment processing, crop straw recycling, biomass fuel processing, pasture forage deep processing, agricultural waste resource utilization.
6. Factory Strength & Production Guarantee

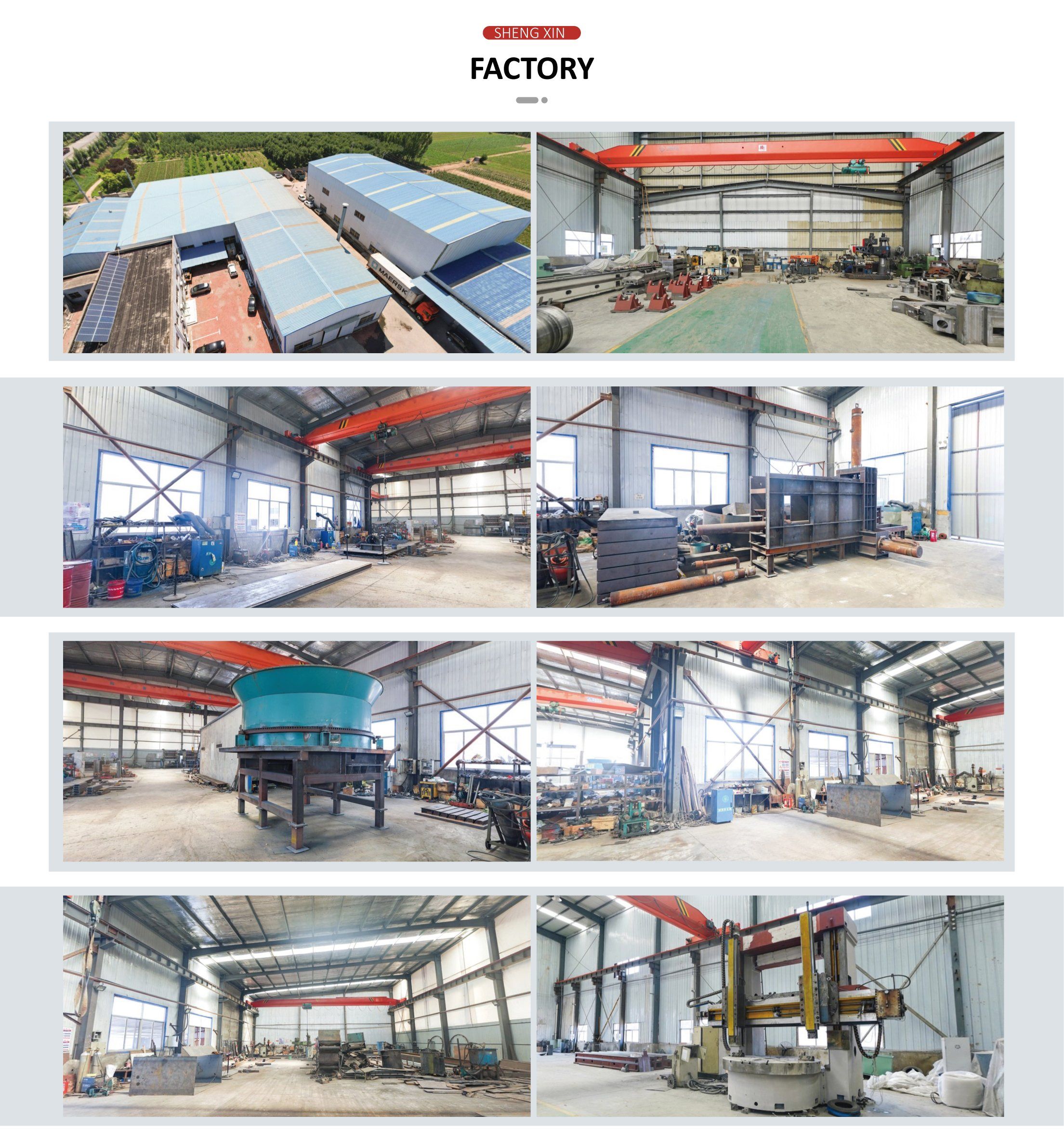

Professional Manufacturing Factory We are a professional agricultural machinery manufacturer with more than 15 years of production experience. We own standardized heavy machinery workshops, CNC cutting equipment and automatic welding production lines. All raw materials are strictly inspected before entering the factory, and every machine passes full-load test running before delivery to ensure stable quality.
Complete Certification Support All machines support CE and ISO9001 certification, which fully meet the import and customs clearance requirements of Europe, Africa, Southeast Asia, Middle East and other global markets.
Customization Service Available We support customized power configuration, conveyor length, discharge height and machine color. We can optimize the machine structure according to customers’ local straw materials and working environment.
Lifelong Spare Parts Supply We provide lifelong cost-price supply of vulnerable parts including hammer blades, bearings, hydraulic seals and conveyor belts. Spare parts can be delivered to global ports quickly to ensure no production shutdown.
8. Packaging & Shipping
Packaging Method Adopt standard export seaworthy packaging or container bulk loading. Key hydraulic components are wrapped with waterproof film and coated with anti-rust oil for long-distance sea transportation. All machines are fixed with steel wires inside the container to avoid collision and damage during transit.
Global Shipping Coverage We cooperate with long-term stable forwarders and can arrange sea freight to Africa, South America, Southeast Asia, Middle East, Eastern Europe and Australia. We provide complete set of customs clearance documents including commercial invoice, packing list, bill of lading and certificate of origin.
Delivery Time Standard order: 7–15 working days after deposit Customized order: 15–25 working days
9. After-Sales Service
24/7 Online Technical Guidance We provide lifelong WhatsApp video remote operation training, fault diagnosis and technical guidance. English version operation manual and maintenance manual are delivered together with the machine.
Official Warranty Policy Main body frame: 12 months free warranty Hydraulic system and motor: 6 months warranty (Excluding quick-wear parts such as hammer blades)
Overseas Engineering Support For large bulk orders, we can arrange professional engineers to customers’ local site for installation, commissioning and worker training through negotiation.
10. FAQ
Q1: What is your MOQ?
A: MOQ is 1 set. We support sample order for quality inspection before bulk purchase.
Q2: Can this machine match with your round baler wrapper machine?
A: Yes, perfectly matched. The disc shredder finishes straw crushing pretreatment, and then the materials can be directly sent to the baler wrapper machine to complete automatic bundling and wrapping, forming a full silage production line.
Q3: Which power type should I choose?
A: Electric motor is suitable for fixed workshops with stable power supply. Diesel engine is more suitable for remote pastures without electricity.
Q4: How long is the service life of hammer blades?
A: The original alloy hammer blades can work 300-500 hours. We provide one set of free spare hammer blades with each machine.
Q5: Can you provide full customs clearance documents?
A: Yes, we can provide CE certificate, ISO certificate, commercial invoice, packing list, certificate of origin and other full set clearance documents to support customers’ smooth import.
Factory Address: Tianqu New District, Dezhou City, Shandong Province, China
Online Service: 24-hour online inquiry, professional quotation within 30 minutes
WhatsApp: +86 13105348483
We are a professional agricultural machinery manufacturer. Welcome global distributors, farm owners and trading companies to visit our factory and establish long-term cooperation!
