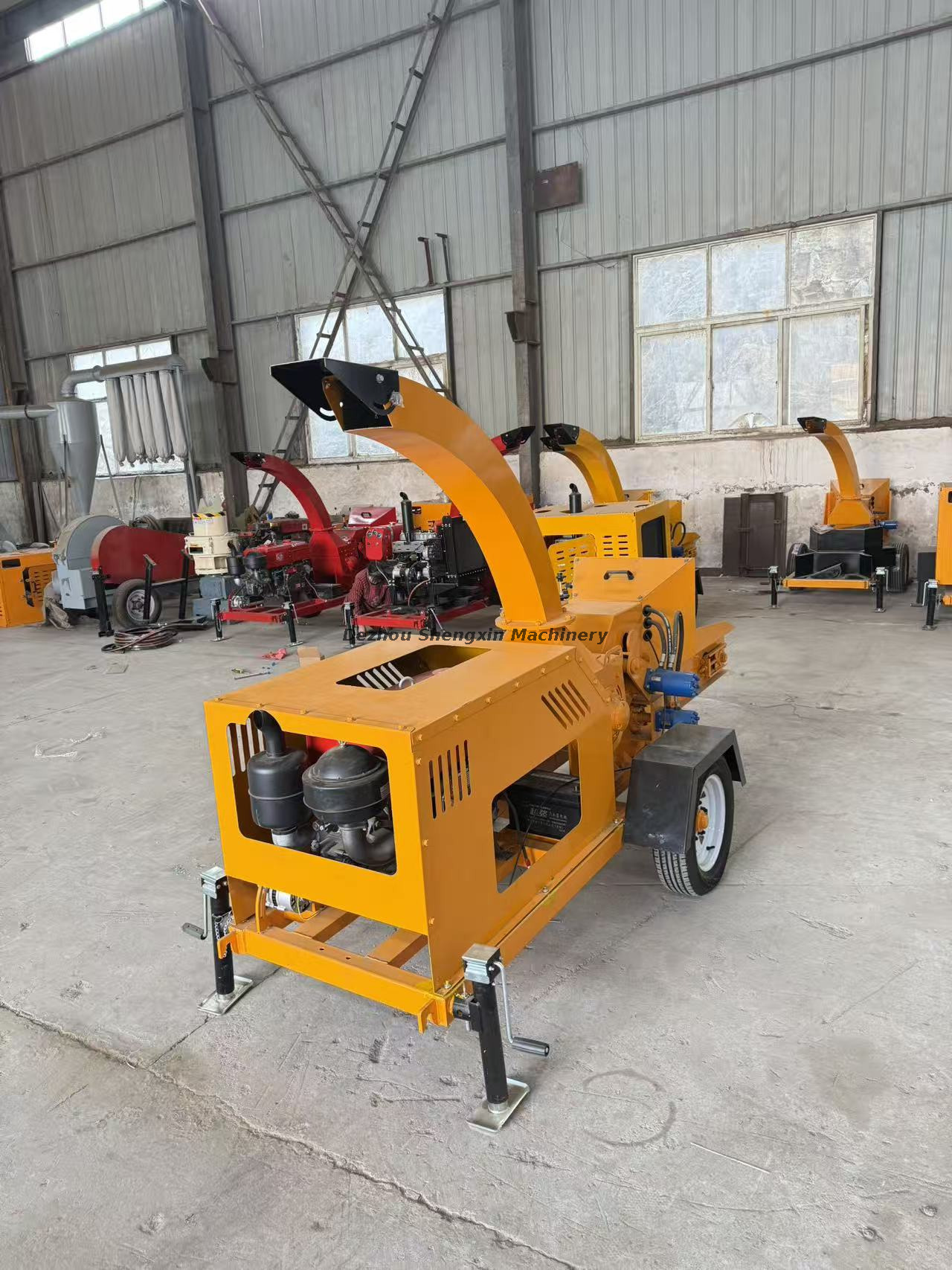

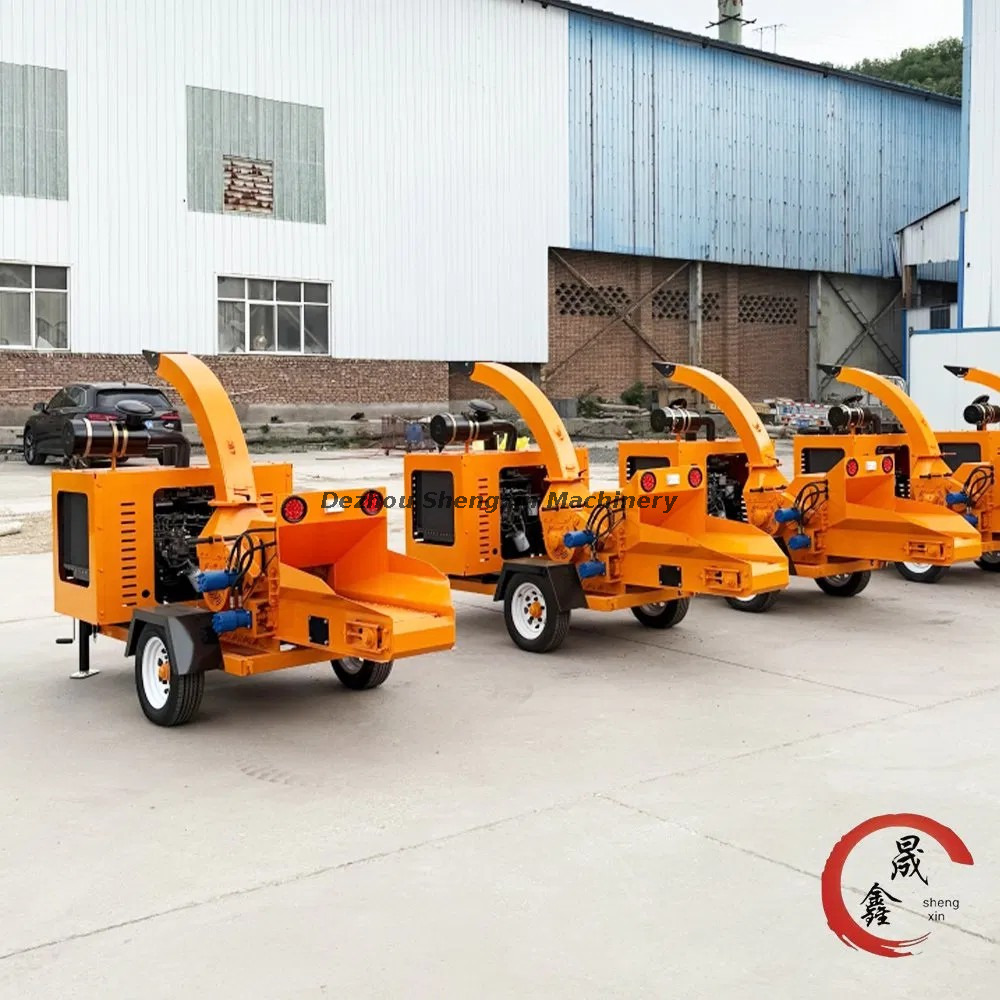

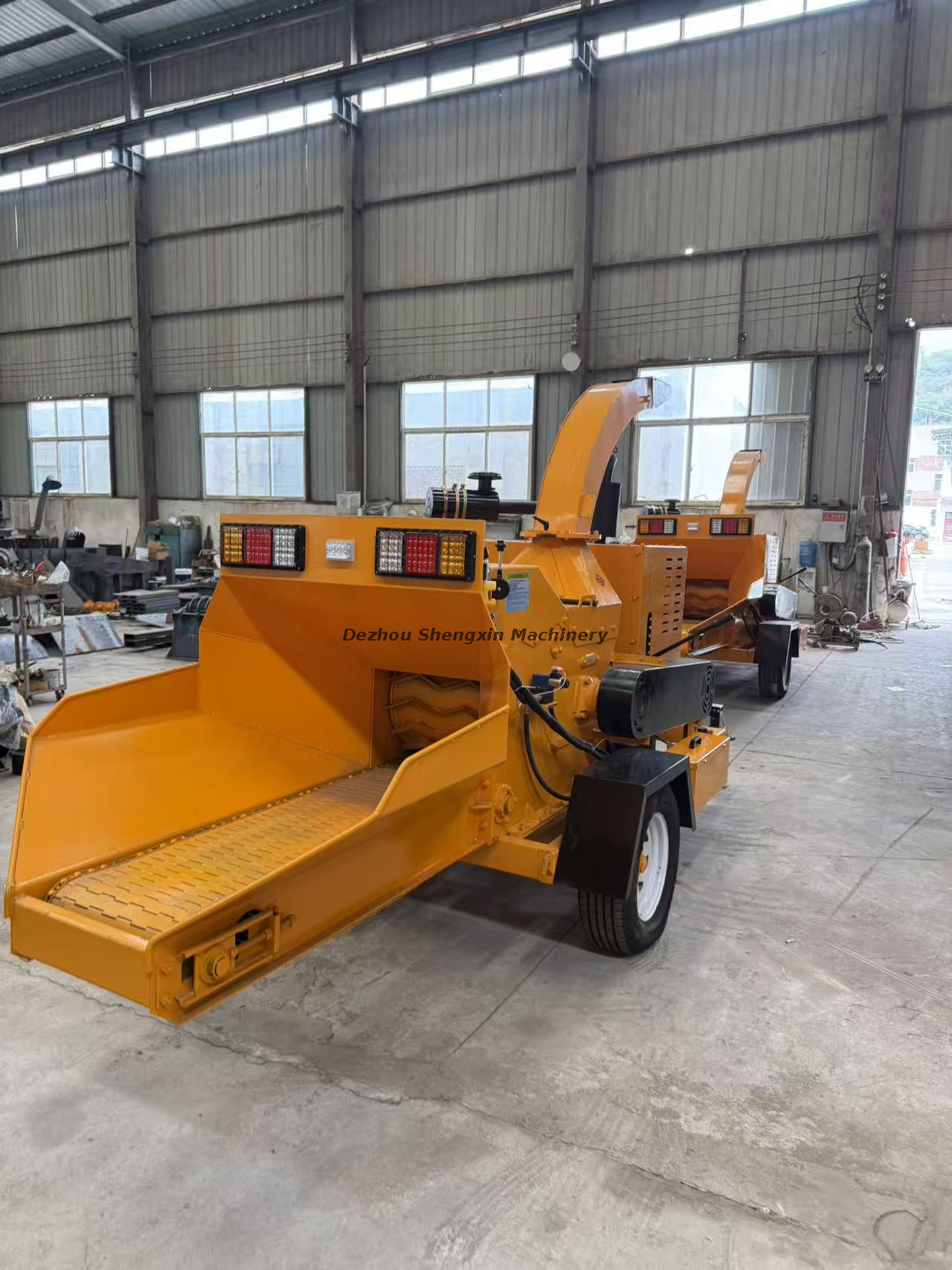

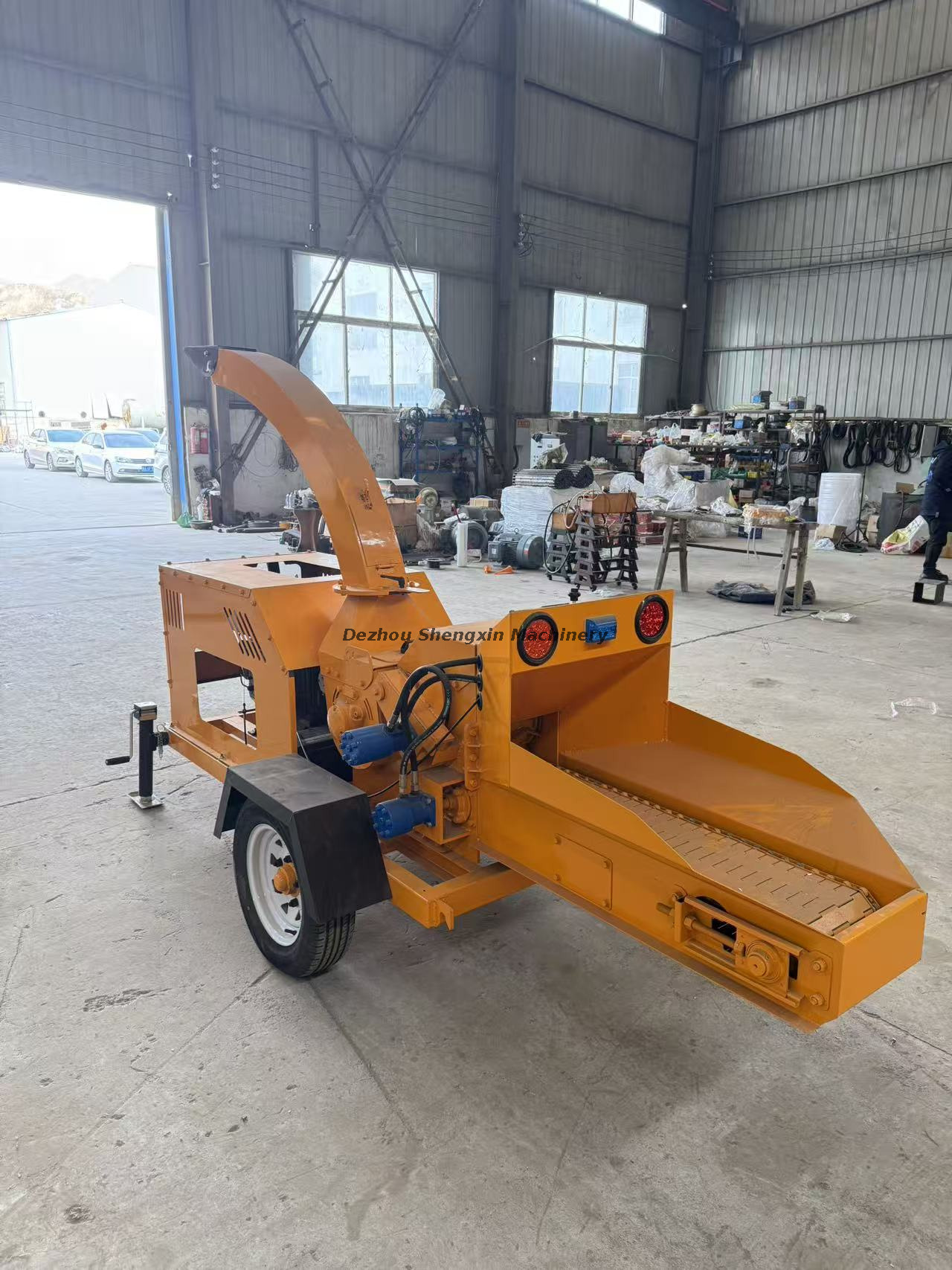

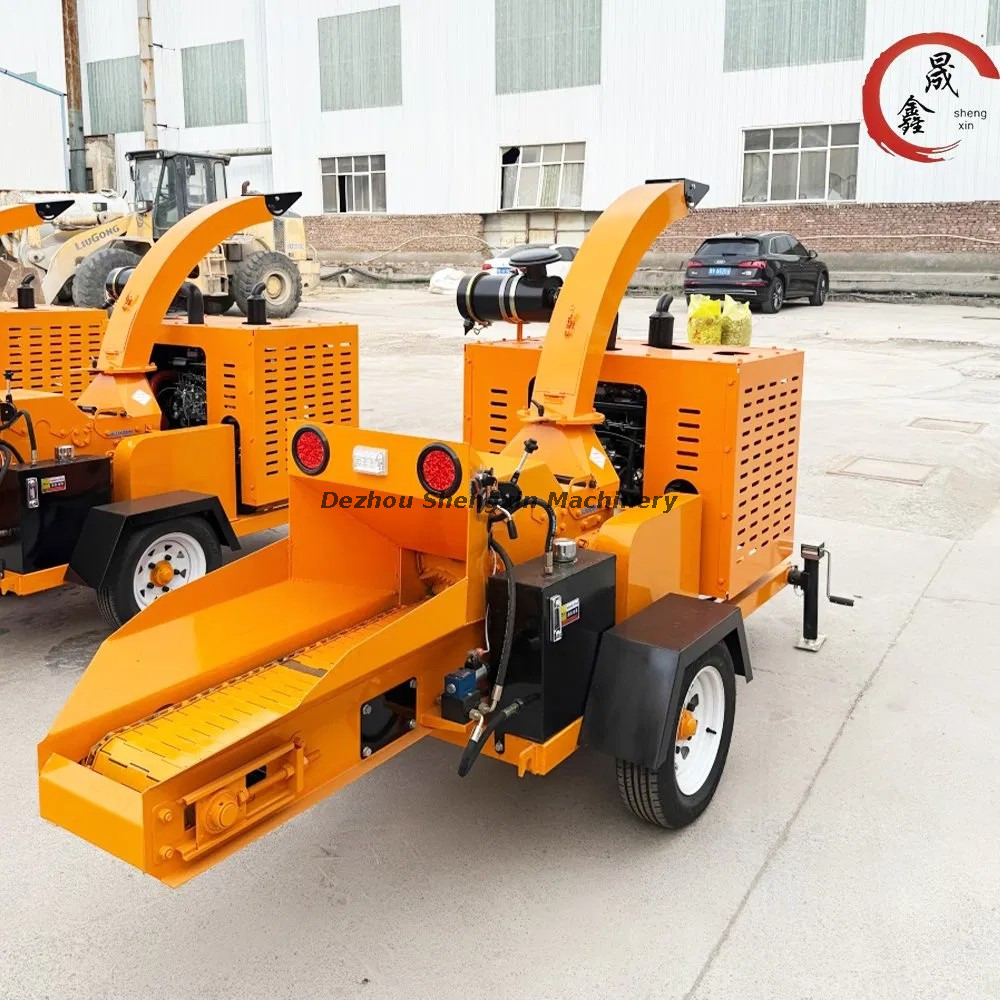

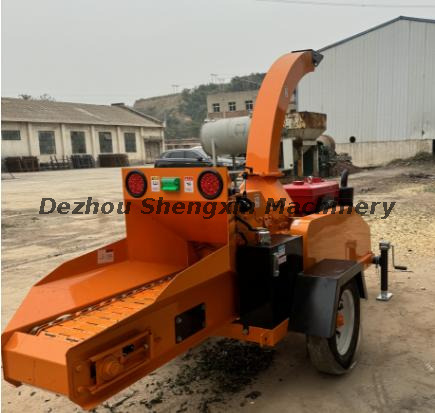

32HP Diesel Mobile Wood Chipper Shredder | 120mm Max Branch Diameter Hydraulic Auto Feed Tree Branch Shredder for Garden Forest Waste Recycling

32HP diesel powered mobile wood chipper with 120mm max cutting diameter, intelligent anti-jam hydraulic feeding system, 360° rotatable high discharge outlet. This heavy-duty wood branch shredder produces chips under 2mm thickness, ideal for landscaping, farm, forestry waste disposal. Anti-block reverse feed, double-edged regrindable blades, road towable design for outdoor field work. 12-month warranty & OEM customization available.
Power:
Max Cutting Diameter:
Blade Qty:
Feeding Type:
Discharge:
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button
  • 32HP Towable Hydraulic Wood Chipper

  • Sxbaler

  • 84659600

Product Description

Overview

This heavy-duty towable diesel wood chipper shredder is professionally developed for landscaping companies, forest farms, municipal greening departments, agricultural cooperatives and waste recycling plants to dispose tree branches, twigs, hedge trimmings, fruit tree prunings and garden wood waste efficiently.

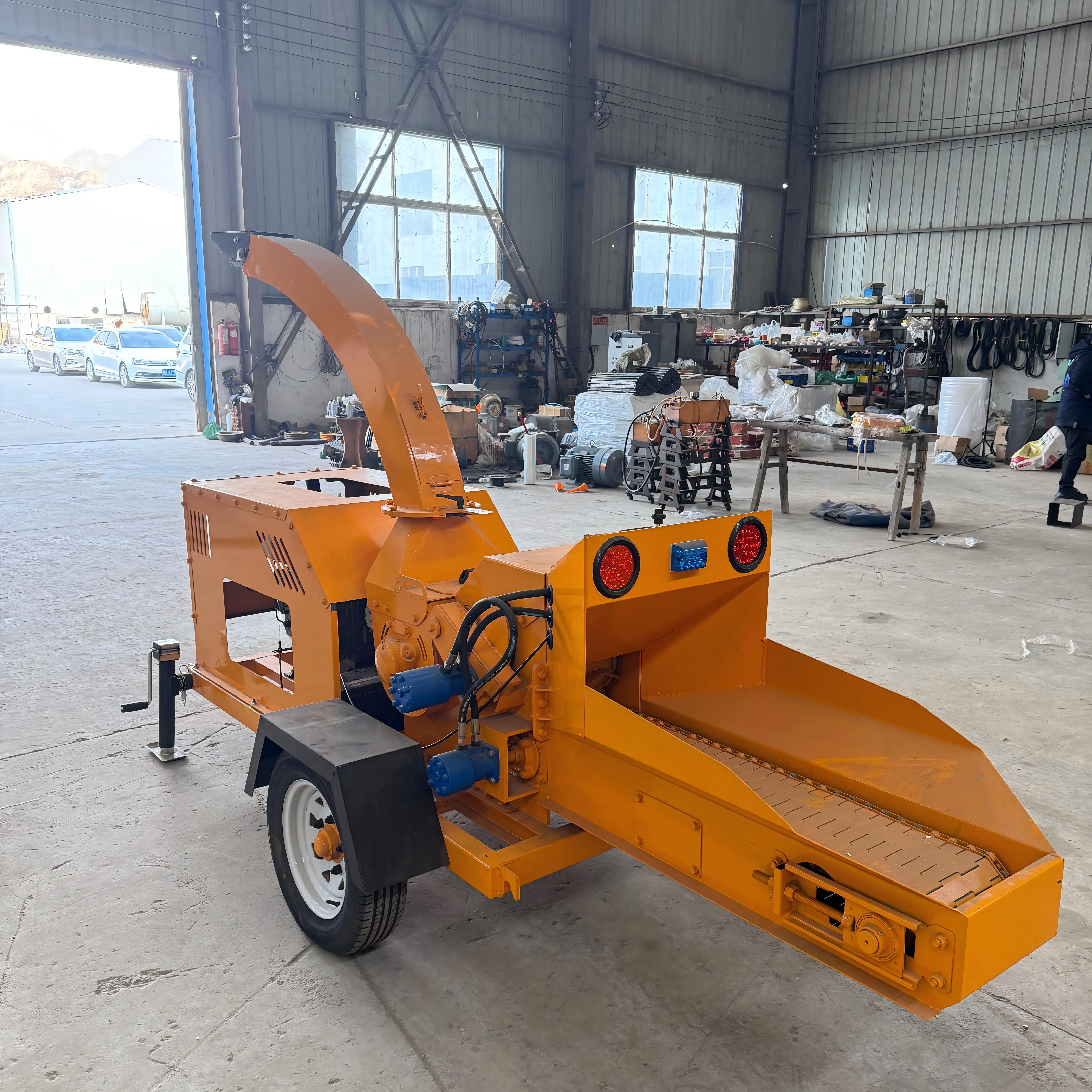

微信图片_20260225144733_9212_6

Traditional small wood chippers easily get stuck during thick branch feeding, require frequent manual clearing, waste labor and damage engine; ordinary fixed chippers cannot move freely in mountain forests and scattered operation sites, limiting working flexibility. Our upgraded 32HP diesel wood chipper solves all these pain points with intelligent hydraulic feeding system, heavy-duty cutting structure and road-mobile chassis design, turning bulky wood waste into uniform fine wood chips for biomass fuel, mulch bedding, compost raw materials and organic fertilizer production.

Core Advantages & Pain Point Solution Breakdown

1. Powerful 32HP Diesel Power & Stable High-Speed Cutting (Solve Low Power & Slow Shredding Pain)

Equipped with reliable 32HP diesel engine, matched with 3000rpm high-speed knife roller, it delivers strong shear force to cut hard dry branches, fresh wet fruit tree branches, shrub wood smoothly without power attenuation. No stall under full-load continuous operation, suitable for long-hour outdoor field work far away from power supply.

2. Anti-Jam Intelligent Hydraulic Feeding System (Core Upgrade for Blockage Trouble)

Built-in 300mm diameter toothed feeding roller with automatic reverse rotation function, paired with smart hydraulic auto start-stop control system. When oversized or tangled branches cause feeding resistance, the roller reverses automatically to release stuck materials, completely eliminate manual dredging work, protect diesel engine and cutting assembly from overload damage. Hydraulic forced feeding improves feeding efficiency by 60% compared with manual gravity feeding.

3. Heavy-Duty Durable Blade Assembly, Long Service Life & Low Maintenance Cost

Configured with 1 fixed blade + 4 movable cutting blades, total 5 cutting groups; blade thickness reaches 10mm with double-edge sharpening design. After blade wear, operators can re-grind both sides repeatedly for reuse, greatly reduce spare part replacement frequency and later operating cost. High-hardness alloy cutting blades maintain sharpness even after long-term processing of hard dry wood.

4. Fine Uniform Wood Chip Output, Meet Multiple Recycling Standards

Final crushed wood chip size: thickness<2mm, length<15mm, consistent particle shape. Uniform fine chips are perfect for garden mulch, livestock bedding, biomass power generation raw materials, organic compost and industrial recycling materials, helping customers raise secondary sales value of wood waste.

5. 360° Rotatable High-Rise Discharge Outlet, Flexible Discharging Control

1700mm high discharge spout supports 360° free rotation, with adjustable baffle inside to control chip throwing range and distance. It can directly discharge chips into trucks, collection bags and storage bins without secondary manual handling, greatly save loading labor cost for large-volume waste disposal.

6. Road-Towable Mobile Chassis, Perfect for Scattered Field Operation

Integrated heavy-duty welded chassis, matched with 165/70R13 tires and 13-inch wheel hub, fitted with standard traction frame, folding hand crank support jack and safety rear taillights. The whole machine complies with short-distance road towing standard, can be towed by pickup trucks and tractors to move between forest land, orchards, urban green belts and multiple job sites freely, no need fixed workshop installation. Overall dimension: 3000mm 1250mm1700mm, compact structure for transportation and storage.

7. Integrated Central Control & Electric Start, User-Friendly Operation

Electric start design avoids tedious hand cranking startup; integrated central control panel concentrates all operation buttons, beginner operators can master startup, feeding speed adjustment, reverse control and shutdown in 5 minutes, reduce training cost for farm workers and landscaping staff.

Full Technical Parameter List

Item Specification
Driving Power 32HP Diesel Engine
Knife Roller Rotation Speed 3000rpm
Max Cutting Branch Diameter 120mm
Final Wood Chip Size Thickness<2mm, Length<15mm
Blade Configuration 1 fixed blade + 4 movable blades (5pcs total)
Blade Thickness 10mm, double-edged reusable after regrinding
Feeding Roller Diameter 300mm, anti-block reverse toothed roller
Feeding Mode Intelligent hydraulic auto-feed with anti-jam auto-reverse
Discharge Outlet Height 1700mm, 360° rotatable adjustable spout
Startup Mode Electric start, integrated central control
Mobile Chassis 13-inch wheel, 165/70R13 tire, towing frame + folding jack + safety taillight
Overall Dimension 3000mm1250mm1700mm
Shipping Package Size / Gross Weight 3000mm1220mm1210mm, 900kg wooden case

Application Scenarios

  • Orchard pruning waste crushing (apple, orange, peach tree branches)

  • Municipal landscaping & park green waste disposal

  • Forestry logging residual branch and trunk shredding

  • Farm crop straw, vine branch, bamboo crushing

  • Biomass power station raw material pretreatment

  • Garden mulch, organic fertilizer raw material processing

How to Evaluate ROI of This Wood Chipper Shredder

Investing in professional mobile wood chipper equipment brings stable and considerable economic returns for landscaping teams, farms and waste recycling enterprises. The return on investment can be evaluated from labor saving, transportation cost reduction and waste value improvement:

1. Transportation Cost Reduction

Bulk uncrushed tree branches and garden waste occupy huge space and produce high freight costs. After being crushed into uniform fine chips by our wood chipper, the material volume is reduced by more than 75%, which greatly cuts storage pressure and repeated transportation expenses. It effectively solves the problem of high logistics cost and low transportation efficiency of loose wood waste.

2. Waste Value Upgrade

Disordered waste branches have almost no reuse value and even require disposal fees. After professional crushing, uniform wood chips can be used for garden mulching, livestock bedding, organic composting and biomass energy fuel. The processed finished materials are more marketable and realize secondary profit conversion of waste resources.

3. Massive Labor Cost Savings

Traditional manual cutting, sorting and stacking of branches requires a lot of labor and time. Our fully automatic hydraulic feeding wood chipper realizes one-stop feeding and crushing, which can replace 2–3 manual workers for long-term outdoor operation, greatly reducing daily labor costs and improving overall work efficiency.

4. Long Service Life & Low Comprehensive Cost

With daily standard maintenance such as blade sharpening and lubrication, this diesel wood chipper can work stably for 10–15 years. With super low failure rate and minimal later maintenance investment, most users can recover the equipment cost within 18–24 months and obtain long-term stable profit benefits.

Shengxin-with-Screen-Mesh-Shandong-China-Mobile-Wood-Tree-Branch-Chipper (3)

Name1

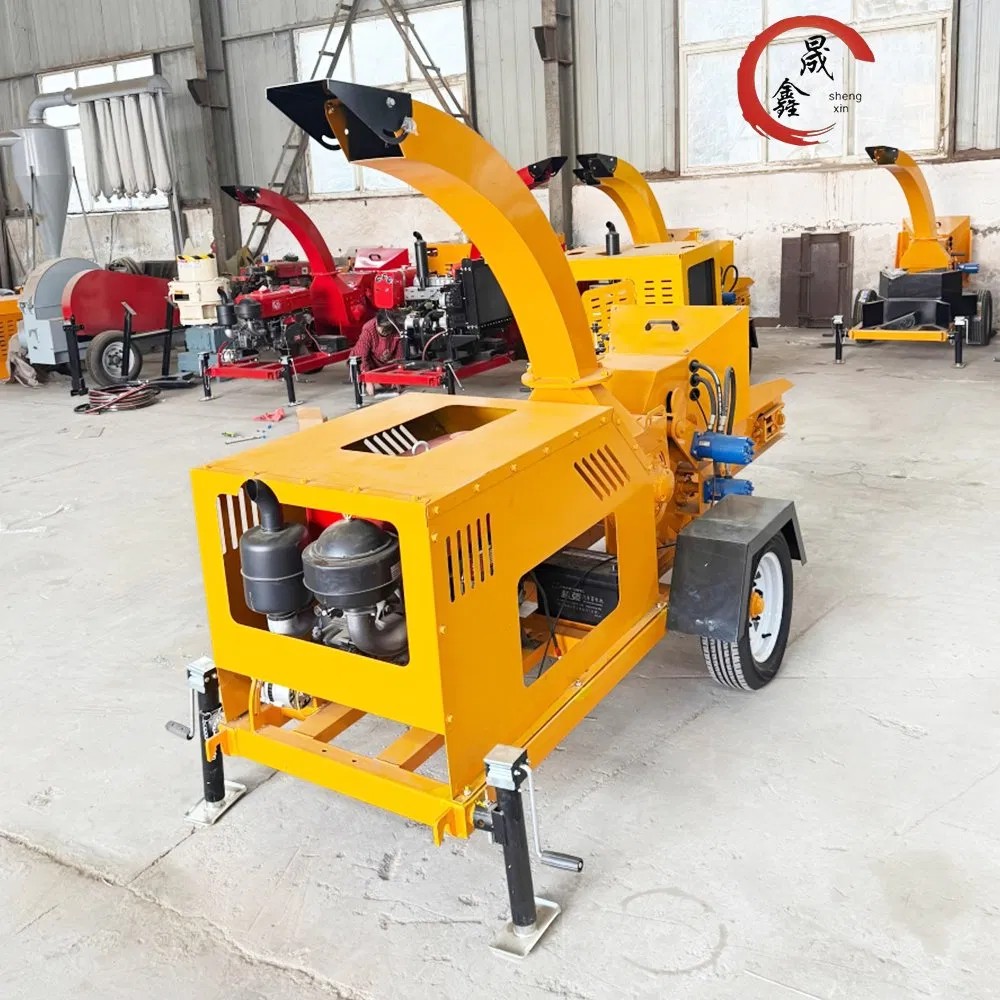

Shengxin-with-Screen-Mesh-Shandong-China-Mobile-Wood-Tree-Branch-Chipper (4)

Name2

Why Partner With Our Factory

1. Professional Manufacturing Excellence

Dezhou Shengxin Machinery Equipment Co., Ltd. is a professional manufacturer integrating R&D, production, sales and after-sales service of agricultural and environmental protection recycling machinery. We own a 50,000㎡ standardized production workshop, equipped with CNC precision cutting, automatic robotic welding and professional mechanical durability testing laboratory. All wood chippers undergo strict factory testing to ensure stable performance and long service life.

2. Direct Factory Competitive Pricing

We provide 100% factory direct sales without middlemen markup. Transparent pricing system and bulk order discount policies are available for global distributors, engineering projects and large-scale farm users, helping customers control procurement costs effectively.

3. Rich Global Export Experience

Our machinery has been exported to more than 65 countries and regions worldwide. We are proficient in international logistics, standard export packaging, complete customs clearance documents and regional standard adaptation, providing one-stop export service for overseas customers.

4. Customized OEM & ODM Solutions

We support personalized customization according to customer needs: machine color, logo printing, discharge angle adjustment, power configuration optimization and other personalized modifications, to adapt to local working conditions and market sales needs.

Frequently Asked Questions

Q1: What kind of materials can this wood chipper process?

A1: It is widely applicable to tree branches, orchard prunings, twigs, shrubs, corn stalks, bamboo, garden green waste and other wood biomass materials, with a maximum cutting diameter of 120mm.

Q2: Is this machine easy to get stuck during working?

A2: No. Equipped with intelligent hydraulic anti-jam system and reversible feeding roller, it automatically reverses and releases materials when encountering blocked materials, effectively avoiding jamming and protecting the engine and cutter group.

Q3: Is global shipping and customized service available?

A3: Yes. We support global container transportation, optional FOB, CIF, DDP trade terms, and adopt moisture-proof wooden box packaging for long-distance sea transportation to ensure equipment integrity.

Q4: What are the advantages of new machines compared with second-hand wood chippers?

A4: Brand-new equipment has complete certification, upgraded anti-jam safety design, more stable power performance and official complete warranty. It avoids frequent failures, high maintenance costs and shutdown losses of refurbished second-hand machines.

After-Sales Service & Warranty Policy

1. Standard Warranty

12 months or 2000 working hours (whichever comes first) for core engine, hydraulic and electrical components; vulnerable parts are supplied at factory cost price.

2. Extended Warranty Service

Optional extended warranty up to 36 months for commercial large-scale users to ensure long-term stable operation of equipment.

3. Global Technical Support & Training

24/7 online remote technical guidance, free machine operation and daily maintenance video training. On-site commissioning and training service can be provided for large order projects.

4. Fast Spare Parts Supply

We have complete spare parts inventory, core vulnerable parts can be delivered within 48 hours, minimizing equipment downtime.

5. Lifetime Technical Support

Permanent free technical consultation and after-sales follow-up, supporting long-term equipment maintenance and upgrade guidance.

Request a Quote

If you are looking for a high-efficiency, durable and cost-effective mobile wood chipper shredder, welcome to contact our professional sales team. We can provide tailored quotation, detailed technical parameter sheet, field working videos, real customer cases and factory inspection arrangement for you.
