Why Choose Our Straw Crushing & Kneading Machine？
Our Straw Crushing and Kneading Machine is a high-efficiency forage silage processor specially designed for processing corn stalk, hay and all kinds of agricultural straw, perfectly serving livestock feed production.
Integrated crushing and kneading design delivers over 90% fiberizing rate for corn stalk, turning rigid raw straw into soft filamentary forage. Equipped with 15KW main motor and 2.2KW auto feeding motor, this corn stalk crusher reaches 8 tons hourly output, compatible with both dry and high-moisture forage. Fitted with 48 wear-resistant manganese steel blades and 1900rpm high-speed rotor, the hay silage processor adjusts filament length from 10mm to 120mm freely to match different silage storage standards.
This mobile forage crushing machine supports 6-meter horizontal throwing discharge to avoid secondary material transport. Equipped with moving casters, the mobile straw shredder realizes flexible transfer inside farms. It runs on standard 380V industrial voltage, compact structure with total weight only 600kg.
As a professional agricultural straw processor and reliable high moisture forage cutter, it greatly improves livestock feed palatability and digestion rate, effectively cutting labor and production costs for small & medium farms, feed plants and silage factories, which makes it the ideal silage making machine for global breeding industry.
| Product Photo

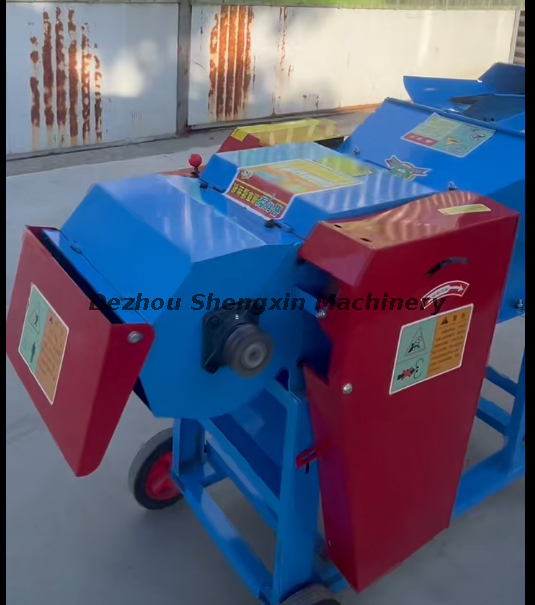

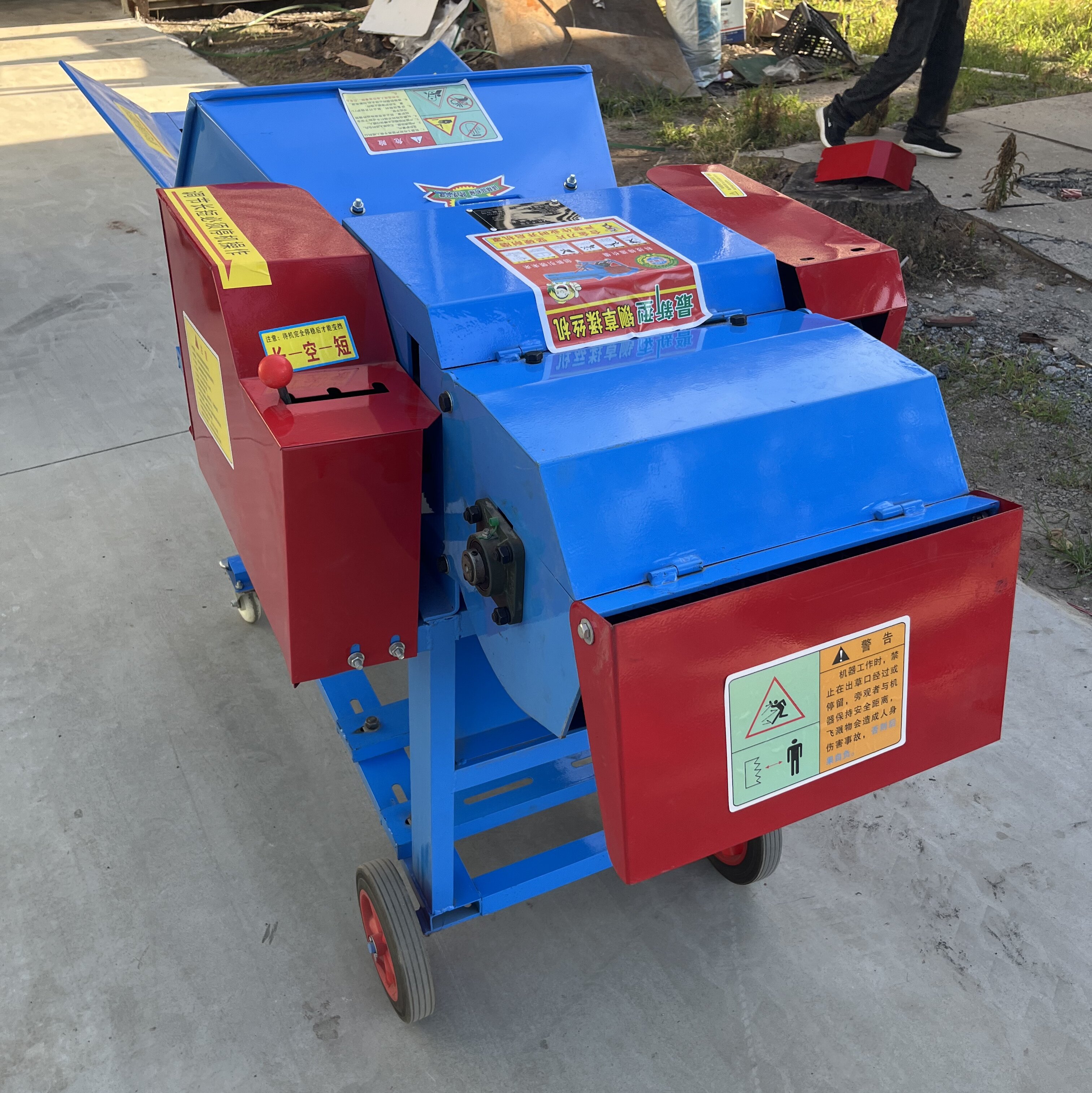

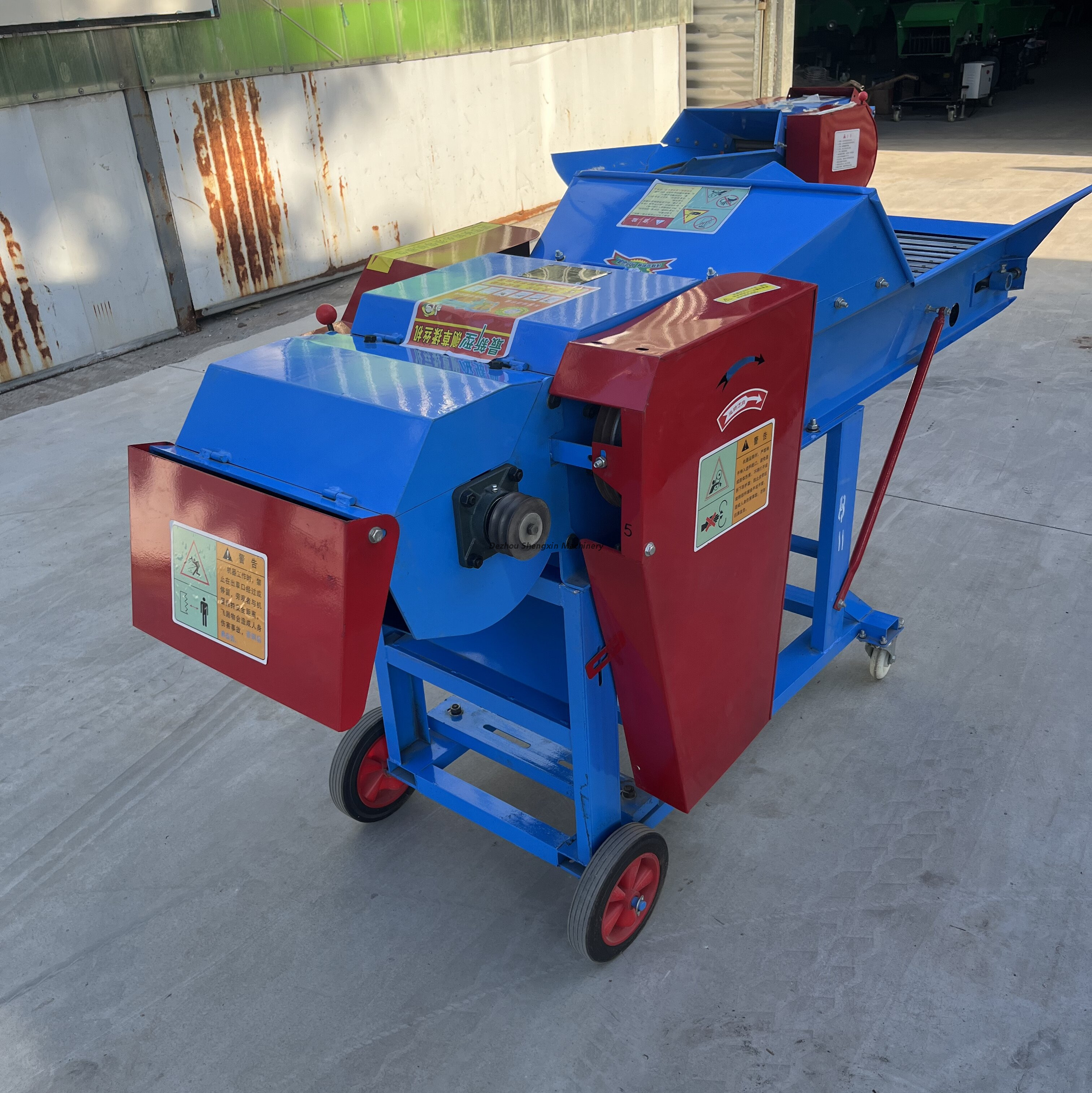

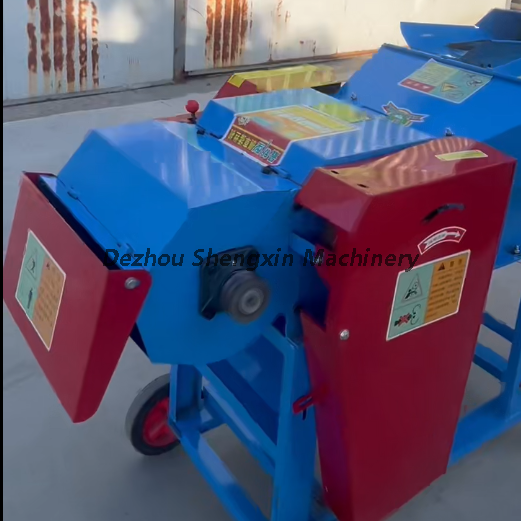

Straw Crushing and Kneading Machine Whole Machine Front View | Corn Stalk Crusher For Silage Feed

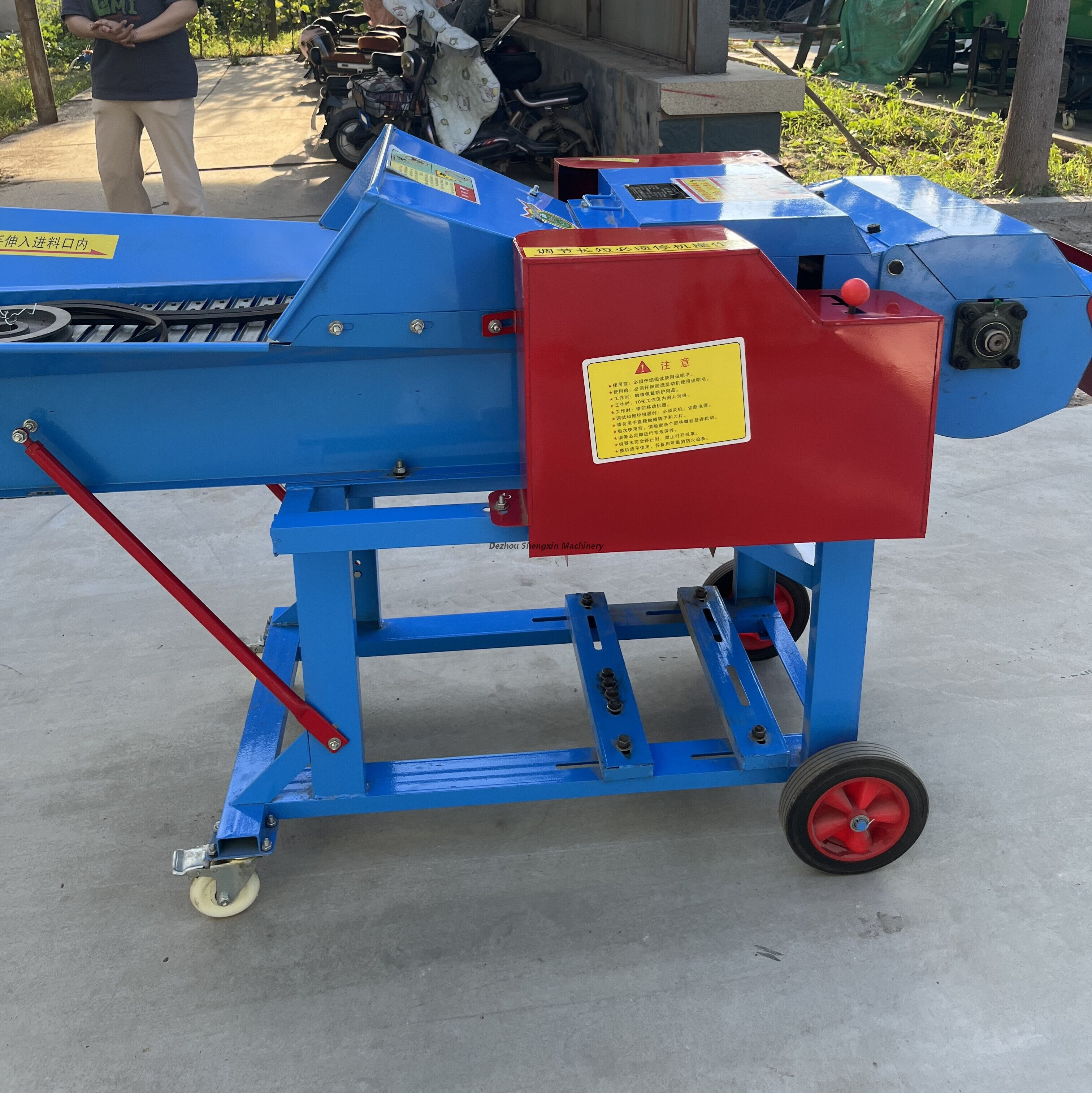

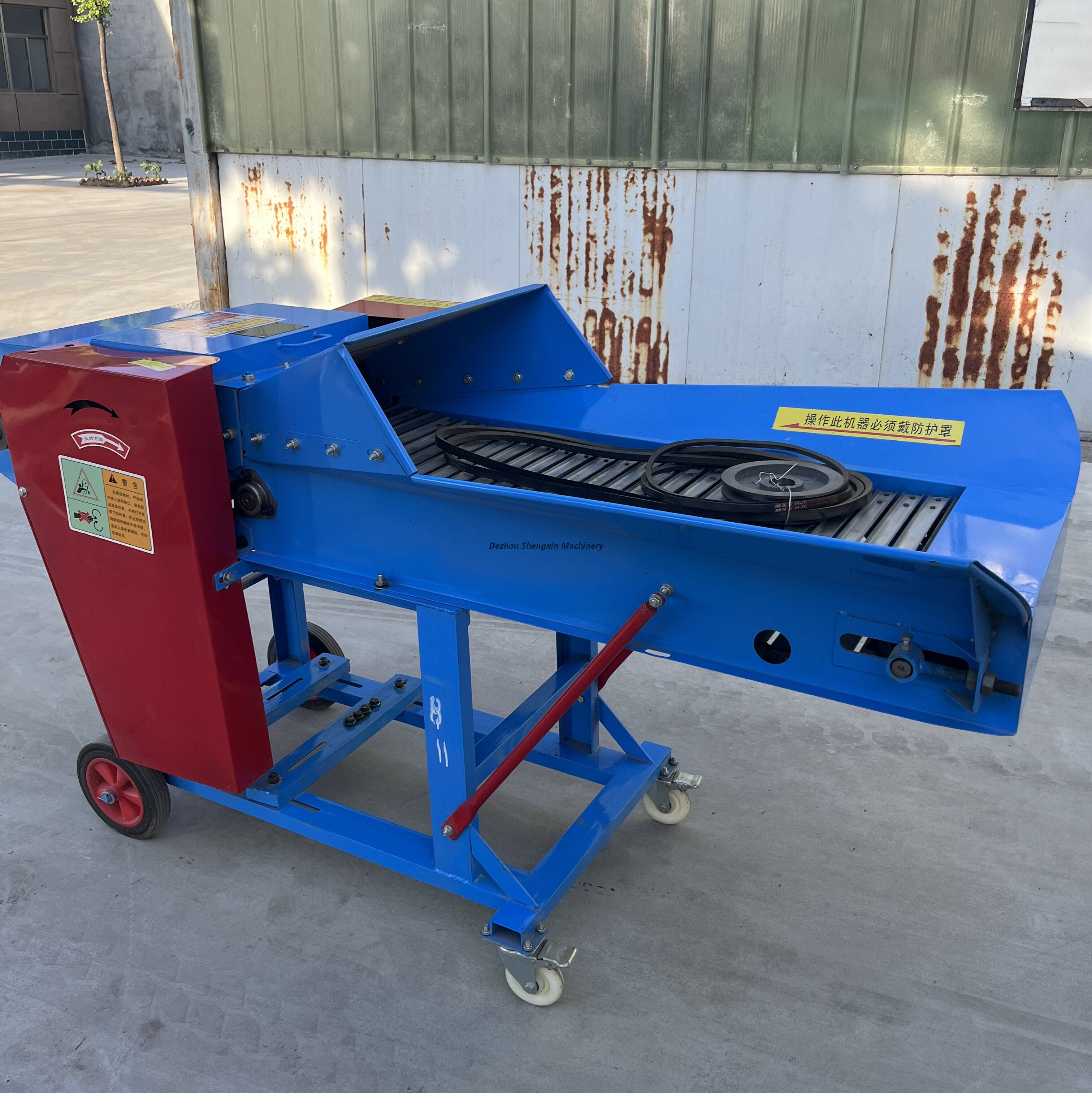

Mobile Straw Shredder Side View With Walking Wheels | Agricultural Straw Processor

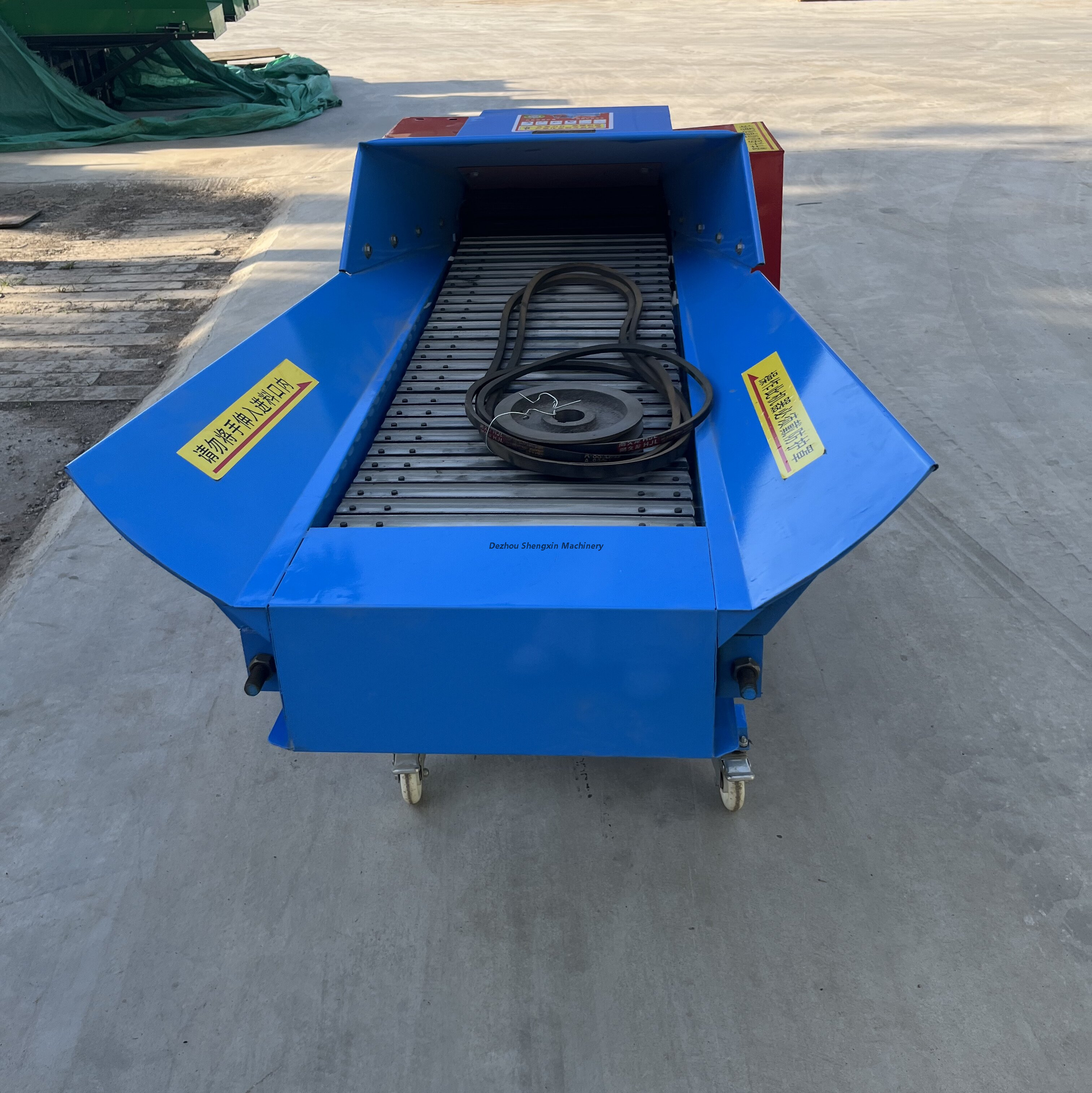

Forage Crushing Machine Feeding Conveyor Close-up | High Moisture Forage Cutter
| Product Highlights
1. One-Piece Crushing & Kneading, Ultra High Fiberizing Rate for Better Animal Digestibility
This multifunctional forage processor integrates crushing, tearing and kneading molding in one process. For fresh corn stalk, the fiber kneading rate can reach ≥90%, turning hard rigid straw into soft filamentous forage. Soft kneaded feed greatly improves palatability for cattle, sheep and ruminants, boosts feed intake and digestion rate, reduces feed waste effectively. The finished material length is stepless adjustable from 10mm to 120mm, you can switch fine crushing for young livestock and rough long fiber for adult cattle freely.
2. Large Capacity Stable Output, Suitable for Medium & Large Scale Farm Batch Processing
Equipped with 15KW main spindle motor + 2.2KW feeding auxiliary motor, matched with 1900RPM high-speed rotor spindle, the machine delivers steady 8 tons per hour processing capacity when raw straw moisture is between 55%-65%. Only 4-5 operators are needed for full-line feeding, processing and collection, balancing high productivity and labor cost control perfectly. It works continuously for long shifts without power drop or blockage, perfectly matching commercial feed farms and large breeding bases daily production demands.
3. Wear-Resistant Manganese Steel Blade Group & Robust Body Structure for Long Service Life
Comes with total 48 pieces high manganese steel integrated blades, undergone quenching hardening treatment, anti-shock, anti-abrasion and anti-breakage under high-speed impact. The whole machine weighs 600kg with solid welded steel frame, shock-resistant and anti-vibration during heavy-load operation, not easy to deform after years of outdoor continuous work. Thickened feeding chute avoids material splash, sealed transmission structure reduces dust leakage, creating clean and safe working environment.
4. Long-Distance Blowing Discharge & Mobile Design, Flexible Site Layout
Support 6-meter horizontal throwing discharge, finished forage can be directly sent to stacking area, silage pool or transport trolley, eliminating manual secondary carrying and saving labor cost greatly. Universal moving wheels are installed at the bottom, allowing free shifting between farmland, feeding house and processing workshop, no fixed foundation installation required. 380V standard industrial voltage fits farm power supply standard, stable operation with low failure rate.
5. Safe Operation & Easy Daily Maintenance
Built-in overload protection and anti-jam safety device to prevent motor burnout and accidental injury during blockage. Open-type maintenance hatch is reserved for fast blade replacement, internal residue cleaning and routine inspection. Transmission belt and wearing parts are general standard accessories, easy local procurement globally, no complicated professional maintenance required for daily upkeep.
| Complete Technical Parameter Table
| Item | Technical Specification |
| Straw Fiberizing Rate | ≥90% (for corn stalk) |
| Hourly Productivity | 8 Ton/h (55%-65% straw moisture, 4-5 workers) |
| Finished Material Length | 10–120 mm Adjustable |
| Matching Power | Main shaft: Y160L-4,15KW; Feeder: YWD4-9-2,2.2KW |
| Working Voltage | 380V |
| Main Rotor Speed | 1900 r/min |
| Horizontal Blowing Distance | 6 m |
| Overall Machine Weight | 600 KG |
| Overall Dimension (L×W×H) | 2800×850×1150 mm |
| Blade Quantity & Material | 48 Pcs, Wear-Resistant Manganese Steel |
| Application & After-Sales Service
Application Scope
Widely process corn stalk, wheat straw, rice straw, alfalfa, sorghum stalk and other crop residues for cattle, sheep, goat, cow, pig and poultry feed production. Suitable for individual large farms, cooperative breeding parks, silage making plants and agricultural waste recycling stations.
Factory After-Sales Commitment
12-month whole machine warranty (excluding consumable blades);
Long-term preferential supply of spare parts, remote online technical troubleshooting;
Pre-shipment full test running to guarantee stable performance before delivery;
Voltage, color and partial structure customization available for different country demands.
