Product Overview

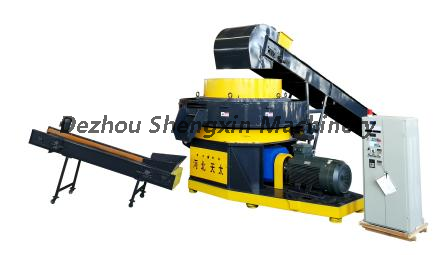

11J‑3500A biomass briquette press machine is a professional and high‑efficiency forming equipment specially designed to convert a wide range of biomass waste into high‑density solid fuel blocks.It is an ideal solution for biomass fuel production plants, large‑scale farms, wood processing factories, agricultural waste recycling stations, new‑energy projects and waste‑to‑energy businesses. By turning low‑value crop residues into high‑calorific‑value biomass fuel, this machine helps you reduce raw‑material disposal cost and create extra profit‑making channels.
Wheat Bran Briquetting Process
Wheat bran briquetting process is a continuous production method that converts loose wheat bran into high-density, uniform briquettes. The process mainly includes three stages: raw material conveying, high-pressure briquetting, and finished product discharge.
In the first stage, the raw material wheat bran is evenly transported to the briquetting machine through a belt conveyor. This step ensures stable and continuous feeding, avoids material blockage, and prepares for the subsequent forming process.
In the second stage, the loose wheat bran enters the briquetting press and is compressed under strong mechanical pressure. Through high-pressure extrusion, the wheat bran is formed into dense, curved or block-shaped briquettes. This forming process improves the density and strength of the product, reduces breakage, and makes storage and transportation more convenient.
In the final stage, the formed wheat bran briquettes are discharged from the machine outlet. The finished briquettes have a regular shape, stable quality, and high density. They can be easily stacked, stored, transported, or further packaged for sale.
This wheat bran briquetting production line is widely suitable for grain processing plants, feed mills, biomass fuel factories, and agricultural waste recycling projects. It helps customers turn loose wheat bran into high-value-added products, reduce storage space, lower transportation costs, and improve overall production efficiency.
Working Capacity & Finished Product
This briquette machine delivers a stable working capacity of 2.5‑3.5 tons per hour.It is suitable for raw materials such as corn straw, wheat straw, rice husk, wood chips, sawdust, tree branches and other agricultural & forestry residues.
Required raw‑material moisture: less than 25%
Finished fuel size: 32×32 mm square‑column briquette
Fuel block density: 0.6‑0.8 g/cm³
Compressed biomass blocks occupy less storage space, feature high combustion efficiency and greatly cut down your long‑distance transportation expense.
Core Configuration & Main Components
Powered by a heavy‑duty 110 KW main motor, the machine adopts reducer transmission to ensure smooth and stable operation under long‑time continuous‑working conditions.
Moulds and pressing rollers: forged wear‑resistant steel, alloy surface hardening treatment for long service life
Main shaft: 40Cr high‑quality alloy steel, processed through rough‑turning, quenching, tempering and fine‑grinding
Heating system: 4KW × 4 groups independent heating device to improve briquette forming rate
Lubrication system: full‑automatic oil‑injection system, reduce manual maintenance workload
Electric components: well‑known Zhengtai brand parts with soft‑start protection
Complete Unit Scope of Supply
The full set of 11J‑3500A biomass briquetting production line includes:
Briquetting main host
Feeding conveyor
Discharging conveyor
Electric control cabinet
Heating assembly
Automatic lubrication & oil‑injection system
Outstanding Advantages
✅ Foundation‑free InstallationIt can be placed directly on flat ground, no concrete foundation needed, which saves your construction budget and installation cycle.
✅ Low Failure & Easy MaintenanceAutomatic lubrication reduces friction loss of moving parts; famous‑brand electric parts guarantee stable performance. Operators can finish routine maintenance work quickly without professional skills.
✅ Wide Raw‑material AdaptabilityWorks well with multiple kinds of agricultural and forestry waste. One machine can process different biomass materials for diversified production.
✅ User‑friendly OperationSimple control panel and clear operating logic, low requirement for workers’ technical experience.
Technical Specification
Model: 11J‑3500A
Main Motor Power: 110 KW
Production Output: 2.5‑3.5 t/h
Machine Weight: 6.5 Tons
Overall Dimension(L×W×H): 3235×2200×1945 mm
Discharge Size: 32×32 mm square block
Raw‑material Moisture: ＜25%
Mould Quantity: 72 pcs
After‑sales Service & Support
Our factory provides 12‑month full‑machine warranty and lifelong online technical guidance.Our technical team can offer professional suggestions on production‑line layout according to your raw‑material condition, target hourly output and local fuel‑market demand. We can also supply spare parts with favorable price in the long run.
If you are searching for a durable, high‑output and cost‑effective biomass briquette making machine, please feel free to contact us. We are ready to provide you with detailed technical specifications, working videos and competitive factory‑direct price.
