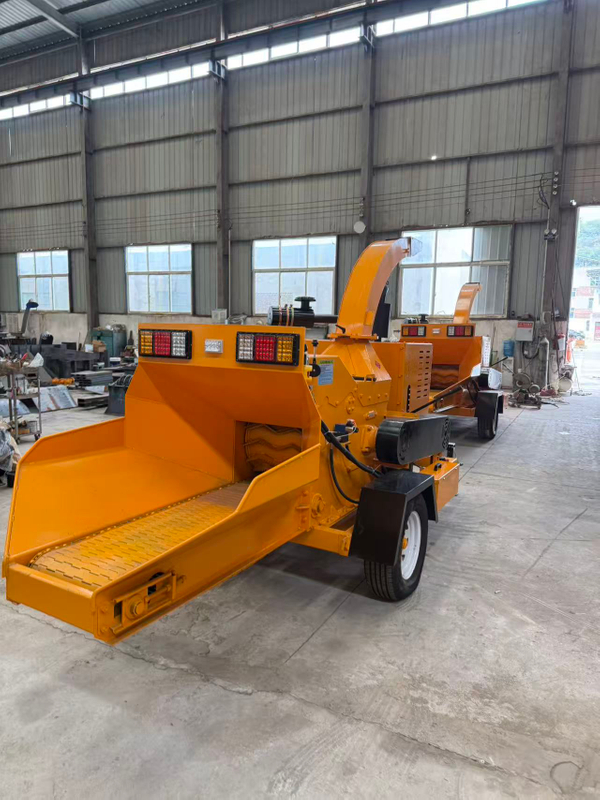

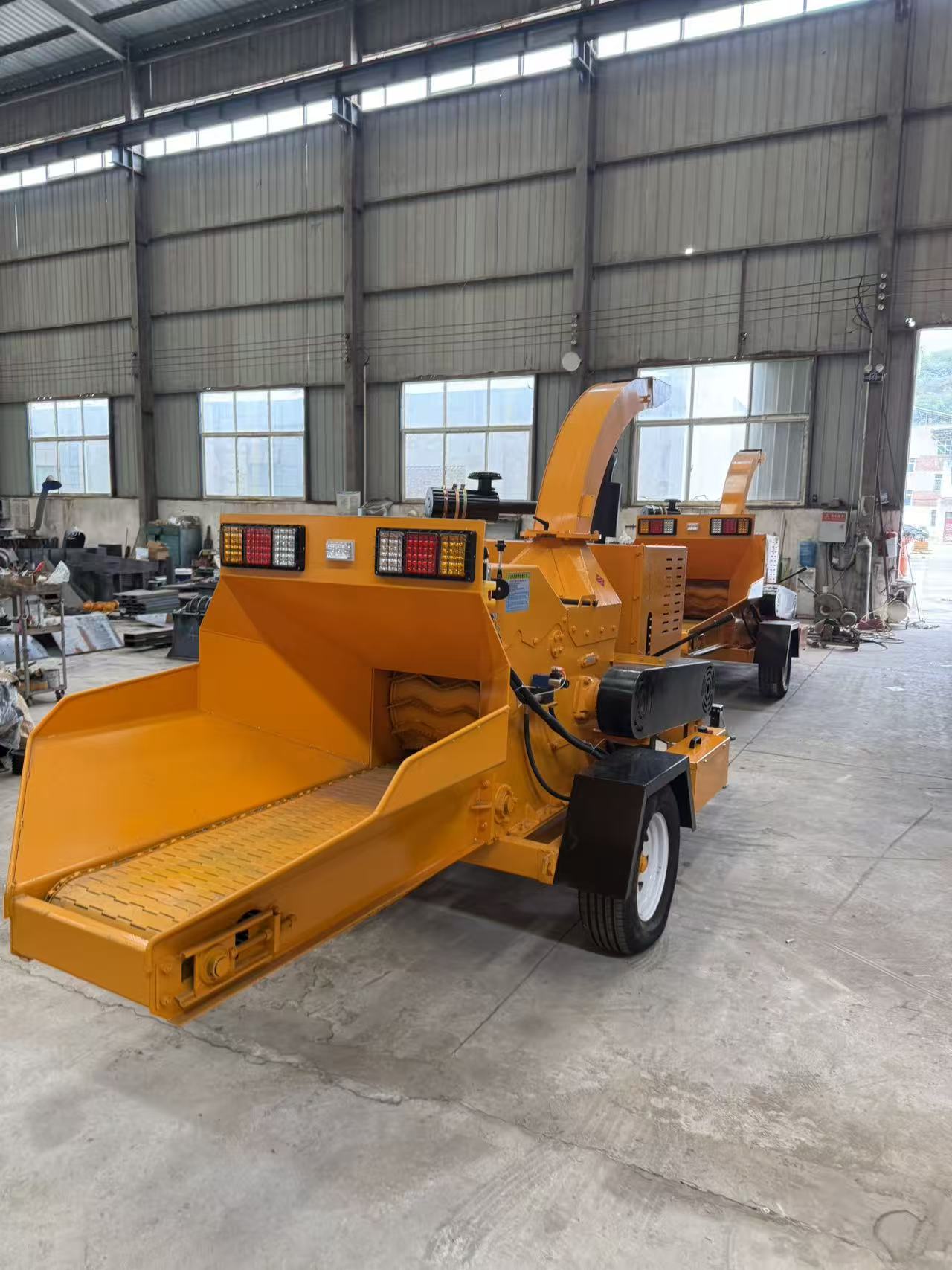

SX‑6140 Tow‑able Diesel Wood Branch Shredder Tree Chipper

Overview

The LY‑6140 tow‑able mobile wood‑branch shredder belongs to heavy‑duty biomass‑processing machinery. It is professionally developed to crush tree branches, crop straw, twigs, shrub waste, orchard prunings, garden green rubbish and other raw materials.

Main Technical Parameters

• Supporting Power: 6108 six‑cylinder diesel engine

• Driving Mode: Independent hydraulic motor for crushing roller and discharge conveyor

• Overall Dimension (L×W×H): 5600×2800×2700mm

• Roller Size (top opening × bottom opening × height): 3100×2200×1300mm

• Steel‑plate Thickness: Crushing‑roller plate 4 mm, heavy‑duty base‑frame plate 6 mm

• Optional Folding‑type Discharge Conveyor Length: 6 m

• Hourly Production Capacity: 4‑6 tons per hour

• Adjustable Finished‑material Size: 20‑35 mm; matched replaceable 25 mm and 35 mm screen bottoms

• Total Quantity of Hammers and Blades: 72 sets of wear‑resistant hammer blades

• Feeding Method: Hydraulic automatic feeding

• Discharge Mode: 360‑degree rotatable discharge port

Core Advantages

1. Independent diesel‑engine drive, no requirement for external power supply, perfectly adapted to remote‑area outdoor operations.

2. Hydraulic anti‑jam feeding structure. When thick branches cause stuck‑up, the feeding roller can reverse automatically to prevent motor burnout and machine shutdown.

3. Double‑sided‑available alloy hammer blades, high wear‑resistance. Blades can be flipped for secondary use, greatly lowering your later‑stage replacement cost.

4. 360° rotatable discharge outlet. Paired with the folding‑type conveyor belt, crushed‑out materials can be stacked in fixed zones, saving your labour cost for material collection.

5. Thickened‑plate welded heavy‑duty frame, strong impact‑resistance. The main body will not easily deform under long‑time high‑intensity crushing‑work.

6. Two optional configurations: equipped‑with / without folding discharge conveyor belt. You can select the suitable version in accordance with your working‑site conditions.

7. Simple‑to‑operate control panel. Workers can master machine operation within a short training period.

8. Good mobility with trailer‑style design, convenient for towing and shifting among multiple working‑places.

Wide Application Scenarios

• Orchard pruning‑branch disposal for fruit farms

• Corn straw, wheat‑straw and crop‑stalk crushing on planting farms

• Parks, residential‑zone and municipal‑greening waste disposal

• Forest‑land fallen‑branch and shrub‑waste processing

• Biomass‑raw‑material pretreatment for fertilizer‑making, fuel‑pellet factories

• Waste‑wood recycling work for timber‑processing yards

Package & Delivery

After‑sales Service

1. One‑year full‑machine warranty for factory‑caused quality defects.

2. Lifetime online technical‑operation guidance and troubleshooting support.

3. Long‑term stable supply of original spare‑parts at factory price.

4. Operation manual, parameter sheet and maintenance notes will be provided together with goods.
