6155‑Type Tow‑able Wood Chipper
1. Product Overview
Our 6155‑type tow‑able wood chipper is a heavy‑duty, trailer‑mounted mobile wood shredder specially engineered for outdoor‑site wood waste disposal. Widely applied in landscaping projects, forestry processing, farm branch disposal, orchard pruning waste treatment and green‑recycling work, this machine can crush tree branches, logs, dead diseased timber, shrub waste and wooden‑trim scraps into uniform‑sized wood chips.The finished wood chips can serve as garden mulch, organic fertilizer raw material, biomass fuel and animal bedding, bringing great‑added‑value for your wood waste.

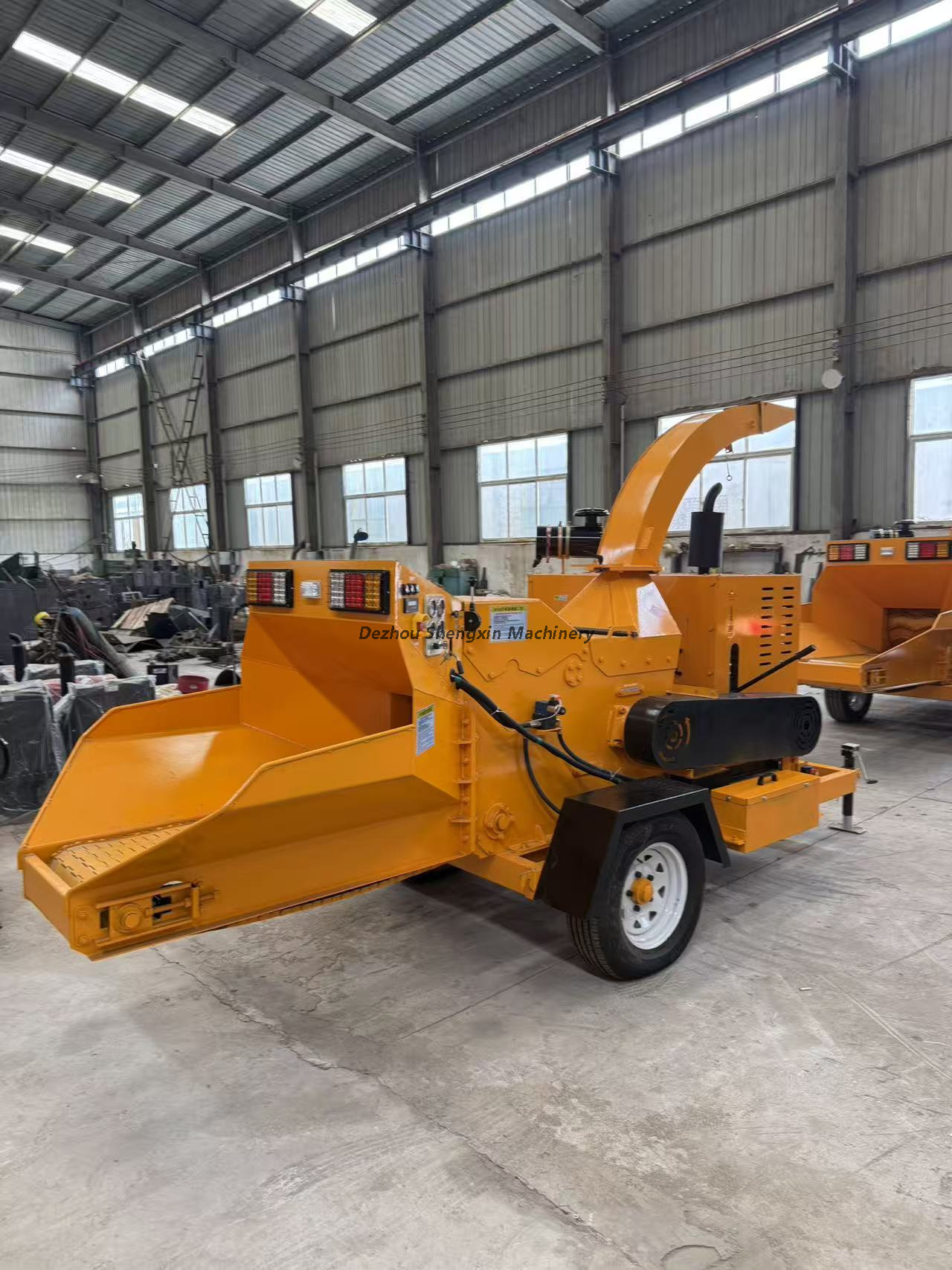

Side‑view of Tow‑able Wood Chipper

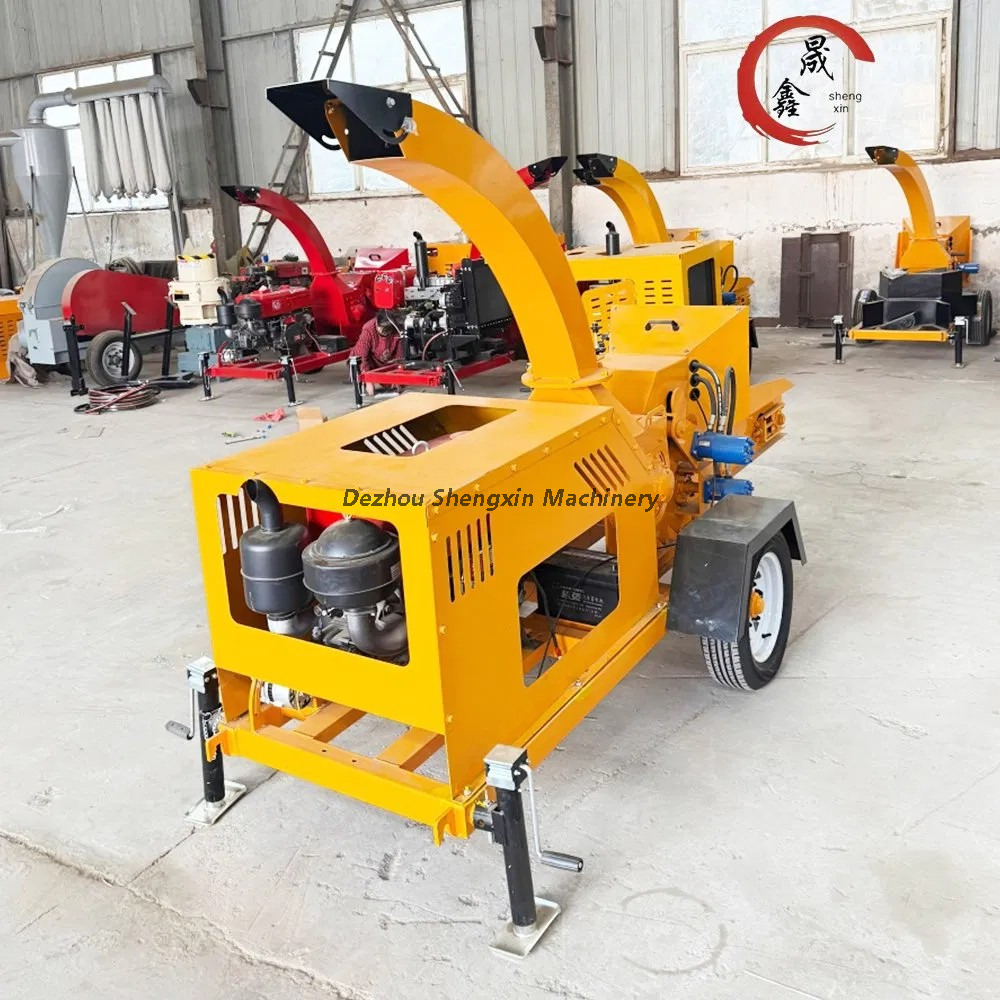

Rear Structure of Mobile Wood Shredder

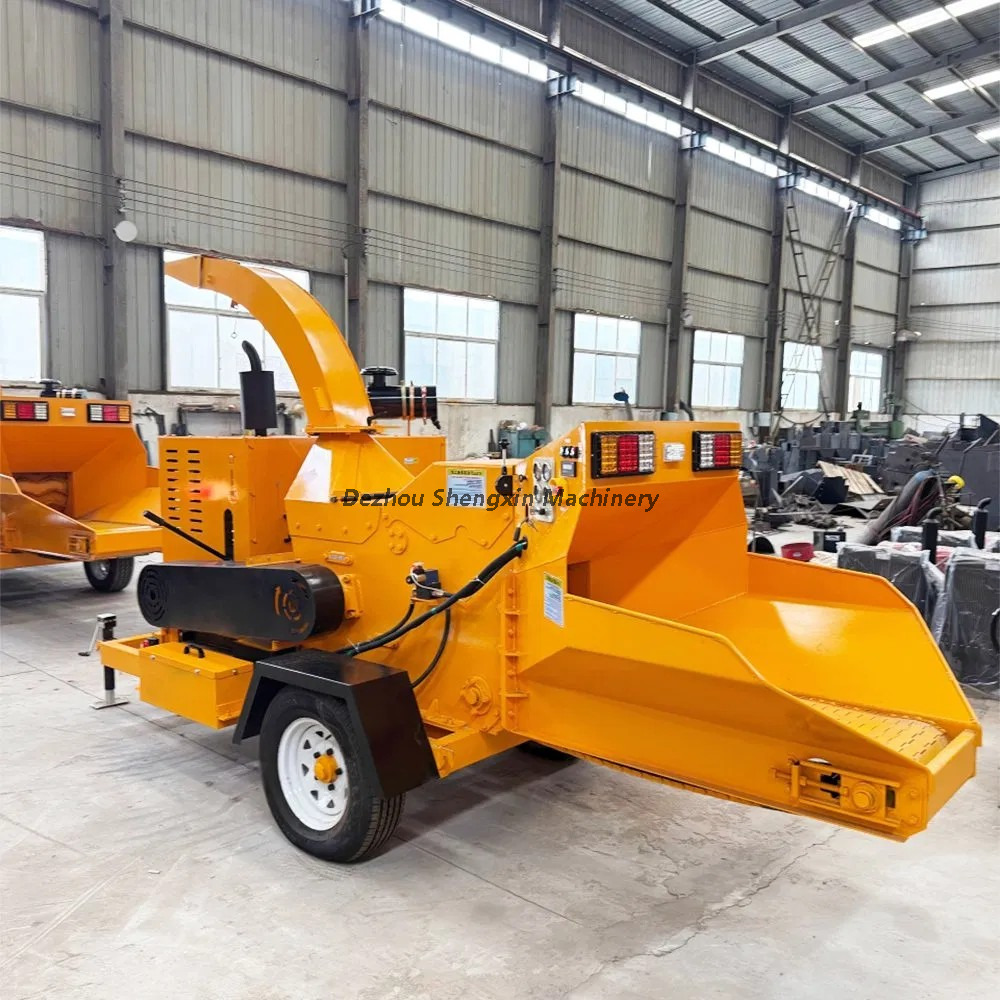

Front‑side Working View of Branch Crusher
2. Core Technical Parameters
| Overall Dimension | 4200 × 1850 × 2600 mm |
| Net Weight | 2400 kg |
| Power Unit | Huadong 4105 diesel engine, 75 KW / 102 HP, electric‑start mode |
| Fuel Tank Capacity | 80 L, average fuel consumption: 10 L per hour |
| Hydraulic‑oil Tank Volume | 30 L |
| Maximum Diameter of Raw‑material Feeding | ≤ 300 mm |
| Working Production Capacity | 3‑5 tons per hour |
| Crushing Qualified Rate | ≥95% |
| Rotor Diameter | 560 mm, main‑shaft rotating |
| speed | 2200 rpm |
| Blade Configuration | 5‑piece cutting blades (1 fixed blade + 4 movable sharp blades) |
| Feed‑roller Structure | 500 mm‑diameter reversible toothed roller |
| Feeding System | Intelligent hydraulic pulsed auto‑feed for anti‑jam protection |
| Discharge Outlet | 360‑degree rotatable, adjustable discharge height and throwing‑out distance |
| Mobile Chassis | 2‑piece 225/70R15 tyres plus manual lifting support legs for trailer towing |
3. Outstanding Advantages
-
Flexible Trailer‑type MobilityEquipped with road‑going tyres and supporting legs, the wood chipper can be towed by a tractor or pickup truck. You are allowed to move the machine freely between gardens, woodland zones and farms, perfectly adapting to scattered outdoor working‑sites.
-
Anti‑jamming Intelligent Hydraulic FeedingBuilt‑in load‑sensing hydraulic feeding system. When thick or hard wood causes overload, the machine will automatically adopt intermittent pulsed feeding to prevent blade‑blocking, engine stalling and component damage. It greatly cuts down manual‑cleaning work‑load.
-
Safe‑operation‑oriented DesignAn emergency‑stop button is arranged on the feeding hopper. Operators can shut‑down the machine right away in case of unexpected danger, which effectively guarantees on‑site working safety.
-
360° Adjustable Discharge PortThe rotatable outlet enables you to throw wood‑chips to trucks, containers or designated stacking zones freely. You can adjust the throwing distance and outlet height to match your loading‑requirements.
-
Heavy‑duty Durable Blade GroupHigh‑strength alloy‑steel movable blades cooperate with the fixed blade for sharp, steady cutting. High crushing efficiency and long service life lower your later‑period replacement costs.
-
Low‑maintenance Diesel‑power SystemThe mature‑quality 75‑KW diesel engine delivers strong torque for thick‑log shredding. It runs steadily under long‑time heavy‑load outdoor working conditions.
4. Wide Application Scenarios
Municipal landscaping branch‑crushing work
Orchard and vineyard pruning‑waste recycling
Forest‑farm deadwood and leftover log processing
Biomass‑fuel wood‑chip production
Park green‑waste disposal and garden mulch‑making
Rural‑area agricultural‑wood waste re‑utilization
5. Our Service Promise
We are the professional factory‑direct manufacturer for wood processing machinery. Custom‑tailored service for power‑configuration, blade‑type and chassis‑structure is available. Every machine will go through strict running‑inspection before delivery. Long‑term spare‑parts supply and after‑sales technical guidance are provided for all overseas clients.
