Product Overview

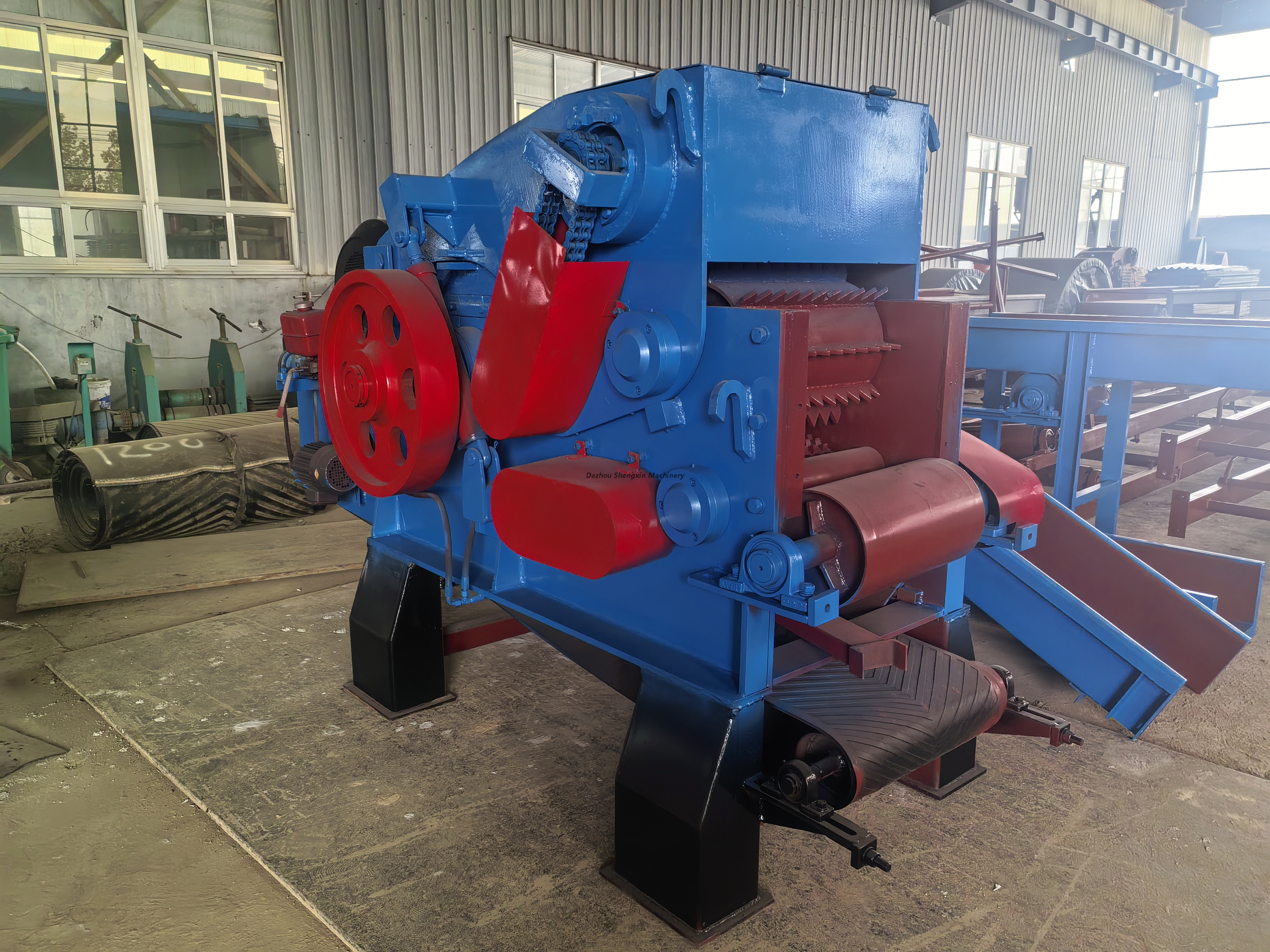

Model 217 Drum‑type Wood Chipper is a heavy‑duty wood processing machine powered by a 6108 diesel engine (180 HP). Without relying on external electric power, it is perfectly suitable for outdoor, off‑grid wood chipping work at forest farms, biomass power stations and wood waste recycling yards.
This machine is fitted with a 5‑meter automatic feeding conveyor and a 10‑meter long discharging conveyor belt. It can crush raw materials including logs, tree branches, wood slabs, tree trimmings and garden waste into uniform‑sized wood chips.
Core Advantages
-
Diesel‑powered, flexible movement: 180HP 6108 diesel engine, free from power‑supply limits, work anywhere on‑site.
-
Durable cutting blades: Flying knives made of forged steel, bottom knife made of 9‑silicon steel, long service life and stable cutting effect.
-
Fully‑automatic feeding system: Upper‑2 & lower‑2 feed‑in rollers, automatic feeding greatly reduces manual‑feeding risk.
-
Smart remote‑control operation: 2 remote‑controllers are included, supporting automatic start‑stop according to material load, saving labor cost.
-
Large‑capacity conveyors: 5‑meter feeding belt and 10‑meter discharging belt improve continuous working efficiency.
Application Scope
‑ Biomass power plant raw‑material processing ‑ Particle‑board, fiber‑board and wood‑processing factories ‑ Forestry pruning waste, orchard branch disposal ‑ Garden green waste recycling ‑ Wood pallet, waste timber chipping
Main Technical Parameters
‑ Model: 217 Drum‑type Wood Chipper
‑ Main Power: 6108 Diesel Engine, 180 HP, equipped with 30kw generator
‑ Feeding Width: 700 mm‑ Feeding Conveyor: 5 m length‑ Discharging Motor: 2 kw‑ Discharging Belt: 800 mm width, 10 m length, nylon herringbone belt‑ Control System: Special‑purpose control cabinet, 2 remote‑controllers, load‑sensing auto‑start‑stop
After‑sales Service
12‑month warranty for the whole machine. We supply long‑term online technical support and spare‑parts service. Overseas engineer service can be arranged on request.
