Product Overview

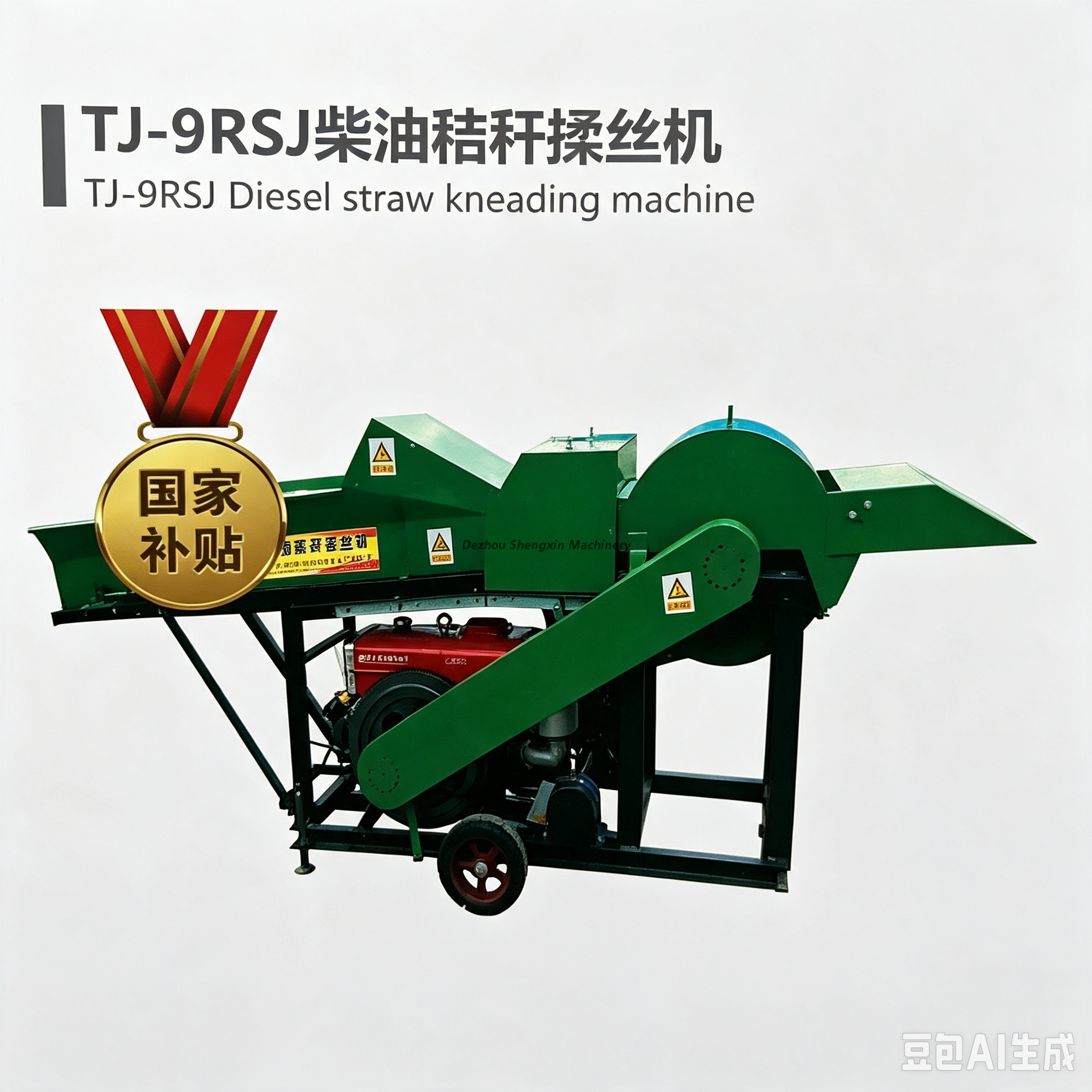

The TJ‑9RSJ diesel‑powered straw kneading machine is our upgraded mobile‑type agricultural forage‑processing machinery, specially designed for on‑site crushing, shredding and kneading of crop straw in farmland.

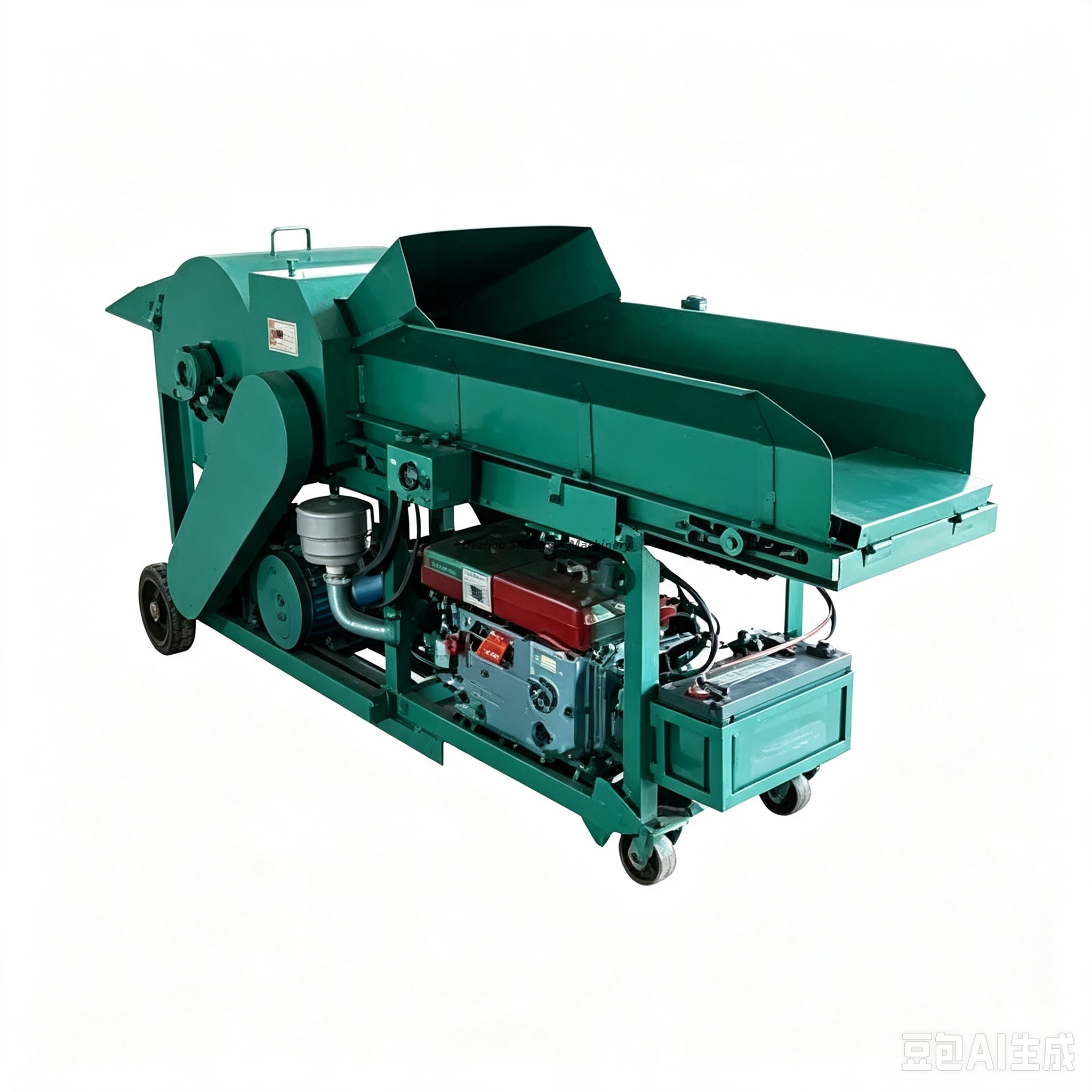

Equipped with a powerful 24‑horse‑power independent diesel engine, the machine gets rid of restrictions from external power cables. You can carry out straw processing work in remote pastures, mountain‑side farms and field‑operating zones with no accessible electricity.
After being processed by this equipment, thick and rigid corn stalks, wheat straw, peanut vines, alfalfa grass, sorghum stalks and hay will be turned into soft, filament‑shaped fine forage. The fluffy kneaded‑type feed is easy for cattle, sheep, goats and other ruminant livestock to chew and digest.
It is also the ideal front‑end processing machine for straw baling machines, straw briquette machines and full‑set straw recycling production lines.
Main Technical Specification
Equipment Model：TJ‑9RSJ
Supporting Power：24 HP Single‑cylinder Heavy‑duty Diesel Engine
Rated Production Capacity：4–6 Tonnes Per Hour
Quantity of Hammer Blades：72 Pieces of Wear‑resistant Alloy Hammer Blades
Main Shaft Rotating Speed：2280 r/min
Overall Moving Structure：Heavy‑duty movable wheel‑type base
Feeding Mode：Automatic conveyor belt feeding
Suitable Raw Materials：Corn stalk, wheat straw, hay, alfalfa, peanut vine, bean stalk and crop waste
Whole‑machine Weight：6000 KG
Working Environment：Suitable for outdoor field operation, pasture and breeding‑farm workshop
Outstanding Product Advantages
1. Independent Diesel Drive, Free From Power‑Supply Limits
Built‑in high‑output diesel engine, no need to connect industrial‑electricity cables. Farmers can transport the machine to crop‑growing areas and process straw right on the spot, greatly cutting down raw‑material‑transport labour costs.
2. Upgraded Alloy Hammer Blades, Excellent‑Kneading Effect
72 pieces of thickened alloy hammer blades conduct high‑speed smashing and rubbing. Hard straw fibres are fully torn into soft silk‑like forage. The finished material is fluffy and palatable, improving livestock feed intake.

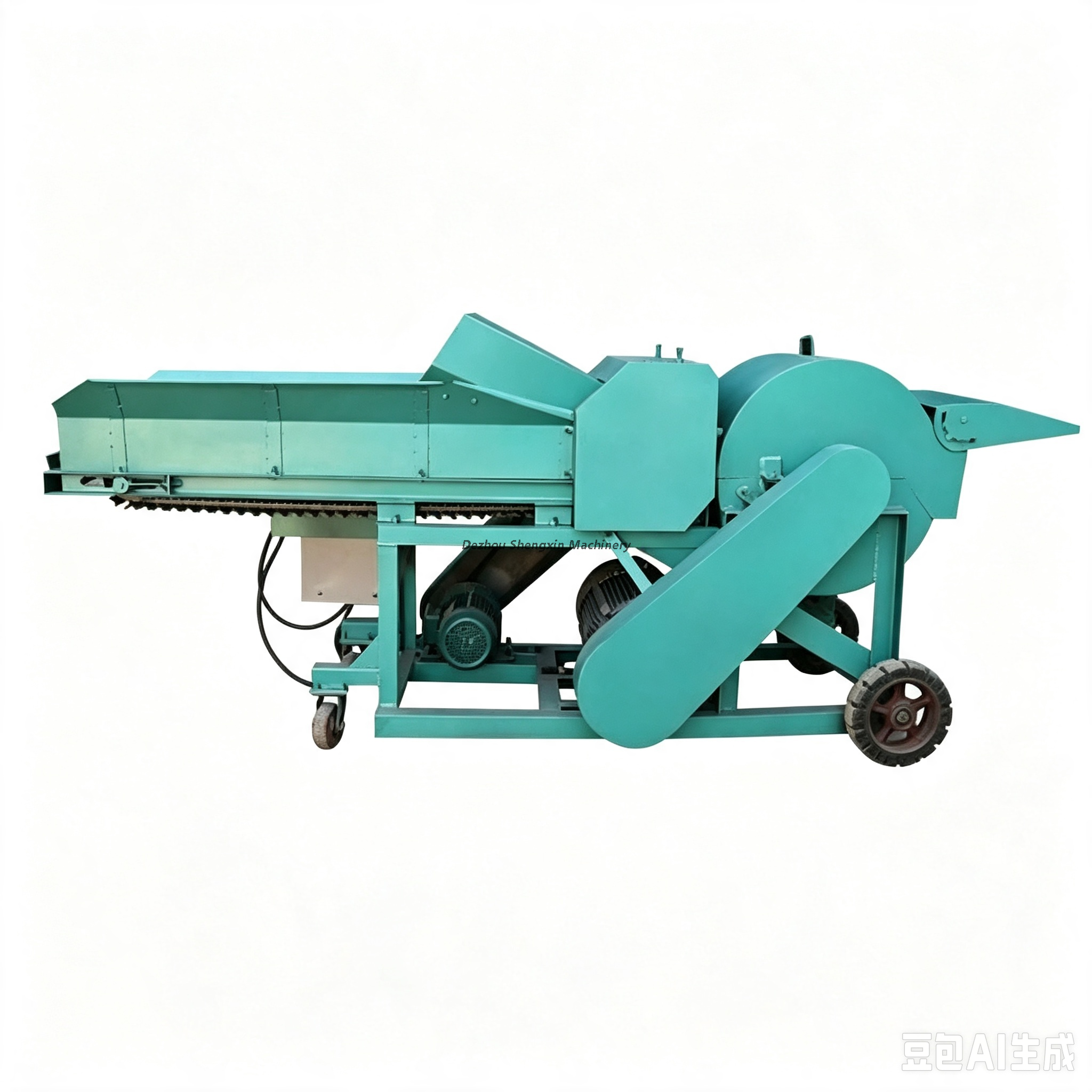

3. Wheeled Portable Structure, Flexible Movement
The heavy‑duty trolley‑type frame matches thick‑solid moving wheels. Operators can push or tow the machine freely between farmland, storage yards and livestock‑raising zones.
4. Conveyor‑Belt Automatic Feeding, Labour‑saving Operation
Long‑distance feeding conveyor belt helps workers put straw materials into the machine safely, avoiding direct contact with the high‑speed‑rotating rotor and greatly lowering operating risks.
5. Thickened Welded Steel Frame, Strong Shock Resistance
The main body adopts thick‑plate all‑welded structure, capable of enduring long‑time heavy‑load crushing work. The machine runs smoothly, generates low vibration and keeps a low breakdown rate in long‑term farm work.
6. Wide Compatibility for Multiple Agricultural Raw Materials
Not only fit for conventional corn and wheat straw, it also processes various forage grass, vines and agricultural leftovers, meeting diverse feeding‑processing demands of livestock farms.
7. Easy‑access Maintenance and Replaceable Wearing Parts
The open‑type rotor cabin design makes blade replacement, bearing inspection and daily cleaning simple. We keep abundant spare‑part stock for hammer blades, belts and engine accessories.
Main Application Fields
Large‑scale cattle, sheep and goat breeding farms
Mobile straw processing work in outdoor farmland
Complete straw‑crushing‑and‑baling production‑line matching equipment
Agricultural waste resource‑recycling projects
Pasture grass and alfalfa deep processing
Family‑run farms, agricultural cooperatives and pasture processing stations
Factory‑Supplied After‑sales Service
100% factory direct sale with competitive ex‑factory price, no middle‑man markup
We support personalized customization on power, feeding length and finished‑material thickness
Detailed‑version English operation manual, machine structure drawing and maintenance guidance are provided
Online technical guidance for installation, debugging and common‑fault troubleshooting
Long‑term‑time spare‑parts supply for wearing components
Professional one‑on‑one consultation for your whole straw‑processing‑line layout
