Product Overview

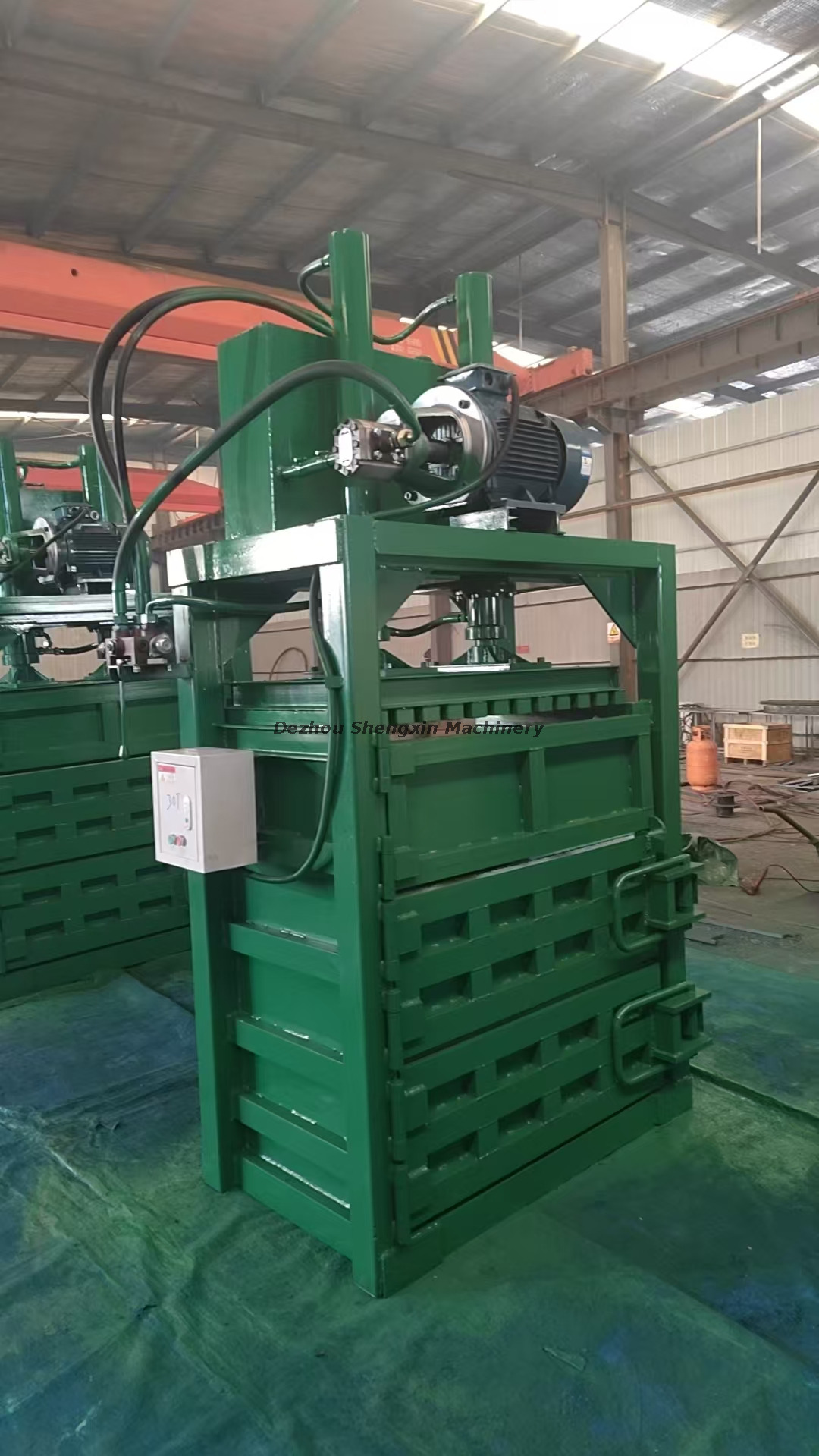

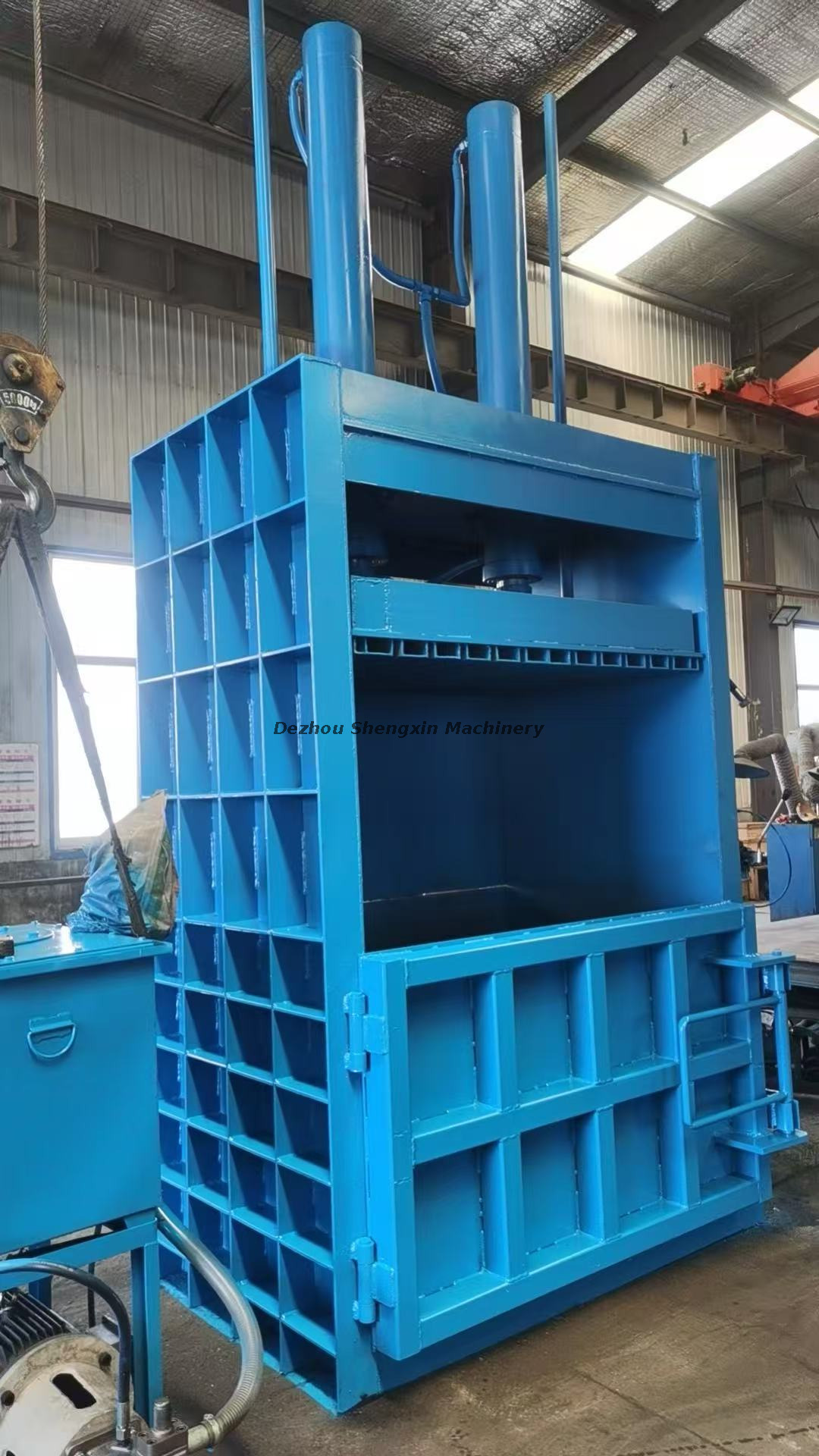

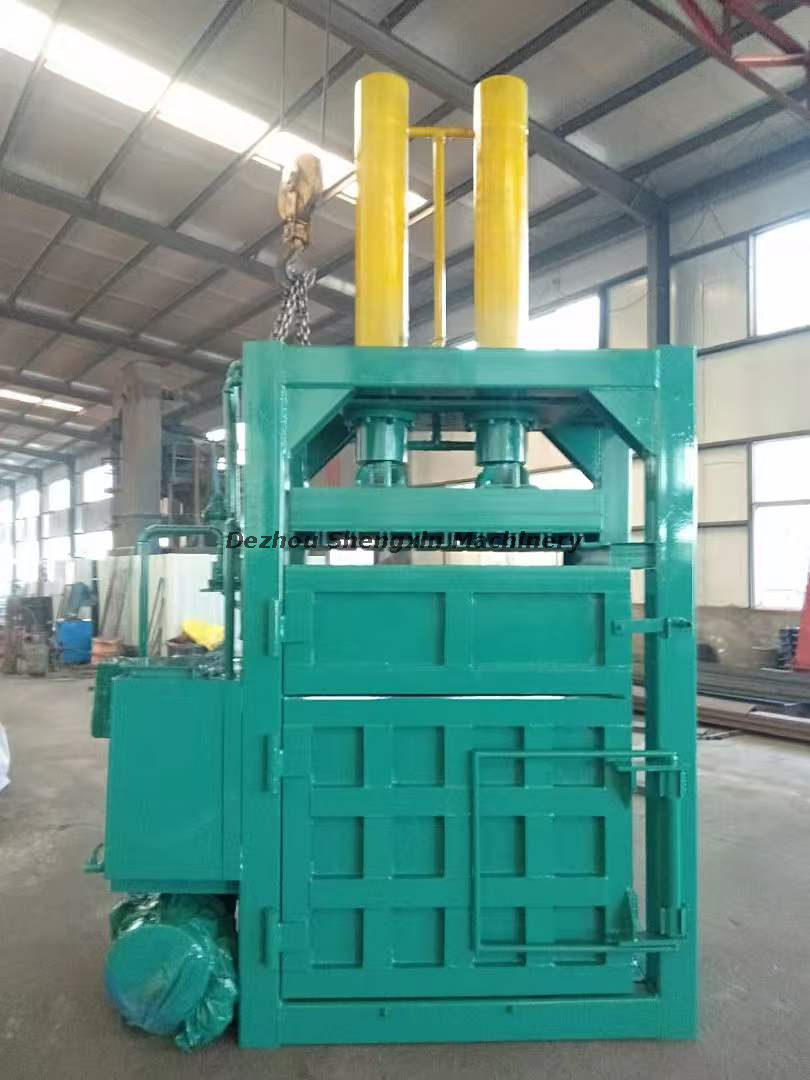

SX‑V20 20‑Ton vertical hydraulic baler is independently developed small‑sized manual‑type compression equipment designed by Dezhou Shengxin Machinery. It is mainly applied to compress waste cardboard, PET plastic bottles and loose textile‑fiber scraps.
Many small‑scale recyclers, supermarkets and packaging factories are troubled by bulk waste materials. Uncompressed waste occupies a lot of warehouse area and brings high transportation costs. Our vertical baler solves this problem perfectly.Under stable 20‑ton hydraulic pressure, scattered waste materials are pressed into high‑density bales with size of 600mm×450mm×300mm, each finished bale weighs 5‑8kg.The overall dimension of this machine is 1000×800×2600mm. Its compact structure takes up little workshop space. The whole machine adopts thickened steel‑plate full‑penetration welding, total weight reaches about 800 KG.It is equipped with a 7.5‑KW industrial‑grade motor and 140/950 heavy‑duty hydraulic cylinder. The manual‑valve control‑mode greatly reduces failure rate. Even workers without rich operating experience can use it proficiently.This vertical baler is widely welcomed by small‑recycling stations, supermarket waste‑collection points and plastic‑waste processing factories from Southeast‑Asia, Russia and African countries.
Core Component Configuration
Main Hydraulic Cylinder: Model 140/950, provides steady 20‑ton pressing‑force, adopts seamless steel tube and imported sealing parts to prevent oil‑leakage;
Driving Motor:7.5‑KW, 380V‑50Hz‑3‑phase low‑noise motor with stable power‑output;
Hydraulic‑Oil Tank:150‑liter large‑capacity oil‑tank, with good heat‑dissipation performance for long‑time continuous‑cycle operation;
Control Assembly: Manual hydraulic‑valve group, cancel complicated PLC program, effectively reduce later‑period breakdown;
Whole‑Machine Frame: Thickened steel‑plate welded frame, anti‑deformation under long‑time heavy‑load working;
Moving Condition: Light‑weight design, you can transport the whole machine easily by forklift.
Core Advantages
Space‑Saving Compact‑Structure
Overall dimension is 1000×800×2600mm. It can be placed in narrow‑size workshops. Flat ground is enough for installation without complicated foundation construction, which saves your infrastructure‑investment.
Stable Manual‑Control Design
We select well‑known‑brand hydraulic spare‑parts. Compared with full‑automatic PLC‑type balers, manual‑valve‑controlled structure has fewer vulnerable parts. Daily maintenance only needs regular hydraulic‑oil replacement, which cuts your long‑term maintenance‑cost greatly.
High‑Density Compression Outcome
After 20‑ton hydraulic squeezing, finished bales are tight and solid. The 600×450×300‑mm briquettes will not fall apart during stacking, loading and long‑distance sea‑transportation.
Flexible Production Matching
You can adjust compressing time according to different raw‑materials, so you can control bale weight between 5‑8‑kilograms freely to match your local market‑demands.
Budget‑Friendly Factory‑Direct‑Sale Price
We are original Chinese manufacturer without middle‑men. Our factory‑direct price is only 11000 RMB. It is the most cost‑effective baling‑machine choice for start‑up waste‑recycling projects.
Detailed Technical Parameter
| Item | Specification |
| Product Model | SX‑V20 Vertical Hydraulic Baler |
| Total Pressing‑Force | 20 Ton |
| Installed Motor Power | 7.5 KW |
| Hydraulic Cylinder Model | 140/950 |
| Finished Bale Size | 600mm × 450mm × 300mm |
| Overall Machine Dimension | 1000×800×2600mm |
| Hydraulic‑Oil Tank Volume | 150 Liters |
| Single Bale Weight | 5‑8 KG |
| Whole‑Machine Weight | 800 KG |
| Control Mode | Manual Hydraulic‑Valve Operation |
| Working Voltage | 380V / 50Hz / 3‑Phase |
| FOB Factory Price | 11000 RMB |
| Applicable Raw‑Materials | Waste Cardboard, PET Plastic Bottles, Textile Fiber Waste |
Working Steps

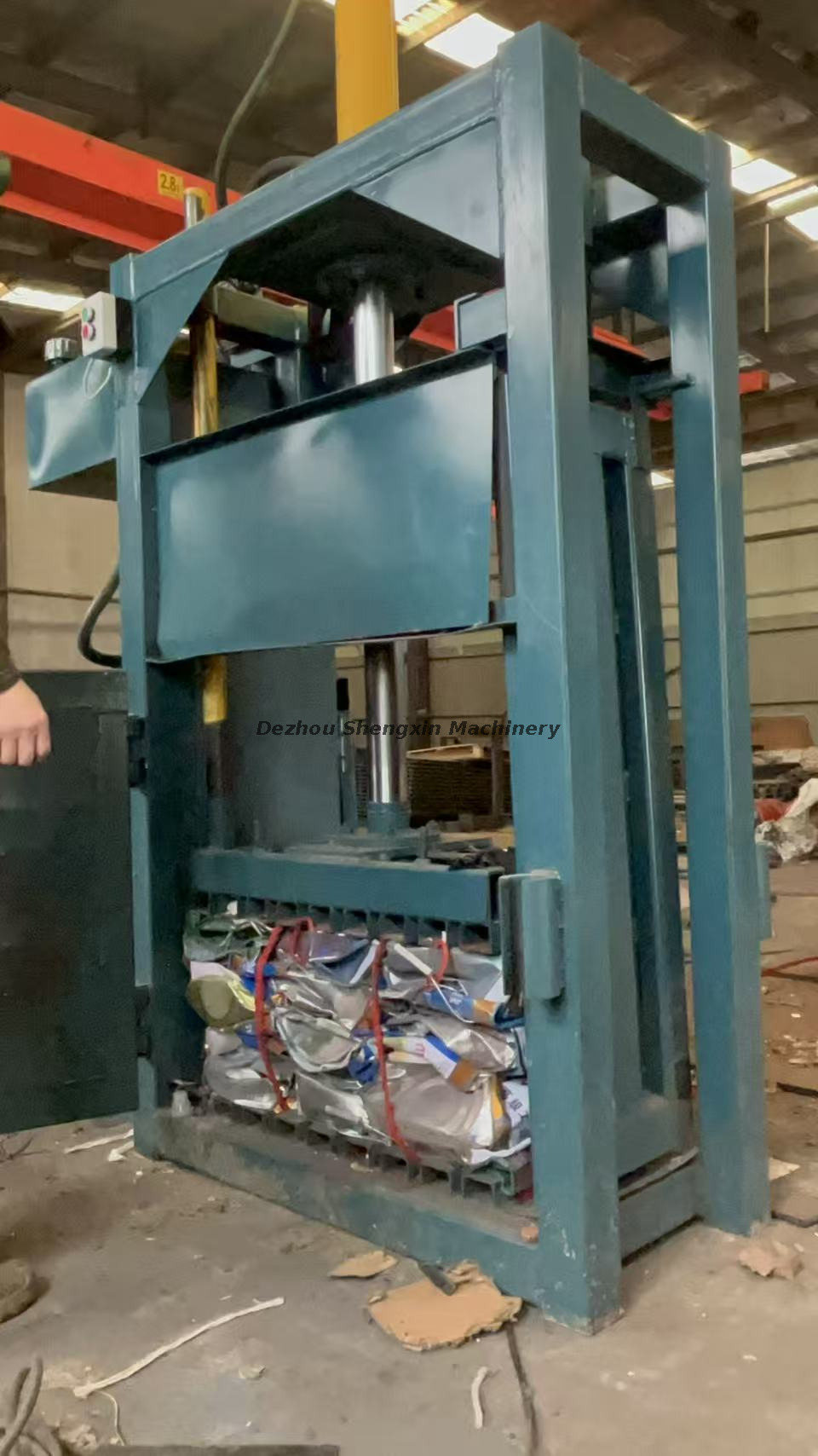

Workers put waste cardboard or plastic‑bottles into the feeding chamber manually;
Operate the hydraulic‑valve switch, the main cylinder goes down and compresses waste materials tightly;
Finish compression, lift the cylinder up; open the side‑door and take out compact finished‑bales;
Stack the bales neatly for subsequent sale or export shipment.
Application Scope
Our SX‑V20 vertical baler fits perfectly for these application‑scenarios:
Supermarket and shopping‑mall packaging‑waste collection stations;
Small‑scale cardboard and plastic‑bottle recycling yards;
Textile factory fiber‑waste processing workshops;
Packaging‑factory leftover‑material disposal sites.
After compression, the occupied‑space of waste materials reduces by about 60‑70%, which greatly lowers your ocean‑freight and warehouse‑storage expense.
Strict Export‑Packing & Safe Global Shipment

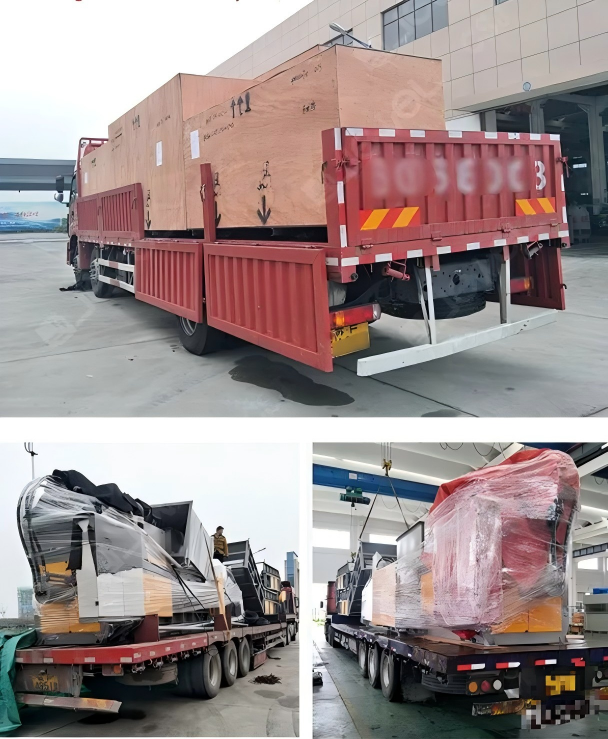

We follow international export‑standard for package‑processing:The whole machine is wrapped with thick anti‑scratch plastic‑film; hydraulic cylinder, motor and valve‑components are packed with solid plywood‑cases to avoid collision damage during long‑sea‑journey.Our experienced workers use forklift to load machines into shipping containers and fix the equipment firmly.We provide multiple trade‑terms including FOB Qingdao, CIF, CFR and DDP‑door‑to‑door delivery for global buyers.Once goods depart from Qingdao port, we will send you full‑set clearance‑documents including bill of lading, packing list and commercial‑invoice timely, and track shipment‑status until the machine arrives safely.
Our After‑Sales Commitment
We supply formal English‑version operation manual, circuit diagram and installation drawings for your reference;
Our professional engineering‑team provides online video‑guidance for machine installation, commissioning and daily maintenance;
We offer 1‑year whole‑machine warranty from shipment‑date. Hydraulic cylinder and driving‑motor are covered within warranty‑period;
After warranty expires, we provide all spare‑parts at factory‑cost price permanently;
If you need, our engineers can go to your factory for on‑site installation‑training upon negotiation.
About Our Factory

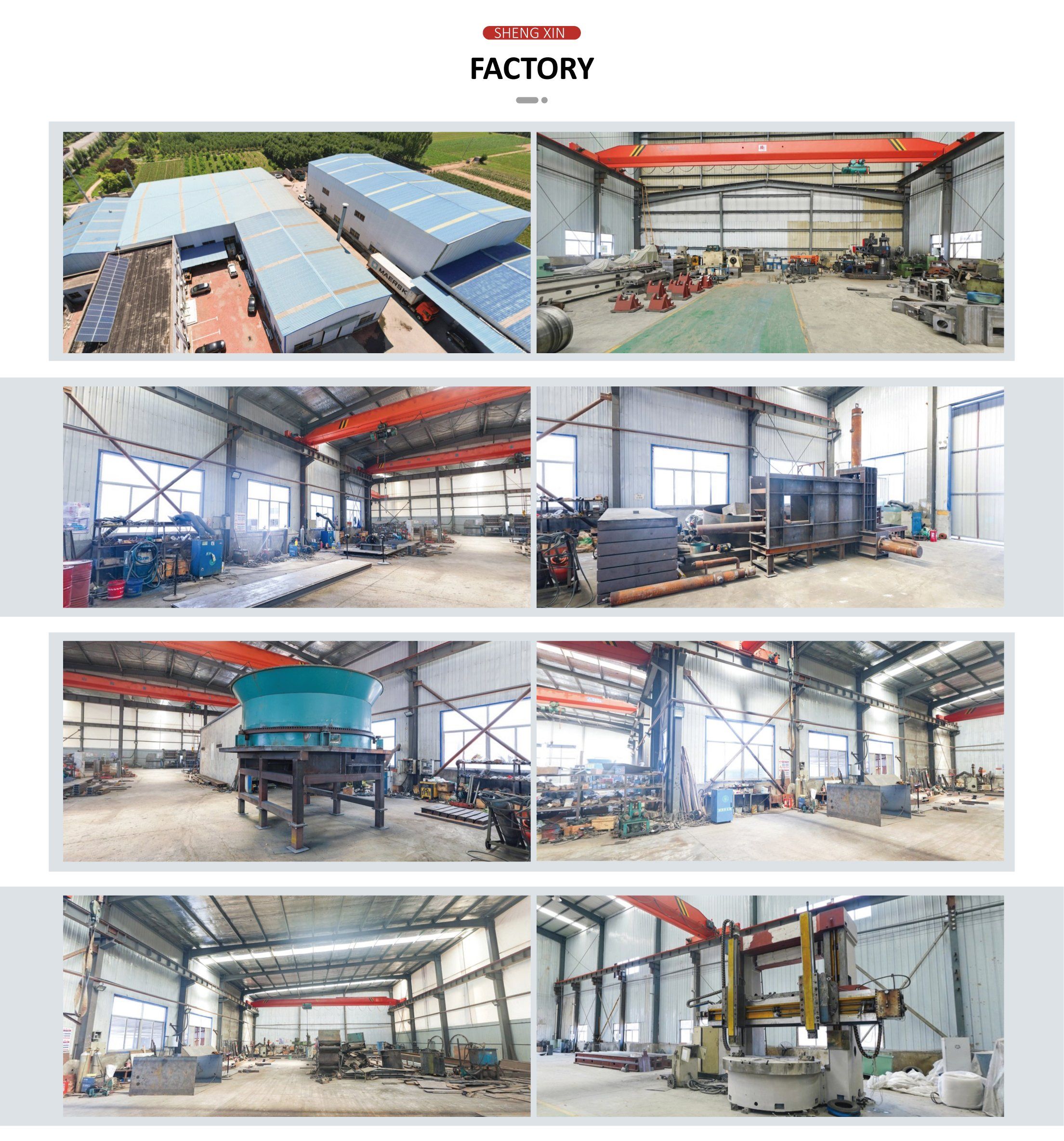

Dezhou Shengxin Machinery Equipment Co., Ltd is a professional Chinese manufacturer engaged in hydraulic balers, metal‑shearing machines and chain‑plate conveyors.We own standardized production workshops and CNC processing‑equipment, with more than 10‑years‑of‑experience in waste‑recycling machinery production.Apart from standard‑type vertical balers, we can customize feeding‑box size, bale dimension and local‑standard voltage as your requests.Our recycling‑machines have been exported to Russia, Belarus, South‑Africa, Southeast‑Asia and South‑American markets for many years.If you have any questions about machine selection or project planning, please feel free to contact us, we will provide you with reliable and practical solutions.
