Product Overview

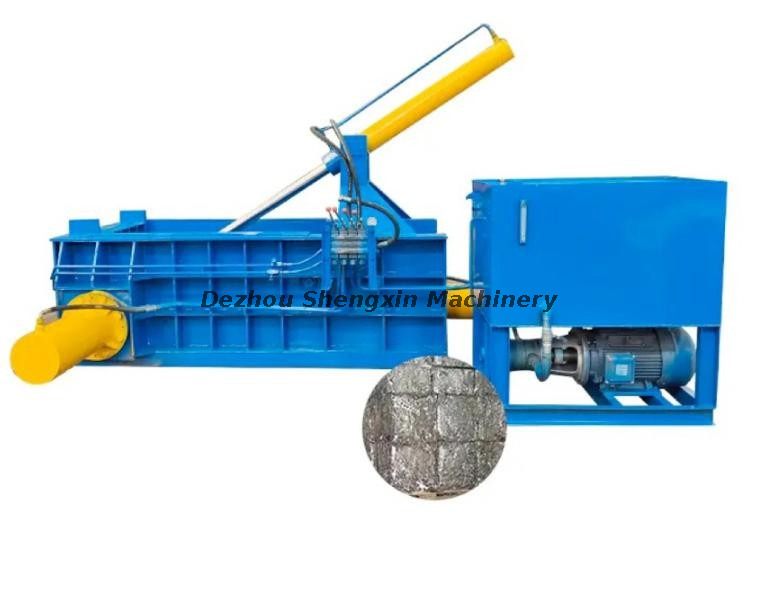

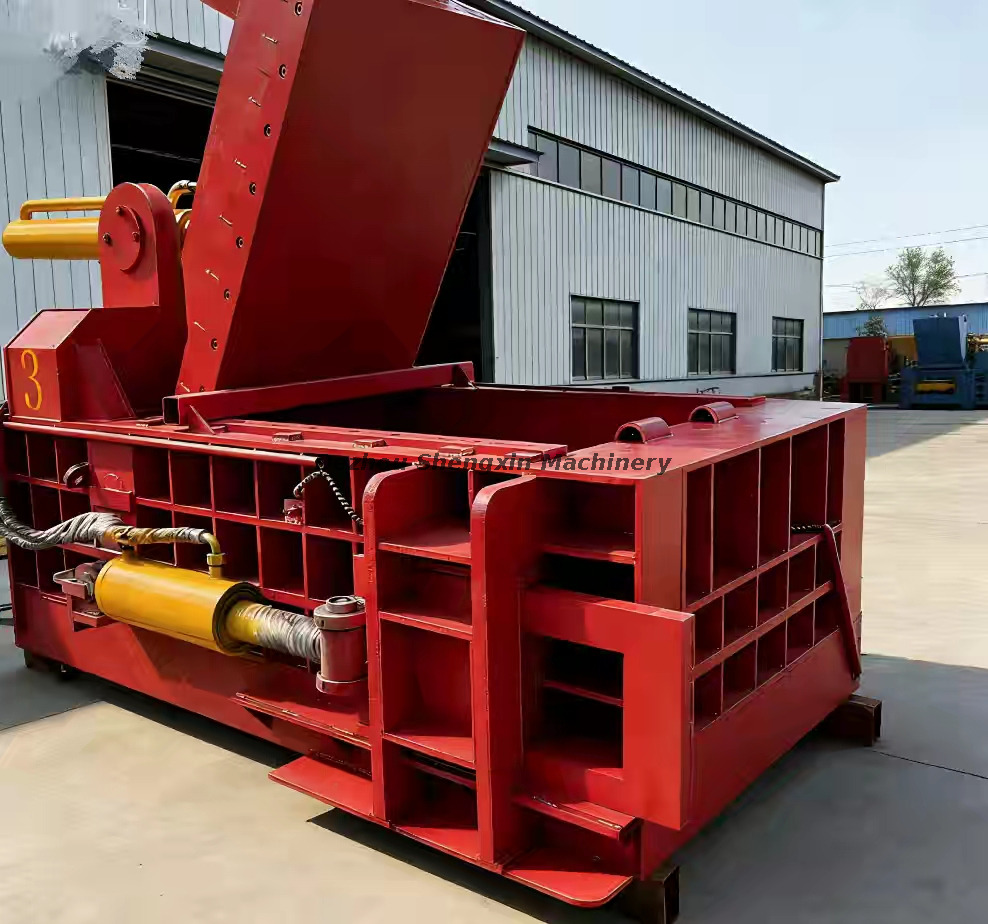

SX‑250T hydraulic metal briquetting press is heavy‑duty hydraulic‑driven equipment independently developed for metal recycling projects.A great number of metal recycling factories are troubled by loose metal scraps such as aluminum shavings, iron filings and copper chips. Bulk‑form materials occupy large‑scale warehouse space and bring high‑cost for long‑distance transportation. Our 250‑ton metal briquetting machine perfectly solves these problems.The feeding box internal dimension is 900×1400×600 mm. After extrusion under 250‑ton high pressure, loose metal scraps are pressed into solid 300×300×300‑mm blocks. Each briquette has high density and will not break apart during stacking and transit.The whole machine is welded with thick‑wall steel plates through full‑penetration welding process. Total machine weight reaches about 10 tons. Even under long‑time continuous high‑pressure working, the frame will not deform. This machine adopts manual‑control mode and fits well for medium‑sized scrap yards and metal‑chip processing workshops.
Complete Hydraulic Cylinder Configuration
Two main side‑mounted cylinders: model 325/260/150, undertake main extrusion work;
One bottom push‑out cylinder: model 273/220/125, pushes finished metal blocks out from the chamber;
One top cover cylinder: model 168/140/95, compresses materials from upper position for higher density;
One tipping‑up cylinder: model 146/125/50, fitted with wear‑resistant lining plate and locking structure. The lining plate can effectively reduce abrasion caused by hard metal scraps and extend cylinder service life.
All hydraulic cylinders adopt seamless steel tube and well‑known brand internal sealing parts, which greatly reduce oil‑leak failure and prolong service life of hydraulic components.
Power‑Drive System
Main driving unit: one set of 30‑KW 4‑pole electric motor with stable output and low noise;
Hydraulic pump: 180‑model high‑pressure oil pump matched with the whole hydraulic system;
Control unit: manual hydraulic valve group. Workers can finish feeding, compressing and material‑ejection by operating valve switches simply;
Oil‑tank: 600‑liter large‑capacity oil‑tank. It has good heat‑dissipation performance and effectively prevents hydraulic‑oil over‑heating during non‑stop running.
The internal pipeline layout is reasonably arranged to reduce pressure loss of hydraulic oil and improve overall working efficiency.
Core Advantages
Reliable Heavy‑Duty Structure
Thickened welded steel frame and high‑strength cylinders adapt to long‑term heavy‑load working environment. The whole machine is sturdy and durable, greatly lowering later‑period failure probability.
Simple Manual Operation
This manual‑valve‑controlled design avoids complicated PLC faults. It is easy‑to‑learn for operators, saves your labor‑training cost.

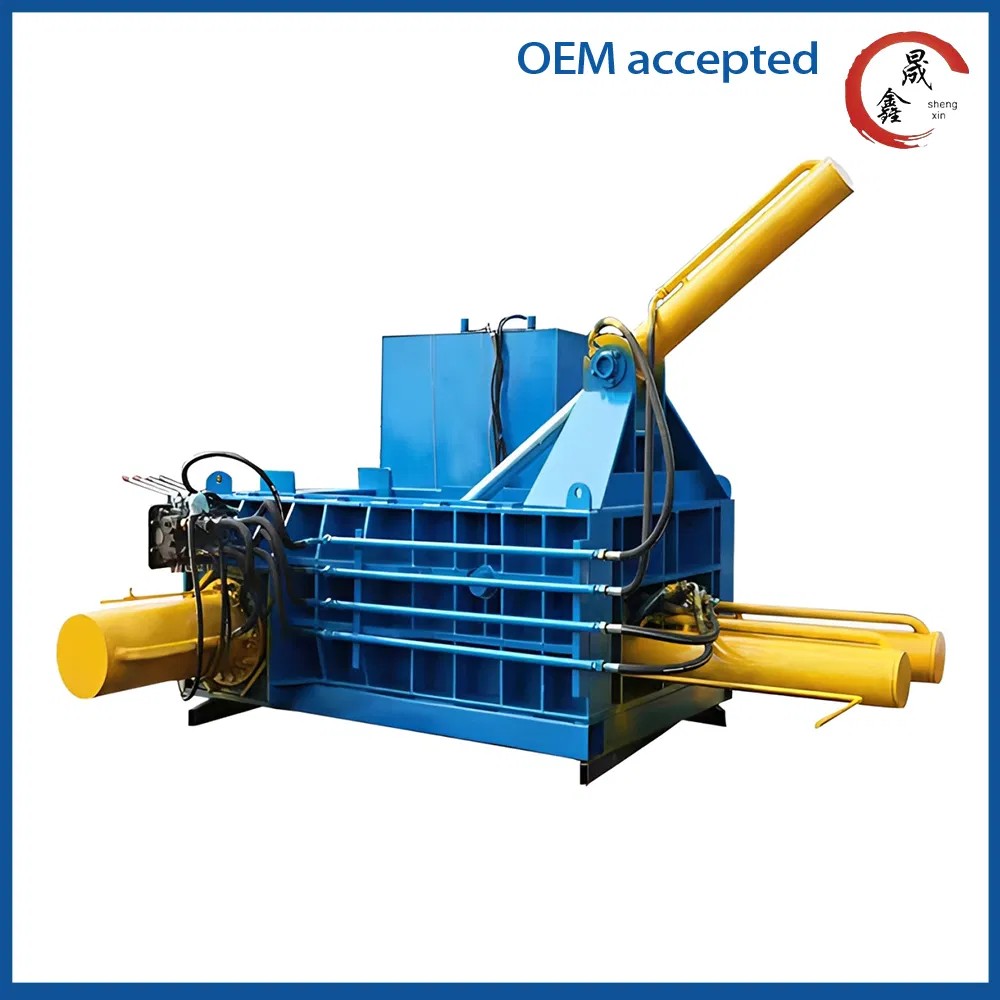

Customized Service Available
We can adjust feeding‑box size, finished block dimension and cylinder thrust according to your raw‑material conditions. If you need fully‑automatic PLC‑controlled version, we also provide upgraded schemes.
Low‑Maintenance Design
Wearing parts are standardized for easy replacement. Daily maintenance only includes hydraulic‑oil replacement and bolt‑tightening inspection without complex work.
Compact Layout
The overall structure is reasonably designed, it does not require complicated foundation construction, you only need flat ground to finish installation.
Detailed Technical Parameters
| Items | Specifications |
| Product Model | SX‑250T Metal Briquetting Machine |
| Total Pressing Force | 250 Ton |
| Feeding Box Size | 900mm × 1400mm × 600mm |
| Finished Block Size | 300mm × 300mm × 300mm |
| Side‑Main Cylinder | 2pcs 325/260/150 |
| Bottom‑Push Cylinder | 1pc 273/220/125 |
| Cover Cylinder | 1pc 168/140/95 |
| Tipping‑Up Cylinder | 1pc 146/125/50 with lining plate & lock |
| Main Motor | 30KW 4‑Pole Motor |
| Hydraulic Pump | 180‑Model Oil Pump |
| Control Mode | Manual Hydraulic Valve Operation |
| Oil‑Tank Volume | 600 Liters |
| Overall Machine Weight | Around 10000KG |
| Applicable Raw‑Materials | Aluminum Chips, Iron Scraps, Copper Filings |
Working Process

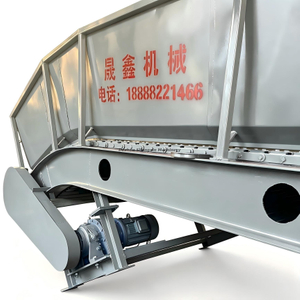

Workers put loose metal scraps into the feeding box manually or with matched chain‑plate conveyor;
Operate hydraulic valve, side‑mounted main cylinders push forward to compress metal materials;
After compression finishes, top‑cover cylinder resets; bottom‑push cylinder pushes out compact metal blocks;
Finished high‑density metal briquettes can be stacked directly for subsequent sales or export transportation.
Application Scope
Our SX‑250T metal briquetting machine is widely used for these fields:
Scrap‑steel recycling yards;
Aluminum‑alloy processing factories;
Copper chip and metal powder processing workshops;
Waste‑metal resource recovery projects.
After compression, metal scraps reduce 60‑70% of occupied space and cut your freight costs largely.

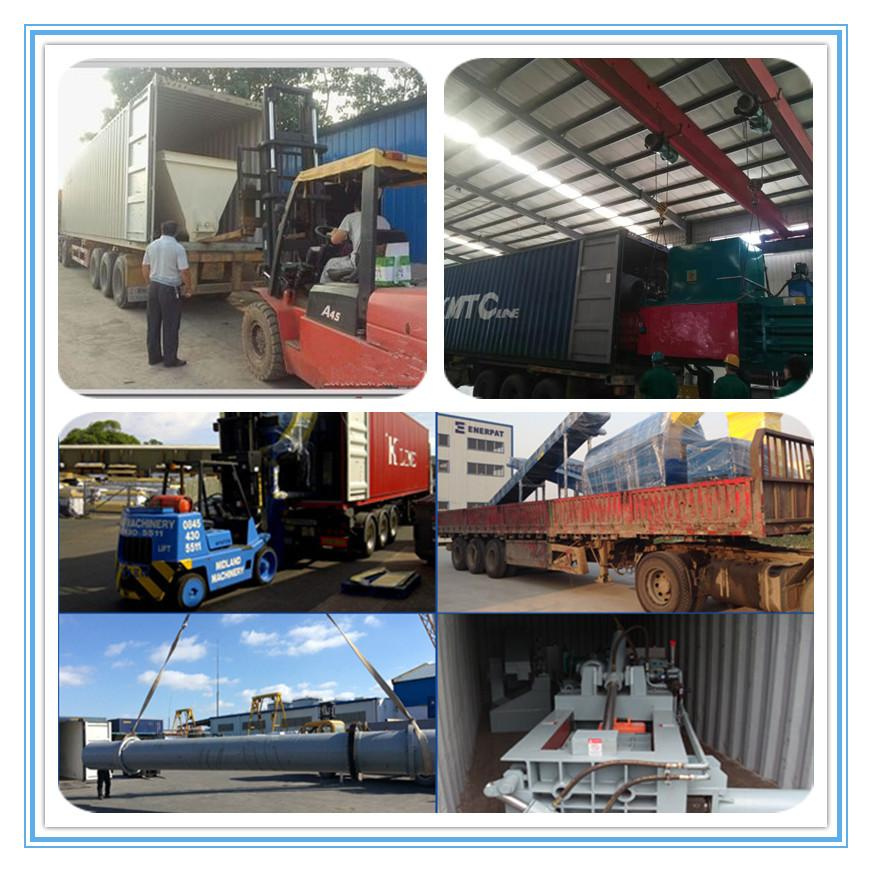

Strict Export‑Packing & Safe Global Shipment
Our hydraulic briquetting machines follow international export‑packing standards.
The whole unit is wrapped with thick anti‑scratch plastic film. Critical components like hydraulic cylinders, motors and valve assemblies are packed with sturdy plywood cases to avoid collision damage during long‑term sea transit.
We adopt forklifts and heavy‑duty cranes for container loading. Our staff supervise the whole loading process to fix the machine firmly inside shipping containers.
We support FOB Qingdao, CIF, CFR and DDP trade terms. Our equipment can be delivered to Russia, Belarus, South‑Africa, Southeast‑Asia and South‑American ports.
Once goods depart from Qingdao port, we will send you full set of shipping documents including bill of lading, packing list and commercial invoice timely, and track shipment until machines arrive safely.
Our After‑Sales Commitment
We provide formal English‑version operation manual, circuit diagrams and installation drawings for your reference;
Our professional technical team provides online video‑guidance for machine installation, commissioning and daily maintenance;
1‑year full‑machine warranty from shipment date; hydraulic cylinders, motor and hydraulic pump are covered during the warranty period;
After warranty expires, we supply all spare‑parts at factory‑cost price permanently;
Overseas on‑site installation and technical training can be arranged if you require.

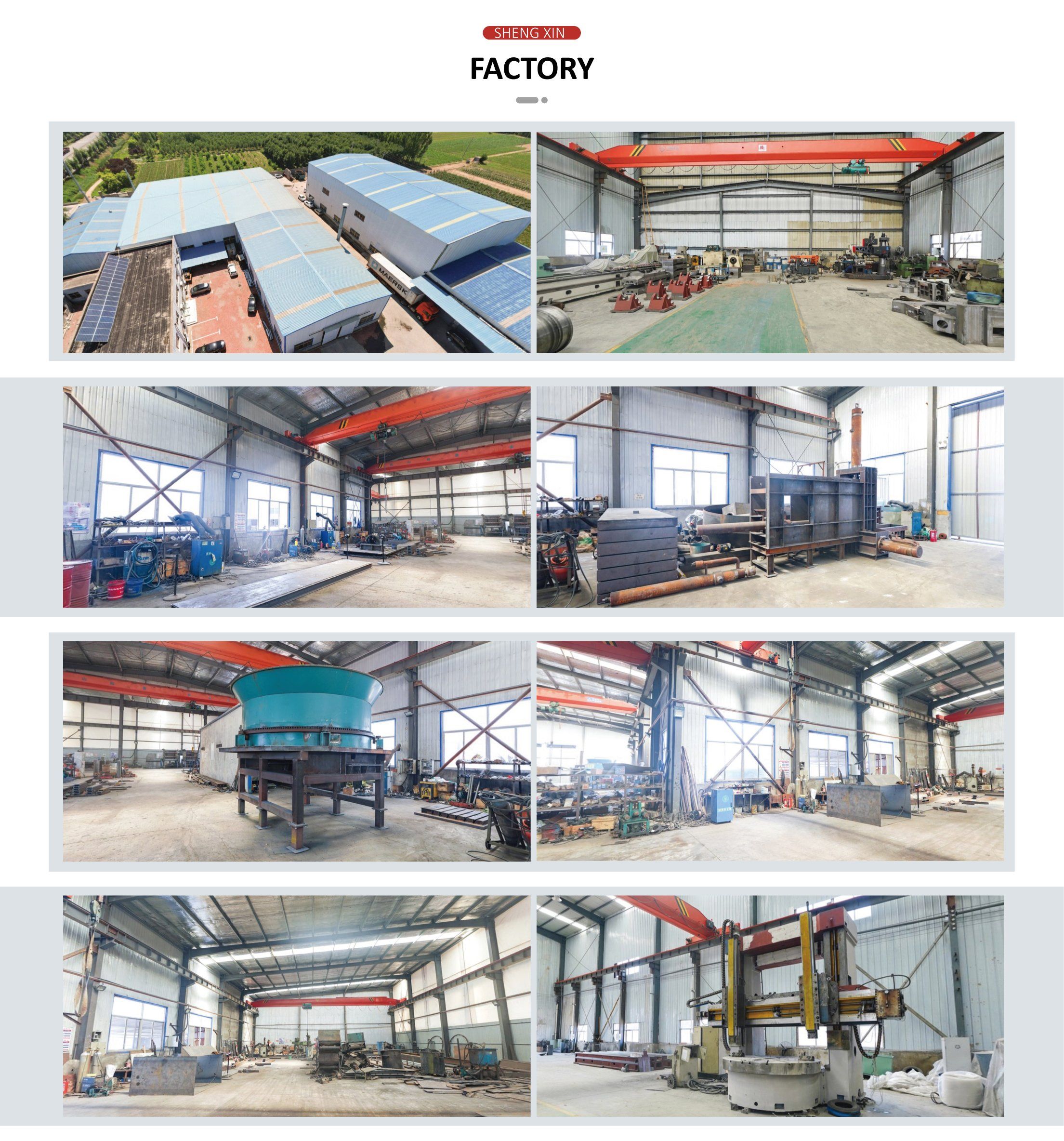

About Our Company
Dezhou Shengxin Machinery Equipment Co., Ltd is a professional Chinese manufacturer focusing on hydraulic metal briquetting machines, crocodile shearing machines, horizontal balers and chain‑plate conveyors.We own modern workshops, CNC processing equipment and experienced engineering team with more than 10 years of experience in waste‑recycling equipment field.Apart from standard models, we provide targeted customized design according to clients’ different working‑conditions. Our metal‑processing machines have been exported to Belarus, Russia, South‑Africa, Southeast Asia and South‑American countries.If you have questions about parameter selection, matched conveyor or project planning, feel free to contact me, we will provide you with practical solutions.
