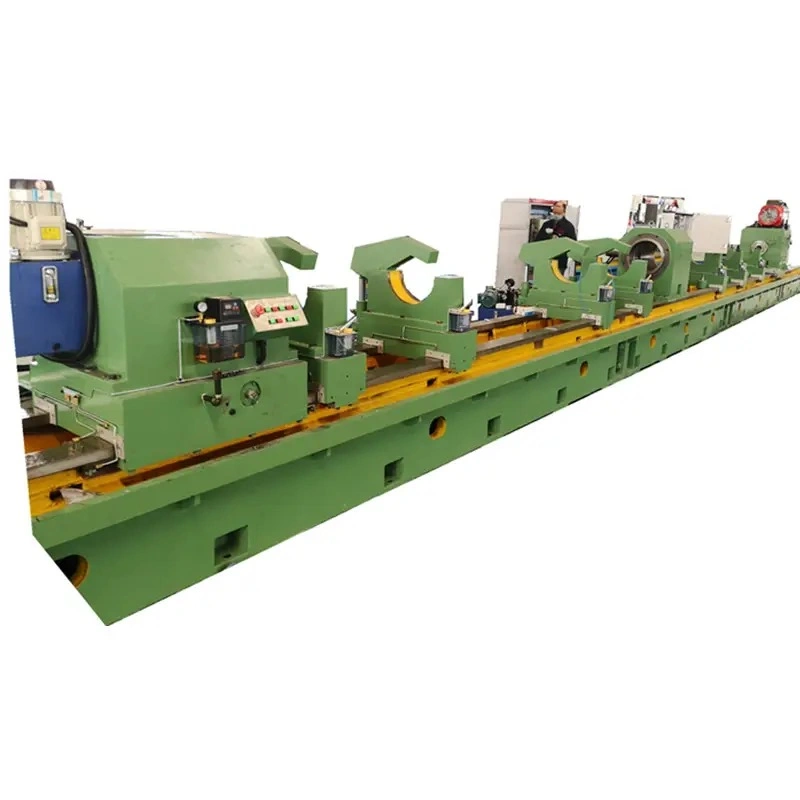

Deep Hole Drilling Machine: High Precision Heavy Duty Boring Solution

Standard CNC machining usually hits a hard wall when depth-to-diameter ratios exceed 10:1. Standard twist drills begin to deflect at this critical threshold, ruining part straightness, surface finish, and tool life. A dedicated deep hole drilling machine solves this exact manufacturing problem. It represents a specialized category of hardware designed to handle extreme ratios reaching up to 400:1. These systems excel at managing fluid dynamics, continuous chip evacuation, and intense thermal buildup. You need to know how hardware rigidity, coolant management, and kinematic configurations work together to achieve perfect concentricity. We will explore how engineering teams evaluate these elements to select the right heavy duty setup for their specific applications.

Key Takeaways

• Technology Matching: Selecting between Gun Drilling, BTA, and Trepanning depends heavily on hole diameter (from 1mm micro-holes to 200mm+ heavy duty boring) and material value.

• Straightness Guarantee: Achieving extreme straightness tolerances requires specific kinematic setups, such as counter-rotating the workpiece against the cutting tool.

• System Dependencies: A deep hole boring machine is only as reliable as its high-pressure coolant system; minimum 30-micron filtration is standard for preventing premature tool wear.

• Implementation Reality: High upfront capital and specialized operator training are required; ROI depends heavily on continuous production volume or high-value aerospace/energy part manufacturing.

Defining the Limits: When to Transition to Dedicated Deep Hole Boring

Manufacturers often push standard equipment too far before realizing they need specialized solutions. Standard vertical or horizontal machining centers rely on peck drilling to clear chips. The spindle drives the tool into the material, retracts to clear debris, and plunges again. This inefficient process fails miserably as holes get deeper. Chips pack tightly into the flutes. Heat builds up rapidly at the cutting edge. Eventually, the tool deflects off its intended center line, destroying the workpiece.

Dedicated equipment eliminates these failure points entirely. Engineers rely on precision drilling systems to maintain tight concentricity at astonishing depths. Some machines routinely bore accurate holes up to 10,000mm long. They achieve this without ever retracting the tool for chip clearance. The process uses pressurized fluid dynamics to constantly flush debris away from the cutting zone.

Furthermore, true deep hole manufacturing goes beyond simple drilling. Producing a finished cylinder or aerospace strut often requires secondary operations performed on the same machine bed. Moving heavy workpieces introduces setup errors. To achieve final tolerances without moving the part, operators utilize several advanced techniques:

1. Pull Boring: The operator pushes a boring bar completely through a pre-drilled hole, attaches a cutting head to the far end, and pulls it back. This tension-based cutting method naturally straightens the bore axis.

2. Skiving: A specialized tool shaves a thin layer of metal from the inner diameter. This process guarantees exact dimensional sizing while removing minor surface defects.

3. Roller Burnishing: Hardened rollers compress the inner metal surface. This cold-working process drastically improves surface finish and hardens the material against wear.

Best Practice: Always evaluate your required depth-to-diameter ratio. If your blueprint demands a ratio exceeding 20:1, transition immediately to dedicated deep hole equipment to avoid excessive scrap rates.

Evaluating Core Technologies: Gun Drilling vs. BTA vs. Trepanning

Choosing the correct drilling technology depends entirely on your target hole diameter and material value. Industry professionals divide deep hole techniques into three distinct categories. You must match the core technology to your specific part geometry.

Precision Gun Drilling (Small to Medium Diameters)

Gun drilling dominates the micro to medium hole market. Tooling diameters typically range from 1mm up to 50mm. The mechanism relies on high-pressure internal coolant delivery. Fluid travels through a tiny channel inside the drill body straight to the cutting edge. The fluid forces metal chips back out along an external V-shaped flute cut into the tool shaft. Medical implants, fuel injectors, and mold cooling channels rely heavily on this process. It delivers excellent straightness for narrow profiles.

BTA Drilling

BTA (Boring and Trepanning Association) technology scales up where gun drilling leaves off. Heavy duty boring applications use BTA for diameters of 20mm and above. The fluid mechanics reverse entirely compared to gun drilling. Coolant pumps into the hole around the outside of the drill tube. The pressure forces chips inside the hollow drill tube and evacuates them out the back of the spindle. This internal chip evacuation eliminates peck drilling completely. It drastically improves material removal rates. Large hydraulic cylinders, defense components, and heavy industry shafts require BTA processing.

Trepanning (Large Diameter & Material Recovery)

Trepanning offers a unique mechanical advantage for massive diameters. Instead of reducing all the target material into small chips, a trepanning tool cuts a continuous cylindrical slot. It leaves a solid material core in the center. This approach requires significantly less machine spindle power. Manufacturers gain a massive advantage when machining expensive exotic alloys like titanium or Inconel. They can recover the solid core and reuse it for other parts, preventing immense material waste.

Machine Kinematics: How Rotation Impacts Precision Drilling

The relative motion between the cutting tool and the workpiece dictates your final bore quality. A deep hole boring and drilling machine achieves incredible straightness by manipulating rotation. Engineers classify kinematics into three distinct setups.

Workpiece Rotation (WR)

In this setup, the tool remains completely stationary while the workpiece rotates rapidly. The spinning mass naturally forces the cutting edge to seek the center axis. This gyroscopic effect naturally corrects minor tool drift. Workpiece rotation works perfectly for symmetrical, balanced parts like solid shafts or cylindrical billets.

Tool Rotation (TR)

Sometimes you cannot safely spin the workpiece. Asymmetrical, heavy, or irregularly shaped castings require Tool Rotation setups. The workpiece clamps securely to the table. The tool rotates and feeds into the material. Because you lack the self-centering effect of a spinning workpiece, tool drift increases. You must use extreme care guiding the tool through precision bushings to maintain straightness.

Counter-Rotation (Dual Motion)

Counter-rotation represents the gold standard in deep hole manufacturing. Both the workpiece and the tool rotate simultaneously but in opposite directions. This dual motion cancels out lateral deflection forces. It guarantees absolute minimum tool deflection and the highest possible straightness accuracy. Aerospace components requiring extreme precision almost exclusively rely on counter-rotation kinematics.

Common Mistake: Attempting to spin an unbalanced casting in a WR setup. This creates severe vibrations, ruins the spindle bearings, and shatters the cutting tool. Always default to TR for irregular shapes.

Hardware Assessment Criteria for Precision Machining Equipment

Procuring precision machining equipment requires a strict evaluation of physical hardware. A machine looks great on paper, but it must survive brutal industrial environments. You must assess base rigidity, fluid dynamics, and control intelligence.

Base Rigidity and Vibration Dampening

Deep hole cutting generates immense thrust forces. A weak frame bends under this pressure, compromising hole straightness. You need stress-relieved cast iron beds. Industry standard FC-32 cast iron provides excellent vibration dampening. Avoid lightweight welded steel frames for heavy duty applications. Furthermore, inspect the guideways. The machine requires hardened box ways or heavy-duty linear guides rated at HRC 60 minimum. This hardness ensures the heavy carriage slides smoothly without premature wear.

High-Pressure Coolant and Filtration Architecture

Coolant serves as the absolute lifeblood of deep hole processes. It lubricates guide pads, cools the cutting edge, and forcefully evacuates chips. BTA systems processing large diameters demand massive volumetric output, often exceeding 1000L/min. However, pressure and volume mean nothing without clean fluid. You must mandate strict 30-micron filtration systems. If microscopic metal fines recirculate into the cut zone, they wedge between the tool and the bore wall. This destroys the surface finish instantly and chips the carbide cutting edges.

Integration with Smart Controls

Modern CNC integration separates capable machines from outdated designs. Advanced controllers offer automated load monitoring. The system constantly reads spindle torque and thrust load in real-time. If a tool begins to dull, the torque spikes slightly. Smart controls detect this microscopic spike instantly. They pause the feed rate and trigger an alarm. This predictive feature prevents catastrophic tool breakage inside an incredibly expensive workpiece.

Implementation Risks and Operational Challenges

Integrating a new boring machine introduces complex operational challenges. Facility managers often underestimate the ecosystem required to keep these heavy machines running smoothly. You must prepare your production floor for strict tooling dependencies and rigorous maintenance schedules.

Tooling Ecosystem Dependency

A bare spindle cannot produce accurate holes alone. Dedicated deep hole equipment relies entirely on a specialized tooling ecosystem. You cannot use generic drill bits. Guide pads, specific carbide geometries, and custom tool tubes must match your machine specifications perfectly. Industry experts highly recommend aligning your machine procurement with top-tier tooling providers. Establishing a turnkey relationship ensures your tool geometries match your machine's horsepower and coolant delivery capabilities exactly.

Maintenance of Auxiliaries

Standard machines require basic spindle lubrication and chip clearing. Deep hole equipment demands intense attention to auxiliary systems. High-pressure coolant pumps wear out if fluid goes unfiltered. Chillers work continuously to remove heat from the massive coolant reservoirs. Magnetic chip conveyors handle tons of steel chips daily. You must acknowledge that these auxiliary systems require as much preventative maintenance as the spindle and guideways. A failed chiller stops production just as quickly as a broken spindle.

Operator Skill Gap

Setting up precision parameters for superalloys requires deep specialized knowledge. Operators must balance feed rates, spindle speeds, and fluid pressure perfectly. A slight miscalculation causes tool deflection or immediate insert failure. Address this reality early. Advocate for machines offering conversational programming interfaces. Intelligent predictive monitoring bridges the skill gap by visually guiding less experienced operators through complex parameter setups.

What to watch out for: Ignoring coolant degradation. Cutting oils lose their lubricity over time and become contaminated with tramp oil. Schedule regular fluid testing to maintain optimal cutting conditions.

Conclusion

Investing in a deep hole processing system involves much more than simply buying a stronger spindle. You are integrating a highly advanced fluid dynamic system combined with heavy-duty mechanical rigidity. Mastering this process allows you to conquer the 10:1 depth-to-diameter threshold easily. Remember these core takeaways when planning your next production setup:

• Match the technology to the application: Use gun drilling for tiny profiles, BTA for aggressive removal, and trepanning to recover expensive solid cores.

• Prioritize machine kinematics: Counter-rotation provides the ultimate straightness guarantee for cylindrical parts.

• Never compromise on coolant filtration: Mandate 30-micron filtering to protect your tools and preserve internal surface finishes.

• Anticipate the skill gap: Utilize smart controls and load monitoring to prevent expensive tool breakage caused by human error.

For your next steps, start by thoroughly auditing your part blueprints. Evaluate your specific depth-to-diameter ratios, material hardness, and tolerance requirements. Then, consult an application engineer to determine the exact kinematic configuration your facility needs.

FAQ

Q: What is the difference between a standard drilling machine and a deep hole drilling machine?

A: Standard machines use twist drills with spiral flutes to manually evacuate chips. They typically fail at depths past 10x the diameter due to chip packing. Deep hole machines use continuous pressurized fluid dynamics. They flush chips continuously, enabling processing depths up to 400x the diameter without ever retracting the cutting tool.

Q: Can standard CNC lathes or mills be retrofitted for deep hole boring?

A: Yes, for shorter runs and shallower ratios, standard CNCs can utilize gun drill tooling adapted with high-pressure coolant blocks. However, standard machines lack the necessary vibration dampening, extreme coolant volume capacities, and specific counter-rotational kinematics required for dedicated, reliable heavy-duty production runs.

Q: Why is Trepanning preferred for certain aerospace applications over BTA?

A: Trepanning removes a thin ring of material and leaves a solid center core intact. This method requires far less horsepower and generates significantly less heat. More importantly, it allows manufacturers to recycle or reuse the expensive solid core of exotic materials like titanium.

Q: How do you prevent tool deflection in deep hole drilling?

A: You prevent deflection through extreme machine bed rigidity, utilizing precision guide bushings, and maintaining perfectly balanced feed-to-speed ratios. Ideally, you should utilize a counter-rotational setup where the workpiece and tool spin in opposite directions to naturally average out lateral drift.
